Supports Multiple Peripherals
Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485, And I2C Interfaces
Application Example
for reference only, please refer to the Package Content for the detailed part list

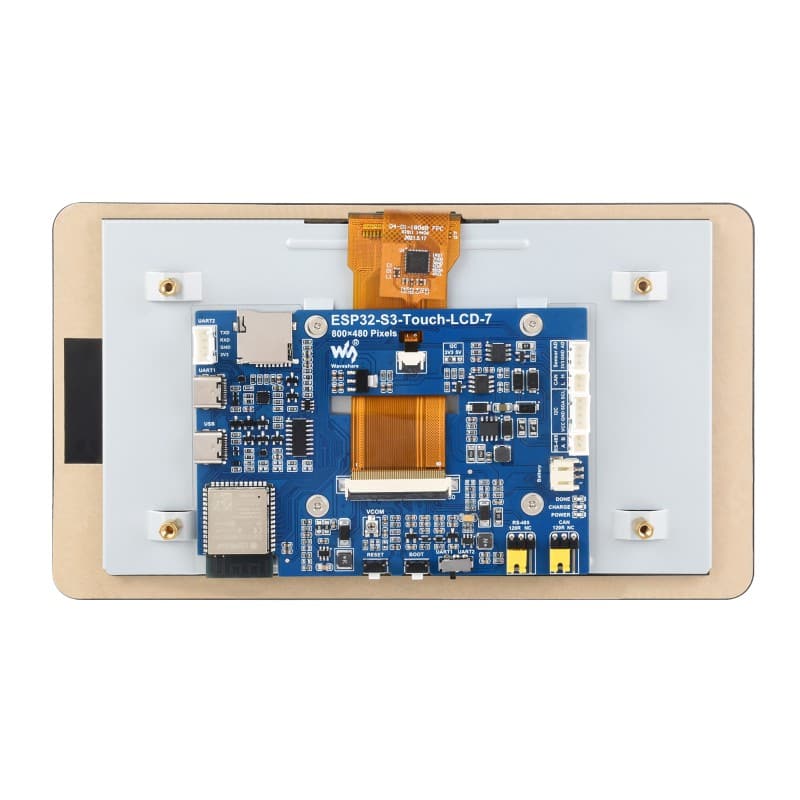

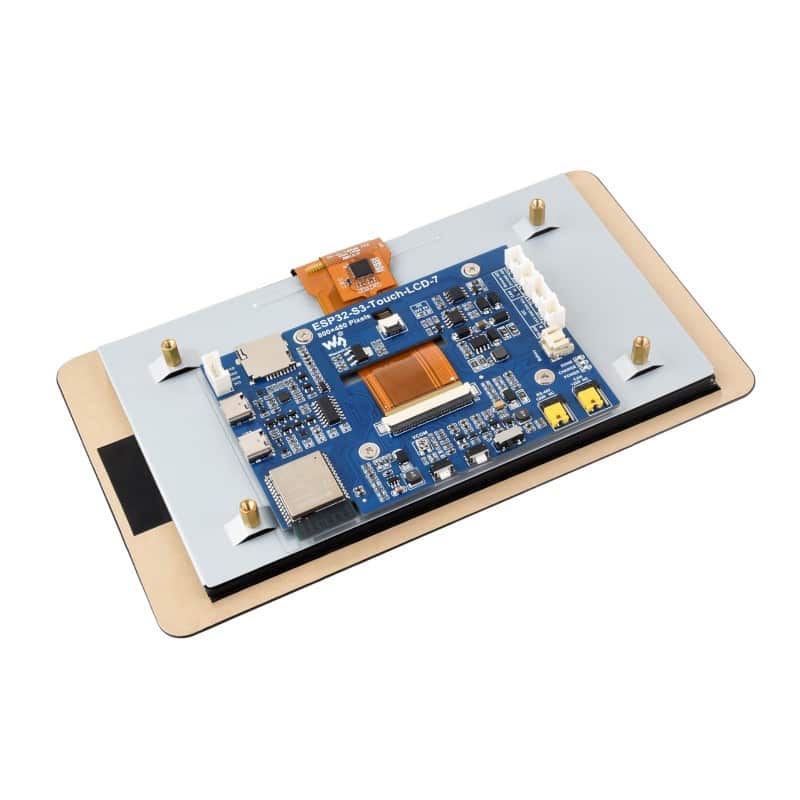

What's On Board
- ESP32-S3N8R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
- 7inch display panel connector
- Touch panel connector
- TF card slot
- USB Type-C port
- UART1 Port
USB TO UART Type-C port
- UART2 connector
UART1 and UART2 are the same UART, selected by switch
- Sensor header
- CAN header
- I2C header
- RS485 header
- 3.7V single lithium battery PH2.0 header
- CAN terminal resistor selection
- RS485 terminal resistor selection
- UART selection
select UART1 or UART2
- BOOT button
Press and hold while powering on for program burning
- RESET button
- I2C level selection
3.3V / 5V
- DONE
Lithium battery charging completed indicator
- CHG
Lithium battery charging indicator
- PWR
Power supply indicator
Outline Dimensions
Sadržaj pakovanja:
Weight: 0.291 kg
- ESP32-S3-Touch-LCD-7 x1
- HY2.0 2P to 2PIN male cable 10cm ×2
- HY2.0 2P to 3PIN male cable 10cm ×1
- HY2.0 2P to 4PIN male cable 10cm ×2
