ESP32-S3-Touch-LCD-4.3

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

Posetite Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email office@malina314.com

█ Overview

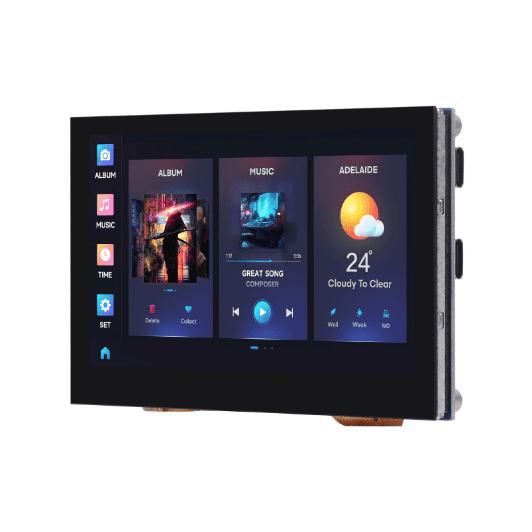

ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

Supports 2.4GHz Wi-Fi (802.11 b/g
) and Bluetooth 5 (LE), with onboard antenna

Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash

Onboard 4.3inch capacitive touch display, 800×480 resolution, 65K color

Supports capacitive touch control via I2C interface, 5-point touch with interrupt support

Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

Integrates RGB Interface LCD With 5-Point Capacitive Touch, Multiple Peripheral Interfaces

█ Application Scenarios

█ Supports Multiple Peripherals

Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485, And I2C Interfaces

█ Application Example

for reference only, please refer to the Package Content for the detailed part list

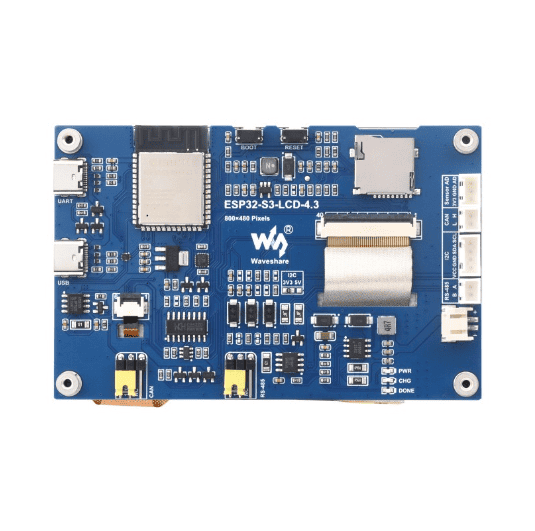

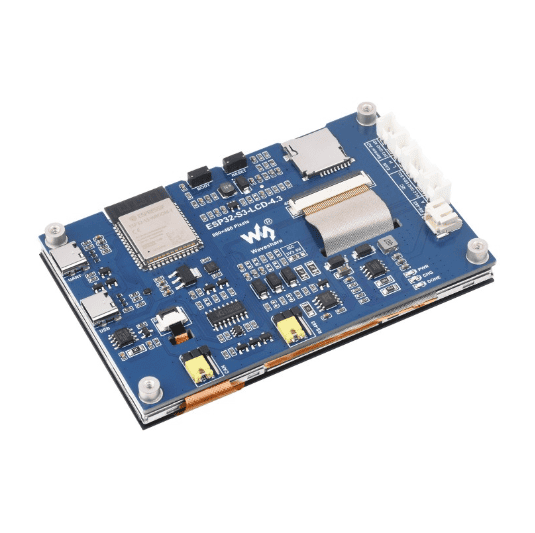

█ What's On Board

1. 1. ESP32-S3N8R8
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and Flash
  2. SGM2212-3.3
    800mA low-noise LDO
  3. FSUSB42UMX
    for USB pins multiplexing
  4. Touch panel connector
  5. USB TO UART Type-C port
  6. USB Type-C port
  7. TJA1051T/3/1J
    CAN interface chip
  8. CH422G
    IO expansion chip
  9. BOOT button
    Press and hold while powering on for program burning
  10. RESET button
  11. MP3302DJ-LF-Z
    Screen backlight boost chip
  12. 4.3inch display panel connector
  13. TF card slot
  14. Sensor header
  15. CAN header
  16. I2C header
  17. RS485 header
  18. 3.7V single lithium battery PH2.0 header
  19. CAN terminal resistor selection
  20. RS485 terminal resistor selection
  21. CH343P
    USB to UART chip
  22. SP3485
    RS485 transceiver chip
  23. CS8501
    Lithium battery recharge manager
  24. Status Indicators
    PWR: Power supply indicator
    CHG: Lithium battery charging indicator
    DONE: Lithium battery charging completed indicator
