Konektori, žice, protobord Prodajemo verziju sa 16MB, bez zalemljenih pinova (dobijate pinove, lemite ih sami)
SKU:28409
Part No.:ESP32-S3-DEV-KIT-N16R8
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-DEV-KIT-N8R8 ESP32-S3 Microcontroller, 2.4GHz Wi-Fi Development Board, 240MHz Dual Core Processor, ESP32-S3-WROOM-1 Module, 16MB Flash
ESP32-S3 Microcontroller Wi-Fi Development Board Supports development environments such as ESP-IDF, Arduino, MicroPython,etc
Onboard ESP32-S3-WROOM-1 series module
ESP32-S3-DEV-KIT-N16R8 Features This product is a compact-size microcontroller development board with multiple digital interfaces.
Adopts
ESP32-S3-WROOM-1 series module, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, built-in 512 KB SRAM (TCM) and 8MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port. Compatible with the pinout of ESP32-S3-DevKitC-1 development board, more convenient to use and expand a variety of peripheral modules.
You can choose ESP-IDF, Arduino, MicroPython, or other development environments in software so that you can easily and quickly get started and apply it to the product.
Key features include:
- Adopts ESP32-S3-WROOM-1 series module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
- Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, options For 8MB/16MB memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of ESP32-S3-DevKitC-1 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
- Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Supports ESP-IDF, Arduino, MicroPython Comprehensive SDK, dev resources, and tutorials to help you easily get started
ESP32-S3 Designed for AIoT applications Powered by Xtensa 32-bit LX7 dual-core processor with frequency up to 240 MHz
Powerful AI Computing Capability & Reliable security features
WIFI and BLE 5 support ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 b/g
) with 40 MHz of bandwidth support
Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Function Block Diagram

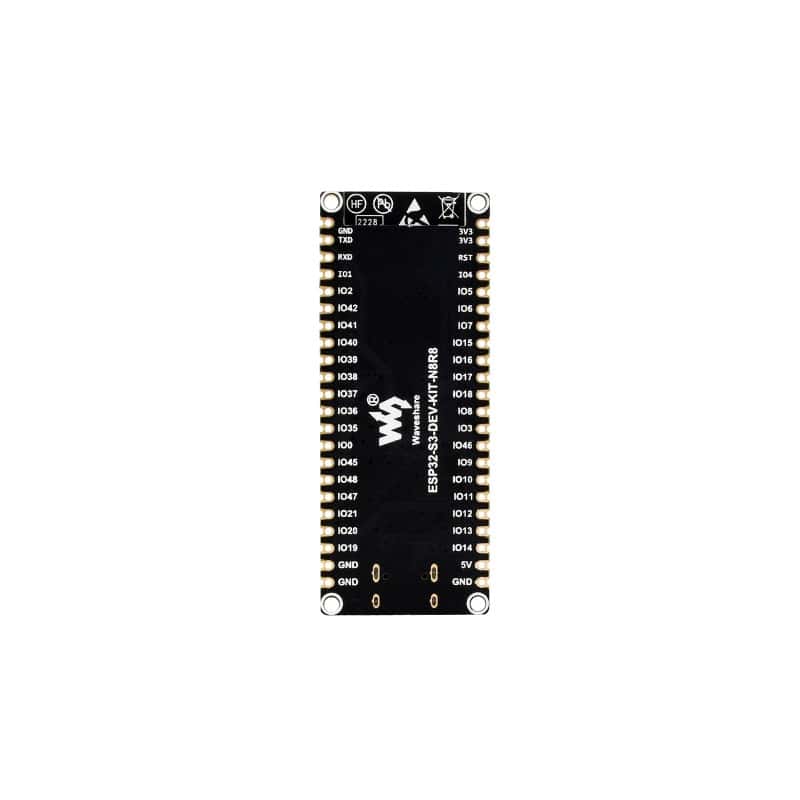

Pinout Definition Compatible with the pinout of ESP32-S3-DevKitC-1 development board

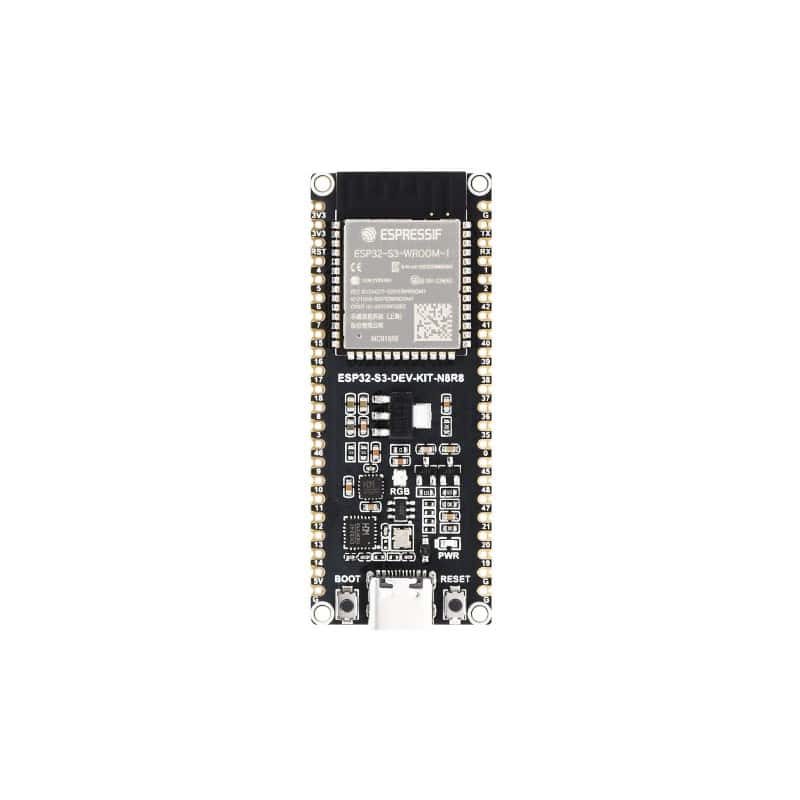

Onboard Resources
Product Show
Outline dimensions
Package content: ESP32-S3-DEV-KIT-N16R8
- ESP32-S3-DEV-KIT-N16R8 x1
- 40PIN male pinheader(black) x2
