SKU: 27932
Part Number: ESP32-S3-LCD-1.69
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-S3-LCD-1.69 Ekran
nije osetljiv na dodir, ali imamo i verziju koja
jeste. Link.

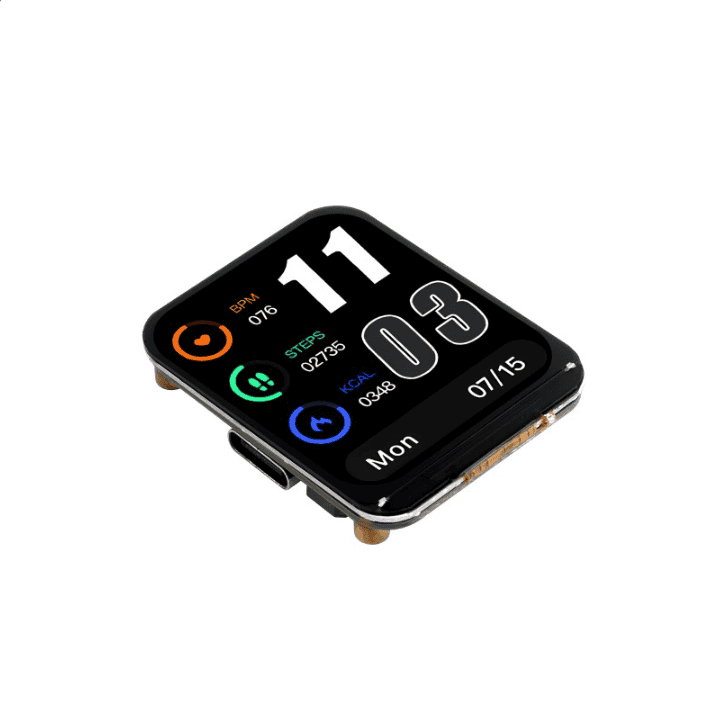

ESP32-S3 1.69inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280 Pixels, Supports WiFi/Bluetooth, Compact Size, Accelerometer And Gyroscope Sensor, Micro LCD Display With ESP32-S3
ESP32-S3-LCD-1.69 Embedded with ST7789V2 Display Driver Chip, SPI Communication
Features ESP32-S3-LCD-1.69 is a low-cost, high-performance MCU board designed by Waveshare, embedded with 240MHz dual-core processor, tiny size, with onboard 1.69inch 262K LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), WiFi/Bluetooth antenna, RTC, and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g
) and Bluetooth 5 (LE), with onboard antenna
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
- Type-C connector, keeps it up to date, easier to use
- Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
- Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement
- Onboard RST, BOOT and a programmable PWM button for easy custom function development
- Onboard 3.7V MX1.25 lithium battery recharge/discharge header
- Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

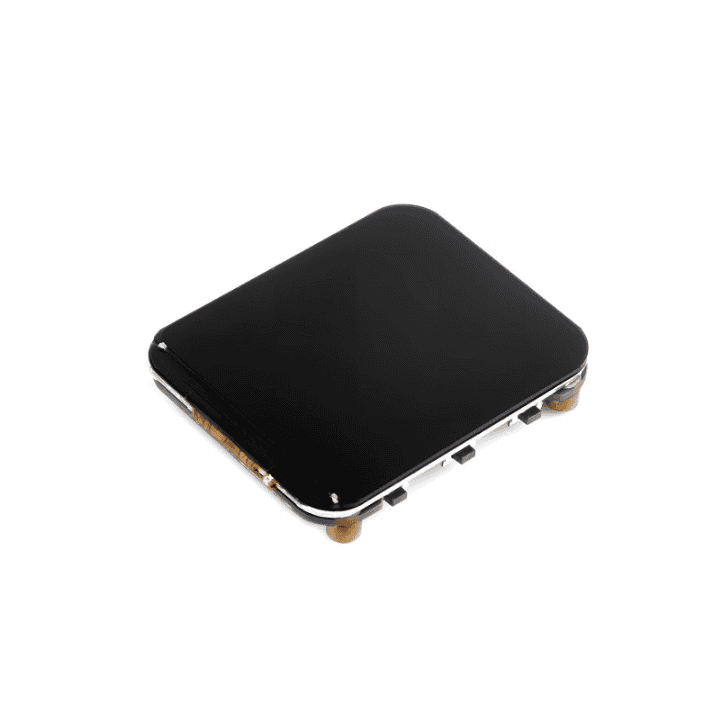

Onboard 1.69inch LCD Screen IPS Panel, 240×280 Resolution, 65K Color, Suitable For Various Application Scenarios
WIFI And Bluetooth Support Supports 2.4 GHz Wi-Fi (802.11 B/G/N) And Bluetooth 5 (LE), Onboard Antenna
Application Examples

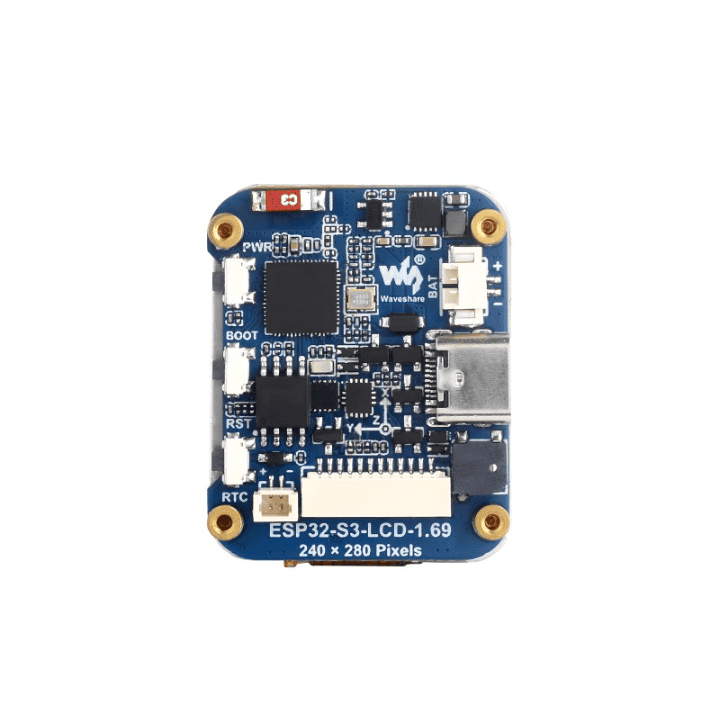

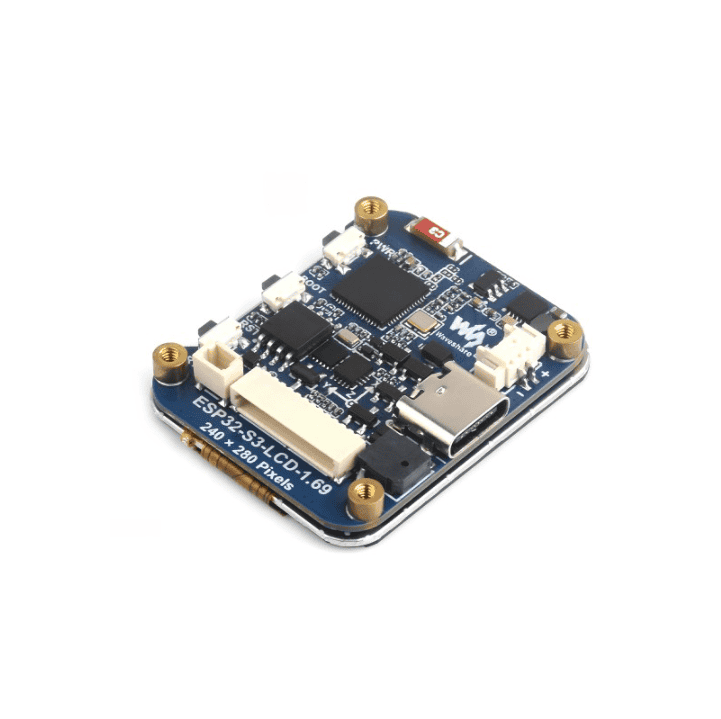

What's On Board
- ESP32-S3R8
The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 8MB PSRAM
- W25Q128JVSIQ
16MB NOR-Flash
- PCF85063
RTC chip
- QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer
- ETA6098
high-efficiency Lithium battery recharge manager
- MX1.25 battery header
MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
- USB Type-C connector
for programming and log printing
- Buzzer
sound-producing peripheral
- RTC battery header
for connecting rechargeable RTC battery, supports charging and discharging
- Onboard antenna
supports 2.4 GHz Wi-Fi (802.11 b/g
) and Bluetooth 5 (LE)
- PWM button
supports battery power supply control, single-press, double-press, multi-press and long-press operations
- BOOT button
- RST Reset button
- 12PIN header
Pin Definition
Outline Dimensions
PACKAGE CONTENT Weight: 0.003 kg
- ESP32-S3-LCD-1.69 x1
- SH1.0 12PIN cable x1
