(standardna verzija bez pinova i displeja) Konektori, žice, protobord SKU: 20624
Part Number: ESP32-S2-Pico
Brand: Waveshare
Korisne informacije:
ESP32-S2-Pico 2.4 GHz WiFi Development Board Based On Microcontroller ESP32-S2, 240MHz
ESP32-S2 WiFi Development Board (ESP32-S2 MCU WiFi razvojna ploča) 240 MHz Xtensa single-core 32-bit LX7 microcontroller
For C/C++ SDK, MicroPython, CircuitPython Development
Board Specifications This is a WiFi development board with compact size, plenty peripheral interfaces, integrated low-power Wi-Fi System-on-Chip (SoC) and mass memory, supporting Raspberry Pi Pico expansion board ecosystem. Equipped with hardware crypto accelerator, RNG, HMAC and Digital Signature module, it can meet the security requirements of the Internet of Things. Multiple low-power operating states to satisfy power requirements in IoT, mobile devices, wearable electronics, smart home and other application scenarios, etc.
ESP32-S2 Standard Ver. key features include:
- Support Raspberry Pi Pico expansion board ecosystem to satisfy creative IoT application development
- Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, support clock frequency up to 240 MHz
- Integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory
- Support IEEE802.11 b/g
, on-board 2.4 GHz WiFi ceramic antenna, up to 150 Mbps data transfer rate
- USB-C connector, no more plug orientation problem
- On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compatible), capacitive sensor GPIO, temperature sensor and RMT (TX/RX)
- On-board 1.8A current high efficiency boost/buck DC-DC TPS63000 power supply IC
- Support a variety of low-power operating states for adjusting the optimal balance between communication distance, data rate and power consumption, to meet the power requirements of various application scenarios
- Castellated module allows soldering direct to user-designed carrier boards
C/C++, MicroPython, CircuitPython Support Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
240 MHz High Frequency Processor Xtensa Single-Core 32-Bit LX7 Microprocessor, Up To 240 MHz Frequency
26 × Multi-Function GPIO Pins Configurable Pin Function, Allows Flexible Development And Integration

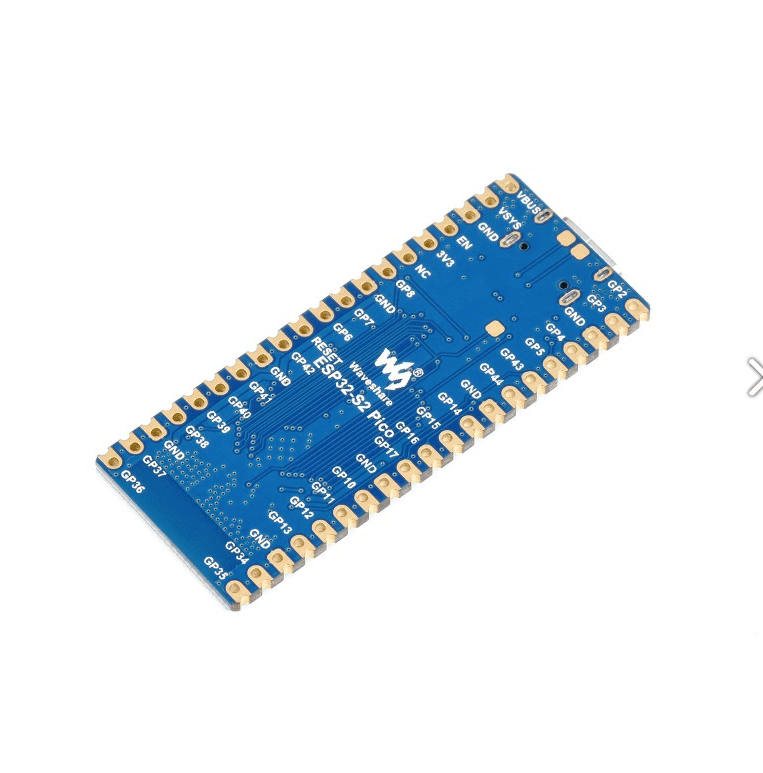

ESP32-S2 Standard Ver. Pinout

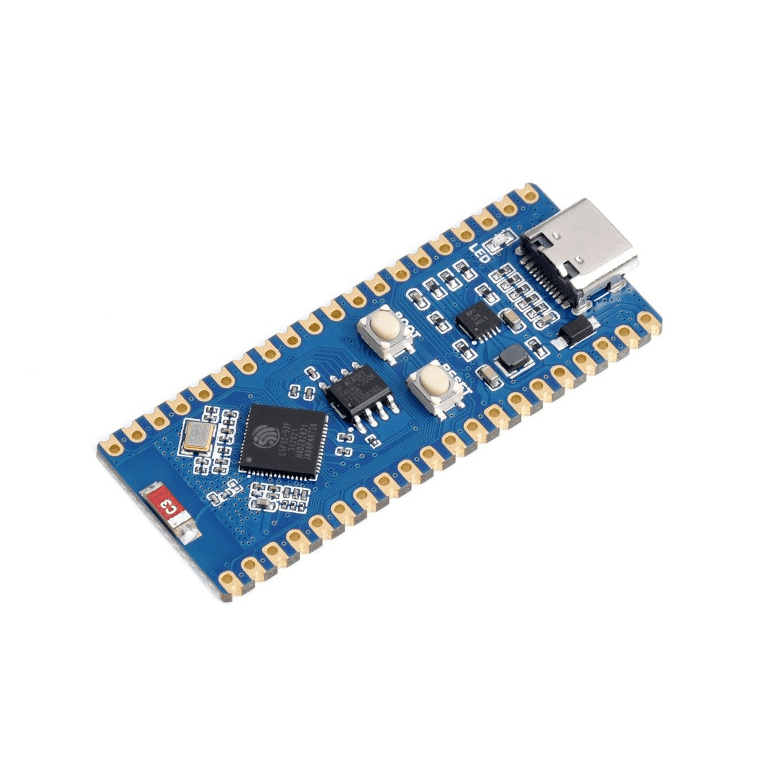

What’s On Board ESP32-S2 Standard Ver. Resources
- ESP32-S2FH4
Xtensa single-core 32-bit LX7 microprocessor
- APS6404L-3SQR-SN
8MB PSRAM
- BOOT button
BOOT button, press BOOT and then RESET button to enter download mode
- RESET button
- TPS63000DRCR
high efficiency DC-DC buck-boost chip
- LED
user LED (not power indicator)
- USB Type-C connector
for programming, serial printing, etc.
- Pinout
compatible with Raspberry Pi Pico
- USB test points
connecting to USB interface
- BOOT test point
connecting to BOOT button
- WiFi ceramic antenna
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.005 kg
ESP32-S2-Pico
- ESP32-S2-Pico (Standard Ver.) x1
