Konektori, žice, protobord SKU: 26507
Part Number: ESP32-H2-DEV-KIT-N4
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-H2-DEV-KIT-N4
ESP32-H2 Microcontroller, 96MHz Processor, ESP32-H2-MINI-1-N4 Module, Built In 4MB Flash, Supports BLE/Zigbee/Thread Wireless Communication
ESP32-H2 Microcontroller Development Board
Onboard ESP32-H2-MINI-1-N4 module
Supports BLE/Zigbee/Thread Wireless Communication
Board Specifications The
ESP32-H2-DEV-KIT-N4 is an entry-level RISC-V microcontroller development board integrating Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). it is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications. Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product.
Key features include:
- Adopts ESP32-H2-MINI-1-N4 module with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash
- Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
Supports ESP-IDF, Arduino
Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started
BLE 5 Support
Supports Bluetooth 5 And IEEE 802.15.4 (Zigbee 3.0 And Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Function Block Diagram

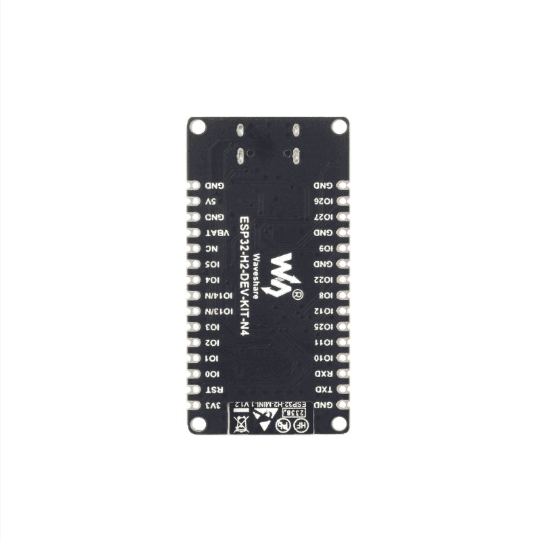

Pinout Definition
Compatible With The Pinout Of ESP32-H2-DevKitM-1 Development Board

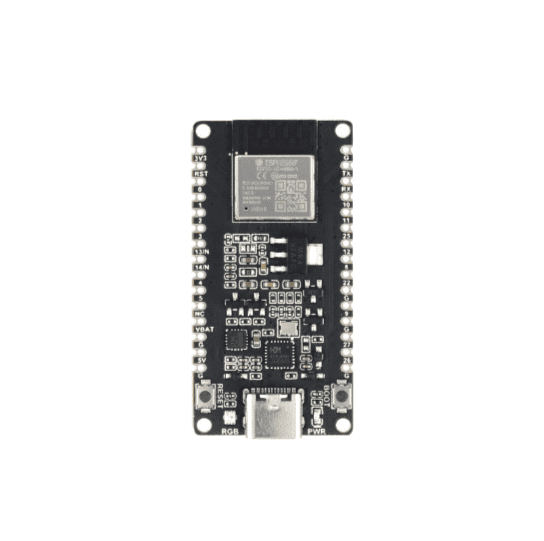

Onboard Resources
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.009 kg

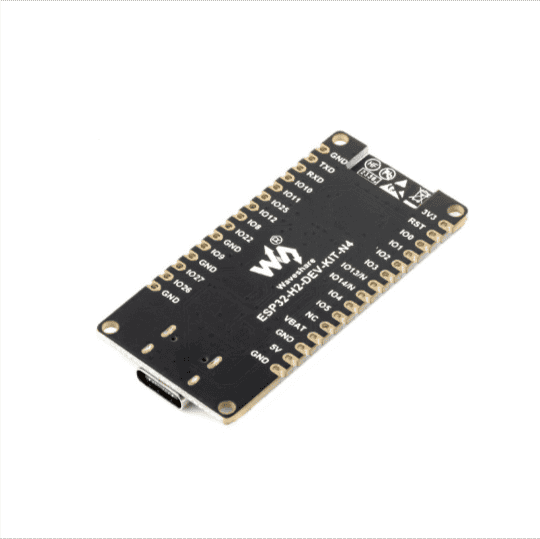

ESP32-H2-DEV-KIT-N4
- ESP32-H2-DEV-KIT-N4 x1
- 40PIN male pinheader(black) x2
