Konektori, žice, protobord SKU: 25723
Part Number: ESP32-C6-DEV-KIT-N8
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-C6-DEV-KIT-N8 ESP32-C6 Microcontroller, WiFi 6 Development Board, 160MHz Single-Core Processor, ESP32-C6-WROOM-1-N8 Module, Supports USB And UART Development
ESP32-C6 Microcontroller Wi-Fi Development Board
Onboard ESP32-C6-WROOM-1-N8 module
Board Specifications
The
ESP32-C6-DEV-KIT-N8 is an entry-level RISC-V microcontroller development board integrating WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
Adopts
ESP32-C6-WROOM-1-N8 module, which is equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, SDIO and other interfaces; Onboard CH343 and CH334 USB HUB chips, supports USB and UART development at the same time via a USB-C port. Compatible with the pinout of the ESP32-C6-DevKitC-1-N8 development board, more convenient to use and expand a variety of peripheral modules.
Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product.
Key features include:
- Adopts ESP32-C6-WROOM-1-N8 module with RISC-V 32-bit single-core processor, up to 160MHz main frequency, built-in 8MB Flash
- Integrated WiFi 6, Bluetooth 5 and and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Type-C connector, easier to use
- Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
- Rich peripheral interfaces, compatible with the pinout of the ESP32-C6-DevKitC-1-N8 development board, offers strong compatibility and expandability
- Castellated module allows soldering directly to carrier boards
WiFi 6 And BLE 5 Support
Supports WiFi 6, Bluetooth 5 And IEEE 802.15.4 (Zigbee 3.0 And Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Function Block Diagram

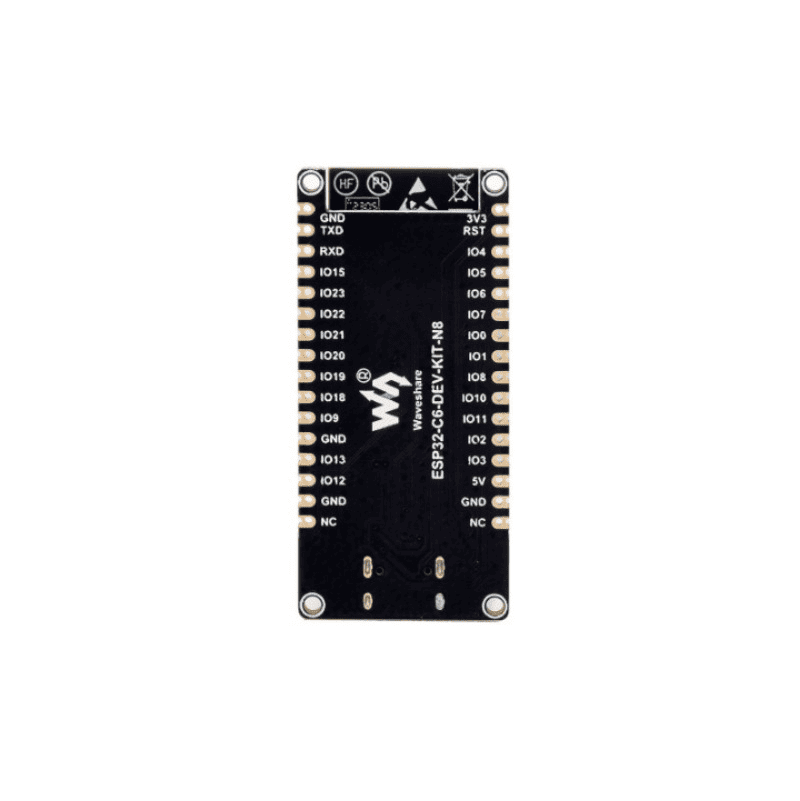

Pinout Definition
Compatible With The Pinout Of The ESP32-C6-DevKitC-1-N8 Development Board

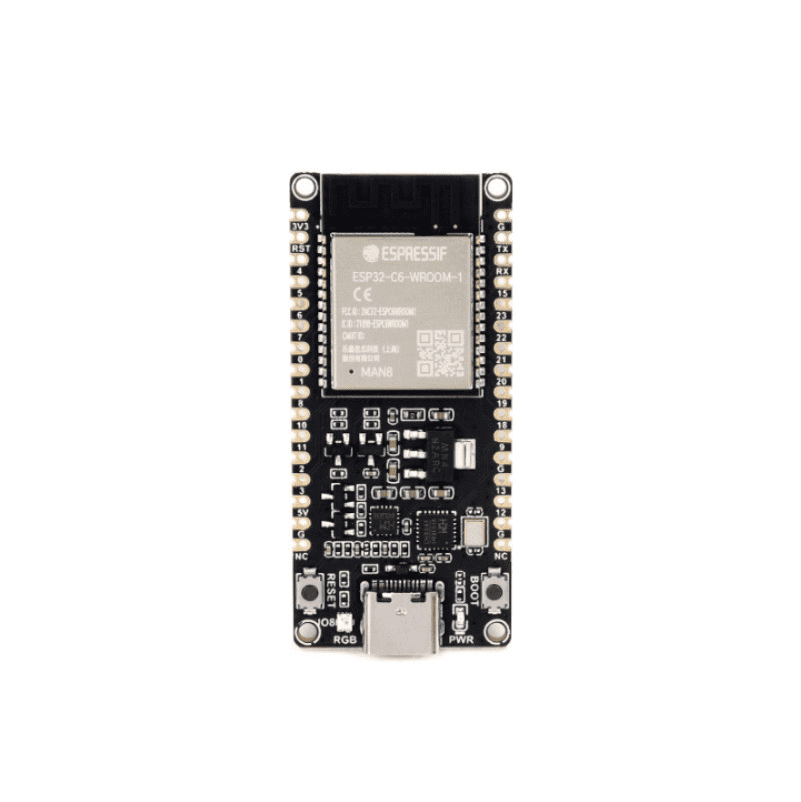

Onboard Resources

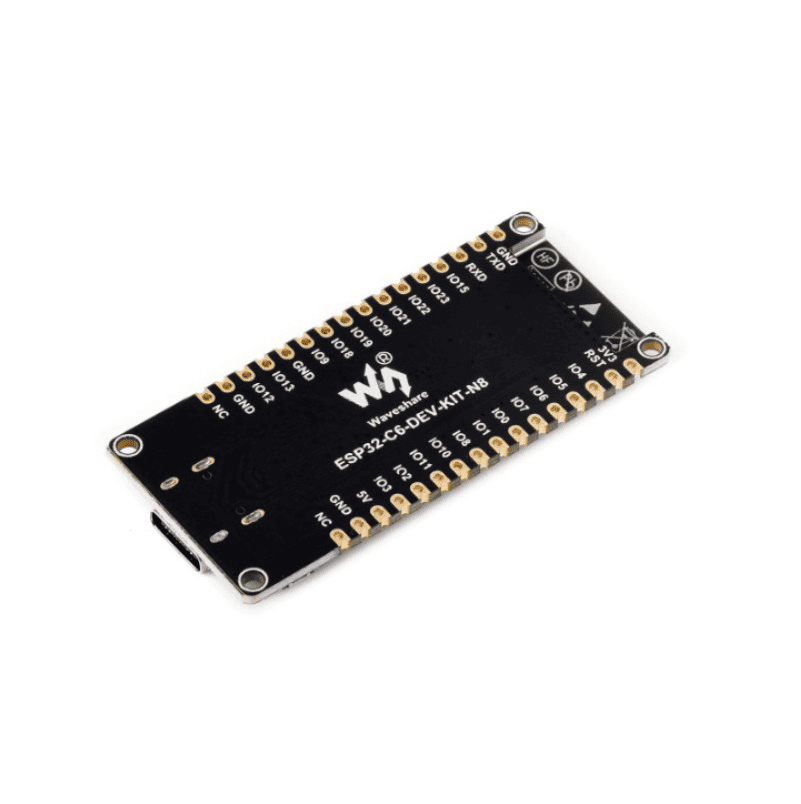

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.013 kg
ESP32-C6-DEV-KIT-N8
- ESP32-C6-DEV-KIT-N8 x1
- 40PIN male pinheader(black) x2
