Konektori, žice, protobord SKU: 27035
Part Number: ESP32-C6-Zero
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-C6-Zero Features
- Adopts ESP32-C6-MINI-1 as the main chip, with RISC-V 32-bit single-core processor, support up to 160 MHz.
- Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
- Integrated 2.4GHz WiFi 6 and BLE (Bluetooth LE) dual-mode wireless communication, with superior RF performance.
- Type-C connector, easier to use.
- Rich peripheral interfaces, including standard Raspberry Pi Pico interfaces, better compatibility and expandability.
- Castellated module allows soldering directly to carrier boards.
- Support multiple low-power modes, easy to adjust communication distance, data rate, and power consumption, to meet various application scenarios with power consumption requirements.
- Please use the provided " WS_TCA9554PWR " file to set GPIO22（SDA）and GPIO23（SCL）as I2C functions for GPIO extension to make the device function complete.
- Please note that GPIO22 (SDA) and GPIO23（SCL） are used for TCA9554PWR, and you only can connect these pins to I2C slave device, and do not connect to others.
ESP32-C6 Mini Development Board, Based On ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board

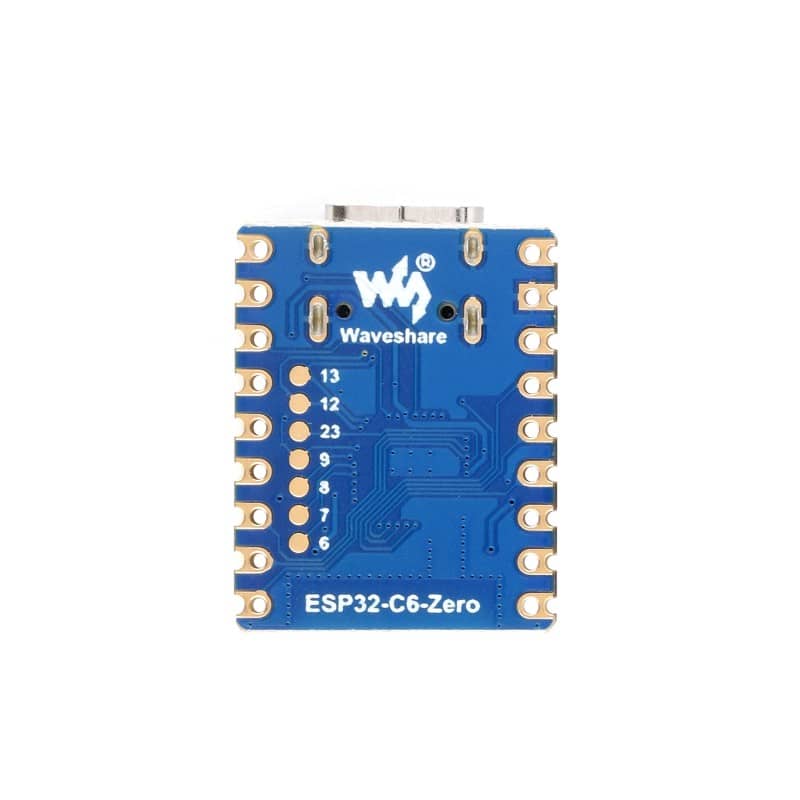

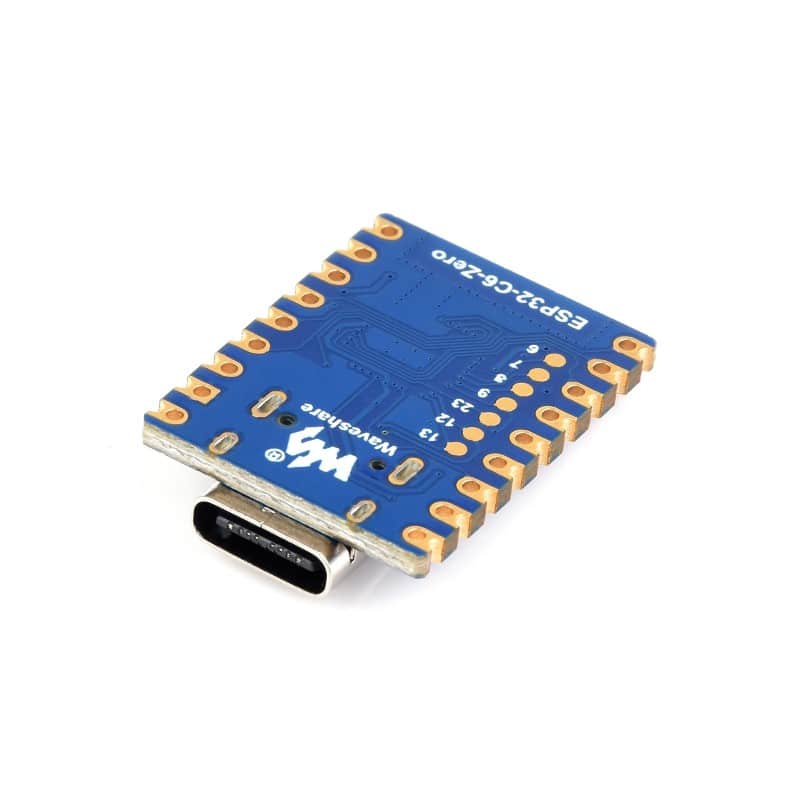

ESP32-C6-Zero WiFi 6 Development Board
Based on ESP32-C6FH4, onboard multi-function GPIO pins
Castellated Module, Suitable For SMD Applications
Board Specifications
- Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
- Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
- Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions
ESP32-C6 Suitable For AIoT Applications
Powered By A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor, The Main Frequency Is Up To 160 MHz, Powerful AI Computing Capability & Reliable Security Features
WIFI 6 And BLE 5 Support
ESP32-C6 Integrates 2.4 GHz Wi-Fi 6 (802.11 Ax/B/G/N) With 40 MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
Supports ESP-IDF, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

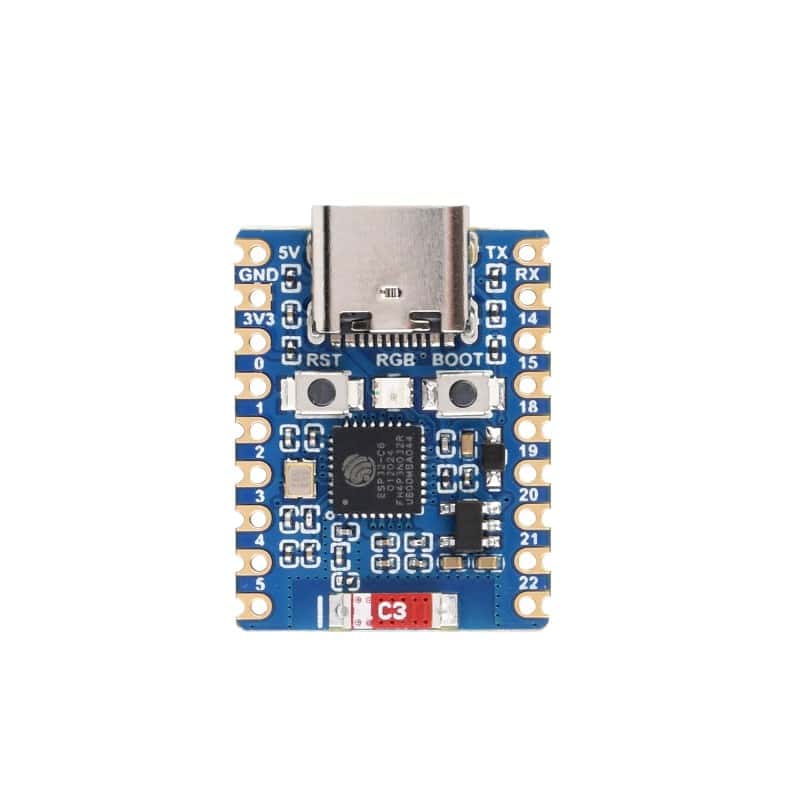

What's On Board
- ESP32-C6FH4
Built-in dual processors, main frequency is up to 160 MHz
- USB Type-C Port
for downloading programme and debugging
- ME6217C33M5G
low dropout LDO, 800mA (Max)
- WS2812 RGB LED
- 2.4G ceramic antenna
- BOOT button
Press it and then press the RESET button to enter download mode
- RESET button
- ESP32-C6FH4 pins
Pin Definition
Outline Dimensions
Sadržaj pakovanja:
Težina: 0.002 kg
ESP32-C6-Zero
ESP32-C6-Zero x1
