Konektori, žice, protobord SKU: 25452
Part Number: ESP32-C3-Zero
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/ESP32-C3-Zero ESP32-C3 Mini Development Board, Based On ESP32-C3FN4 Single-Core Processor, 160MHz Running Frequency, 2.4GHz Wi-Fi & Bluetooth 5

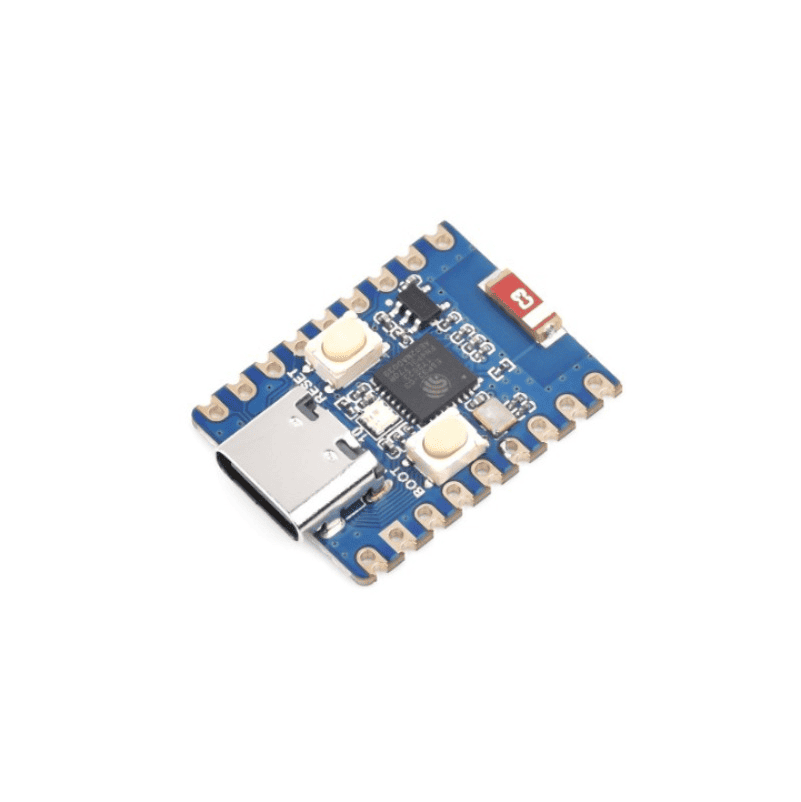

ESP32-C3-Zero Development Board
Based on ESP32-C3FN4, onboard multi-function GPIO pins
Castellated Module, Suitable For SMD Applications
Board Specifications
- Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g
) and Bluetooth® 5 (LE)
- 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
- Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
- Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
- Integrated with USB serial port full-speed controller, 15 × GPIO pins allows flexibly configuring pin functions
- 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc.
Version Options
ESP32-C3-Zero without pinheader
Support C/C++, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

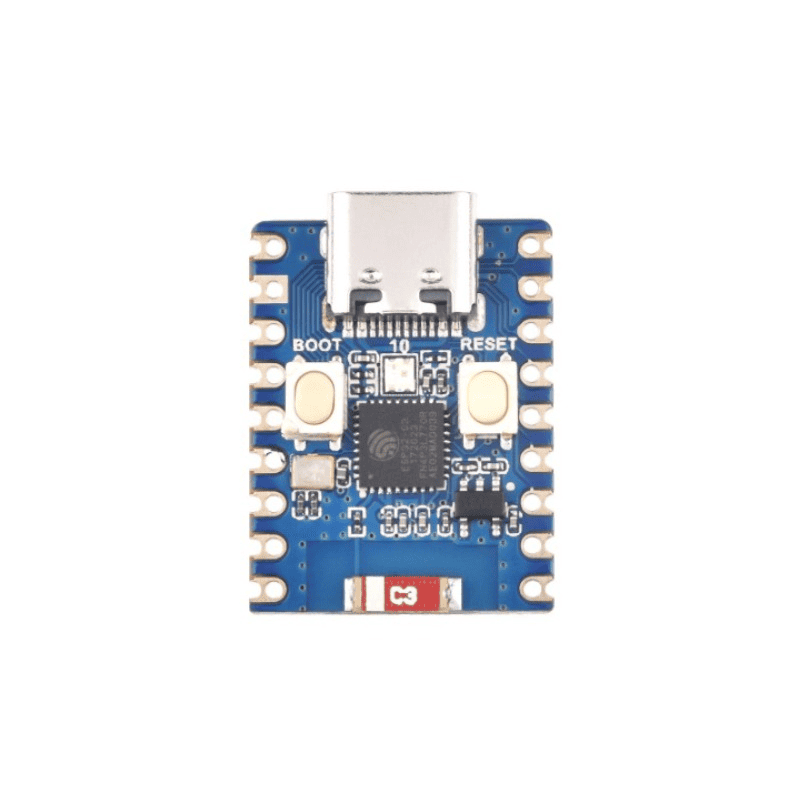

What's On Board
- USB Type-C Port
- BOOT button
Press it and then press the RESET button to enter download mode
- RESET button
- WS2812 RGB LED
- CAT6219-330TD-GT3
CMOS LDO, 500mA (Max)
- ESP32-C3FN4 single-core processor
up to 160MHz operating frequency
- 2.4G ceramic antenna

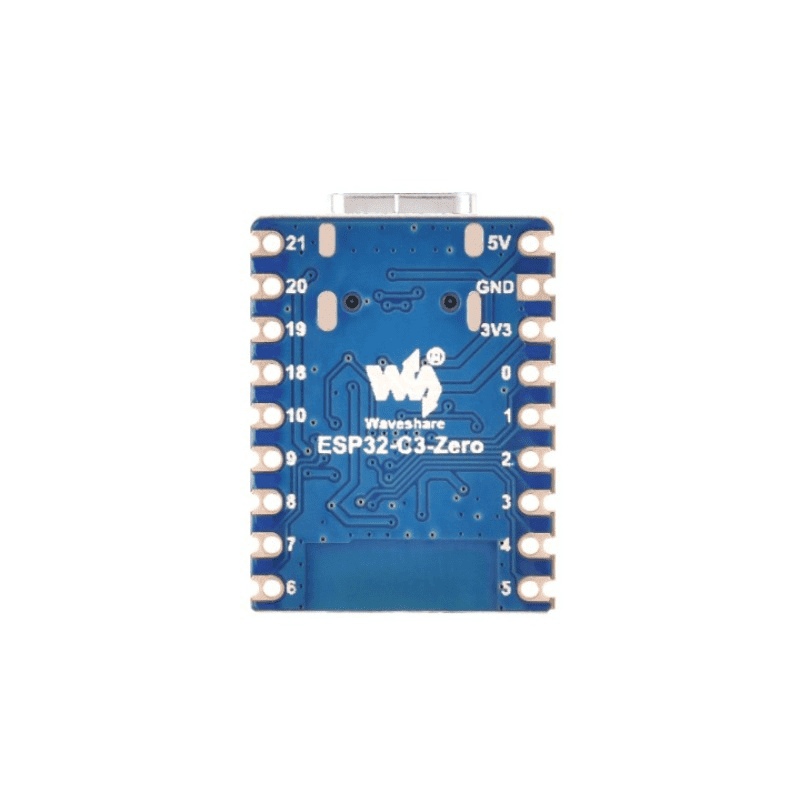

Pin Definition
Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.002 kg
ESP32-C3-Zero
- ESP32-C3-Zero x1
