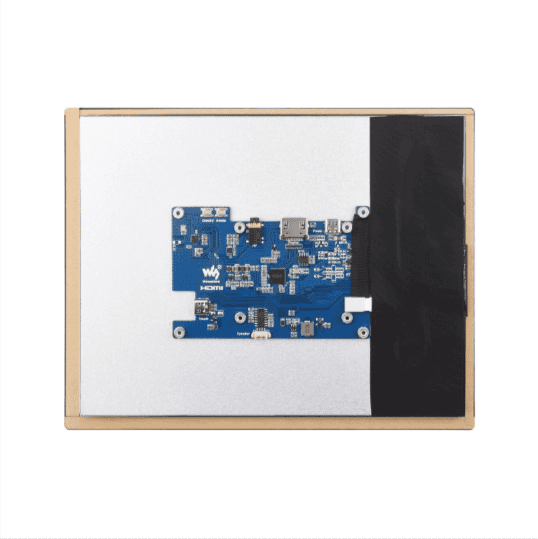

SKU: 26698
Part Number: 9.7inch 768x1024 LCD
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/9.7inch_768x1024_LCD zvučnici za ovaj displej 9.7″ Capacitive Touch Display

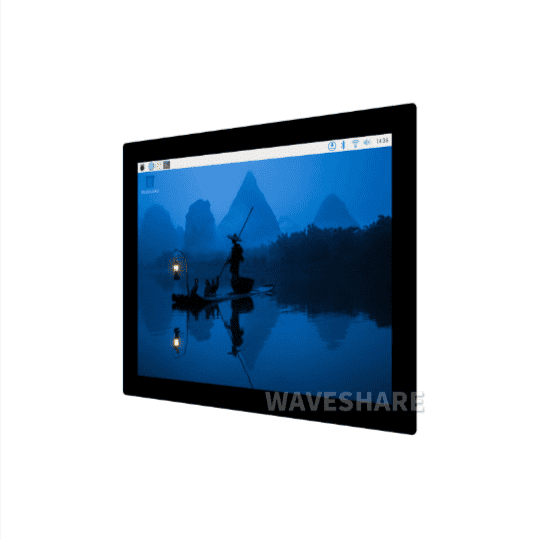

9.7inch Capacitive Touch Display, 768×1024, Toughened Glass Panel, HDMI Interface, IPS Panel, 10-Point Touch
The display orientation is portrait by default, 768×1024 resolution (H×V). Change the software config for landscape display.
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
9.7" |
768×1024 |
HDMI |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB Type-C |
Toughened Glass |
Brightness, Contrast |
Audio
Output 1 |
Audio
Output 2 |
|
|
|
 |
 |
|
|
|
3.5mm Jack |
4 PIN Header |
|
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Series Board
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
█ Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Series Board
Working With PC
for reference only, the above controller boards or host are NOT included
█ Display
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
Supports Backlight Adjustment Via Software
█ Interface Introduction
█ Dimensions
-
█ Package Content
- 9.7inch 768x1024 LCD ×1
- HDMI flat cable ~1m ×1
- USB-A to Type-C cable ~1m ×1
- USB to Type-C adapter (C) ×1
- USB to Type-C adapter (B) ×1
- HDMI adapter ×1
- HDMI to Micro HDMI adapter ×1
- Screws pack ×1
Weight: 0.57 kg
