SKU: 24483
Part Number: 8HP-CAPLCD Monitor
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/8HP-CAPLCD_Monitor 8″ Wide Color Gamut Touch Display
8inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface, 10-Point Touch, Aluminum Alloy Case
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
8" |
1280×800 |
HDMI /
Type C |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB Type-C |
Toughened Glass |
Brightness, Contrast |
Audio Output |
Certification |
Sound |
Touch Panel Tech |
Enclosure |
 |
 |
 |
 |
 |
3.5mm Jack |
Support DCC/CI |
Hi-Fi Speaker |
Optical Bonding |
Aluminium Alloy |
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
VisionFive2
- Supports Debian, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
- Huawei, Samsung, OPPO, LG...(wired projection)
█ Connection Examples

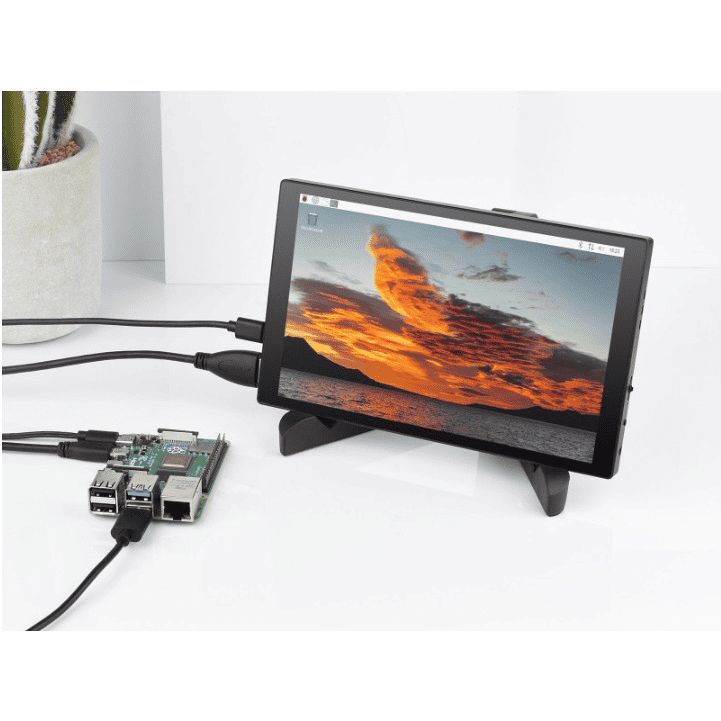

Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With PC *
Working With Smartphone *
- Please make sure that the smartphone or PC itself features full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
█ Display
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Wide Color Gamut LED Technology
Wider Color Gamut, More Pure Chroma. Color Gamut Of This Display Is Up To NTSC 82%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports DDC/CI Brightness Adjustment
Full-Featured Type-C Interface
Audio And Video Transmission In One Connection, Plug And Play,
Instantly Zoom In The Smartphone Screen
(For Supported Mobile Phone Models, Please Contact Customer Service)
Computer Dual Screen For Collaborative Processing
One Screen For Work, One Screen For Entertainment, Without Interfering With Each Other
Dual-Track Speaker
Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

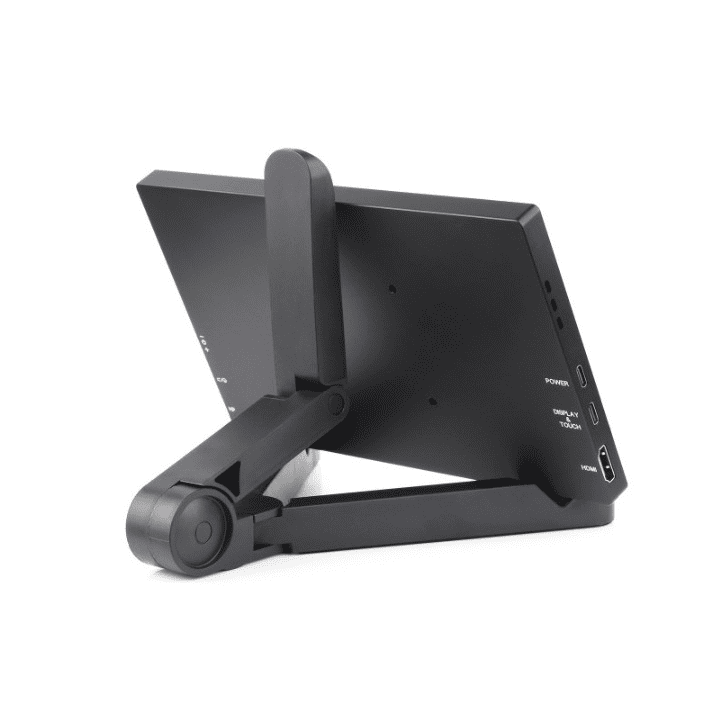

Comes With Triangular Stand

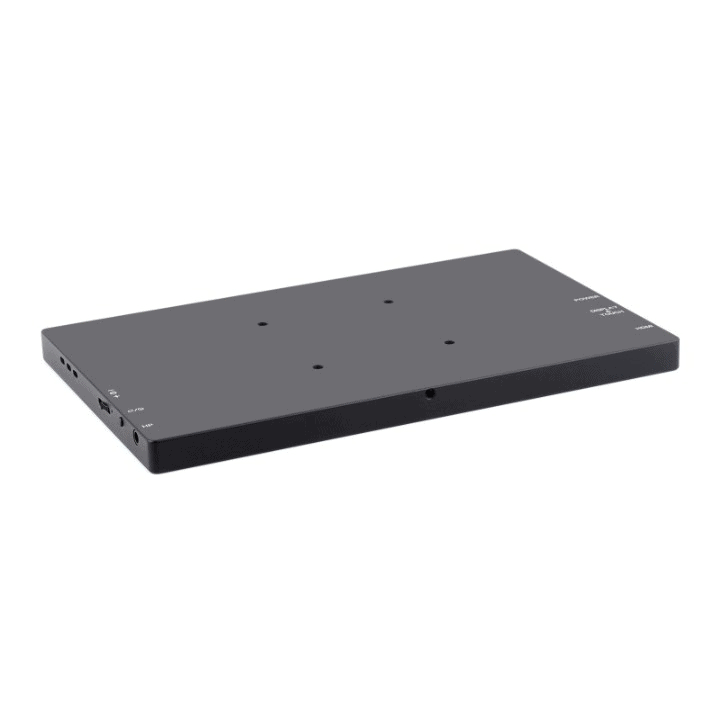

VESA Mounting Support
█ Interface Introduction
█ Product Show
█ Dimensions
-
█ Package Content
- 8HP-CAPLCD Monitor ×1
- HDMI flat cable ~1m ×1
- HDMI to Micro HDMI Adapter ~1m ×1
- USB-A to USB-C cable ~1m ×1
- USB-C to USB-C cable ×1
- Triangular stand ×1
Weight: 0.623 kg
