SKU: 18625
Part Number: 7HP-CAPQLED
Brand: Waveshare
Korisnen informacije: http://www.waveshare.com/wiki/7HP-CAPQLED 7" QLED Quantum Dot Display
7inch QLED Quantum Dot Display, Capacitive Touch, 1024×600, G+G Toughened Glass Panel, Various Devices & Systems Support
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
7" |
1024×600 |
HDMI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
5-Points |
USB |
Toughened Glass |
Brightness, Contrast |
Audio
Output 1 |
Audio
Output 2 |
Gaming |
Backlight |
|
 |
 |
 |
 |
|
3.5mm Jack |
4 PIN Header |
Xbox360/ PS4/Switch |
QLED Quantum Dot |
|
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 5-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Game Console
█ Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC

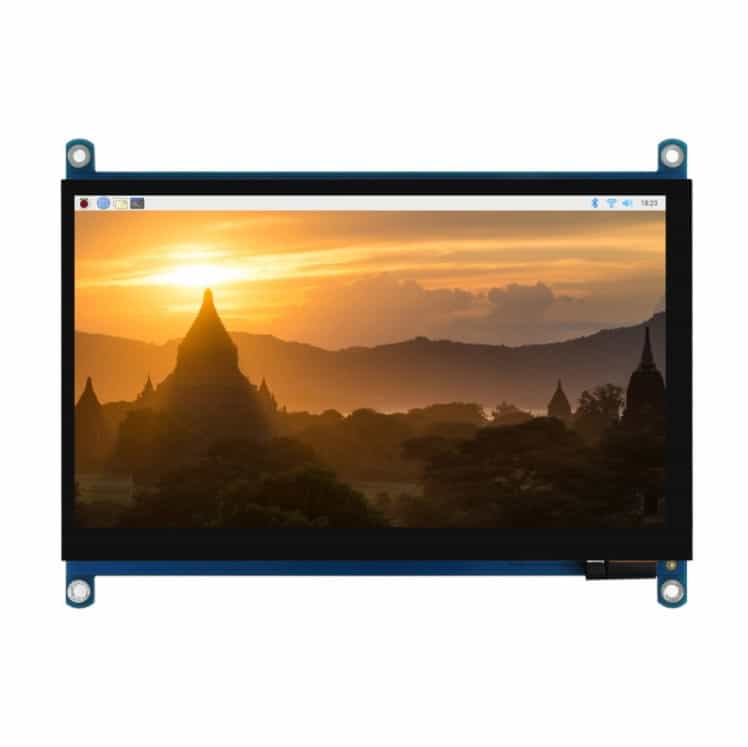

█ Display
QLED Panel
QLED Quantum Dot Technology
Wider Color Gamut
Color Gamut Of This QLED Display Is Up To: NTSC 78%, SRGB 92%
More Pure Chroma
Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid
Longer Lifetime
Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

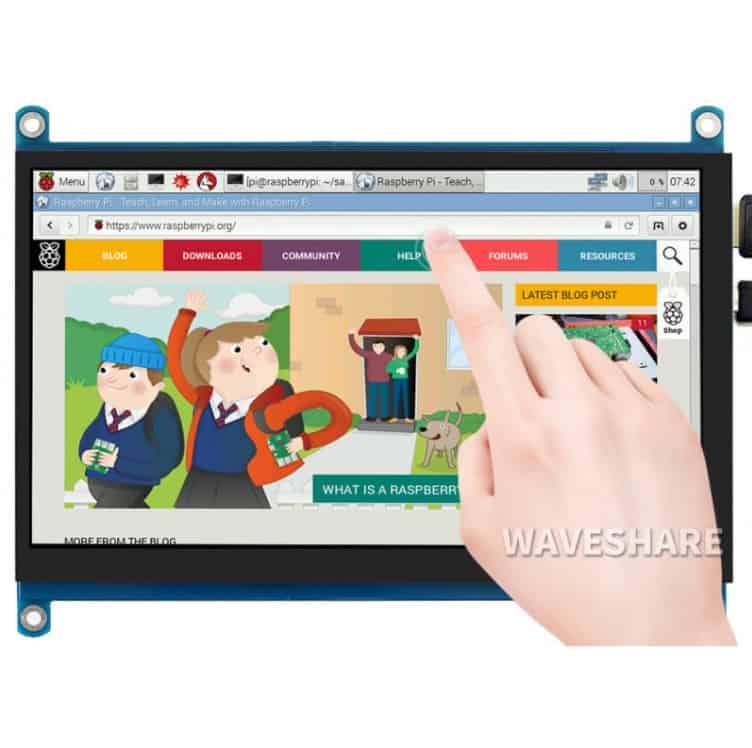

Touch Control
1) up to 5-points touch, depending on the operating system.
2) up to 6H hardness G-G toughened glass panel.
Backlight Control
The Backlight Brightness Is Adjustable Via Software
Enjoy Gaming
* audio output via earphone/speaker port.

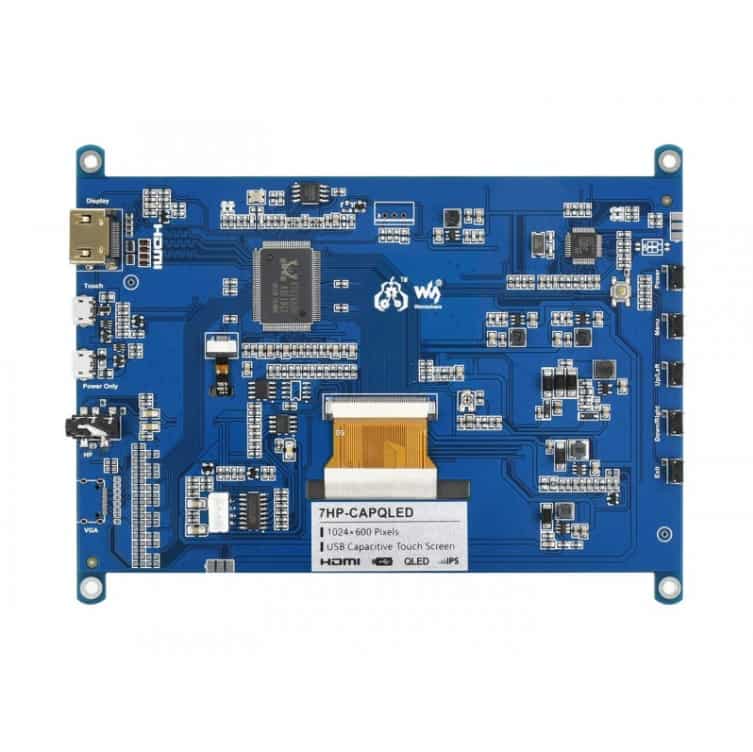

█ Design Details
- LCD FFC cable anti-interference design, more stable for industrial application
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
- Low dropout ideal diode isolation, when both the Touch and Power Only are connected to a power source, only the one with more power capability will be used as power supply. The two power inputs are totally isolated to prevent any breakdown
- Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
- OSD menu config buttons for adjusting backlight (via software) and display color
- DC-DC LCD driver circuit, low heating on long term operation
█ Appearance And Dimensions
-
█ Package Content
-
- 7HP-CAPQLED x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB type A plug to micro B plug cable x1
- RPi screws pack (4pcs) x 1
Weight: 0.428 kg
