SKU:28606
Part No.:7EP-CAPLCD Monitor
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/7EP-CAPLCD_Monitor 7inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface, 10-Point Touch, Aluminum Alloy Case
7″ Wide Color Gamut Touch Display High Resolution | Multi-Point Touch | Full Color
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
RDK X3
Supports Ubuntu, single point touch, driver free
VisionFive2
Supports Debian, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung...(wired projection)
Connection Examples Working with Raspberry Pi 5
Working with Jetson Series Board
Working with Mini PC
Working with laptop *
Working with Smartphone *
- Please make sure that the smartphone or laptop itself features full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included
IPS Display Panel Excellent Display Performance With 178° Wide Viewing Angle
Wide Color Gamut LED technology Wider Color Gamut, More Pure Chroma
Color Gamut Of This Display Is Up To NTSC 68%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports DDC/CI brightness adjustment Full-featured Type-C interface Audio And Video Transmission In One Connection, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)
Computer Dual Screen For Collaborative Processing One screen for work, one screen for entertainment, without interfering with each other
Dual-Track Speaker Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

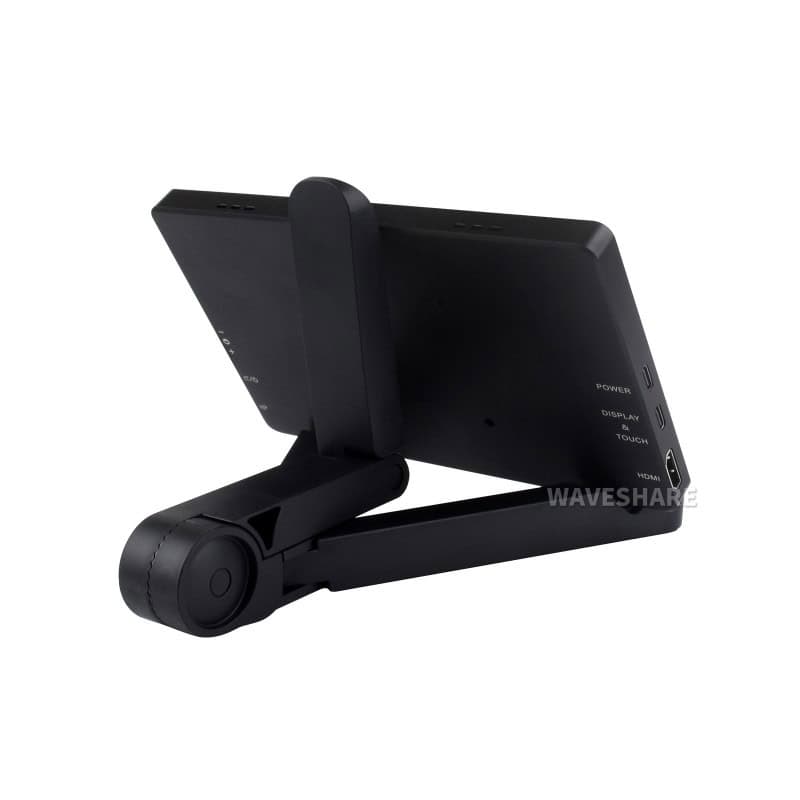

Comes with Triangular stand
VESA Mounting Support
Interface Introduction
Product Show
* for reference only, the Raspberry Pi 5 is NOT included.
Dimensions
Package content: Weight: 0.519 kg
- 7EP-CAPLCD Monitor ×1
- HDMI flat cable ~1m ×1
- HDMI to Micro HDMI Adapter ~1m ×1
- USB-A to USB-C cable ~1m ×1
- USB-C to USB-C cable ×1
- Triangular stand ×1
