SKU: 14628
Part Number: 7inch HDMI LCD (H)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/7inch_HDMI_LCD_(H) 7" HDMI Touch Display
7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Devices & Systems Support
Note: Raspberry Pi and Speaker (8Ω 5W) in the photos are NOT included.
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
7" |
1024×600 |
HDMI / VGA |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
5-Points |
USB |
Toughened Glass |
Brightness, Contrast |
Audio
Output 1 |
Audio
Output 2 |
Gaming |
|
|
 |
 |
 |
|
|
3.5mm Jack |
4 PIN Header |
Xbox360/ PS4/Switch |
|
|
█ Device & System Support
Raspberry Pi

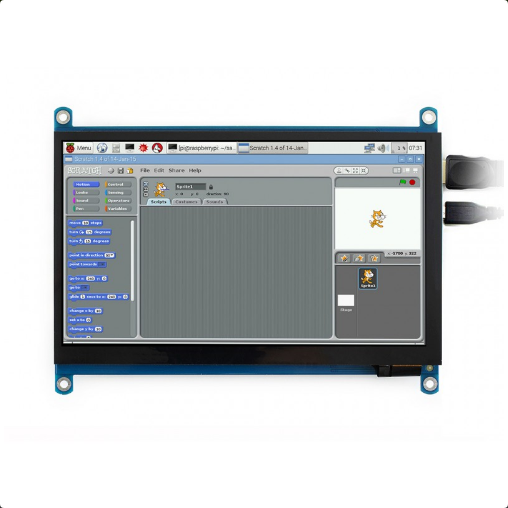

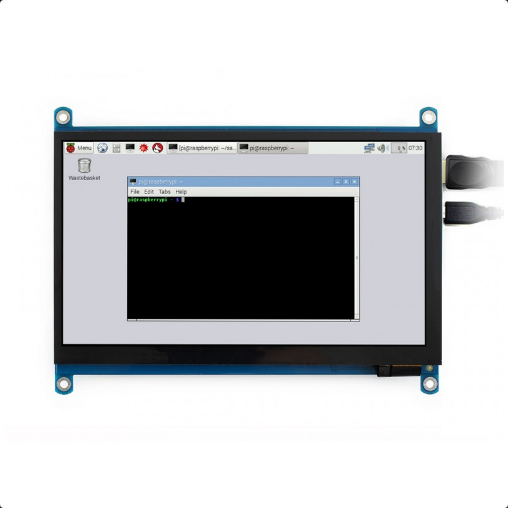

- Supports Raspbian, 5-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC

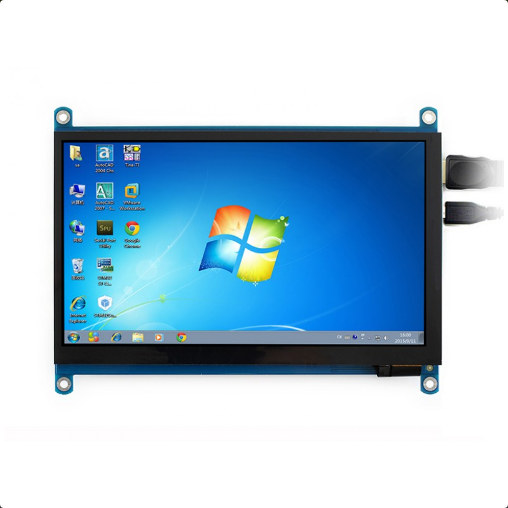

- Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch, driver free
Game Console
█ Connection Examples

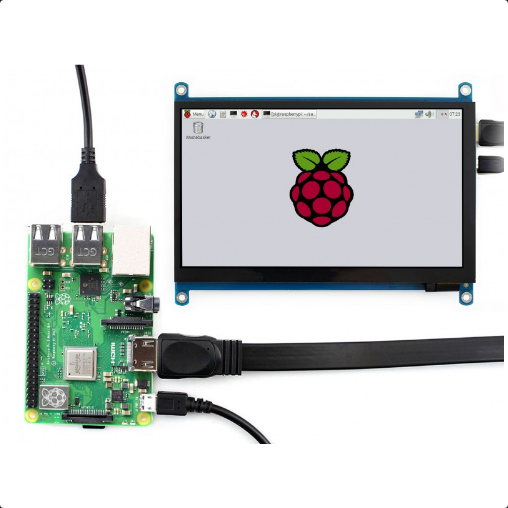

Working with Raspberry Pi 4
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero W
Working with AI Computer Jetson Nano
Working with mini PC
█ Display
IPS Panel
Touch Control
1) up to 5-points touch, depending on the operating system.
Enjoy Gaming
* audio output via earphone/speaker port.

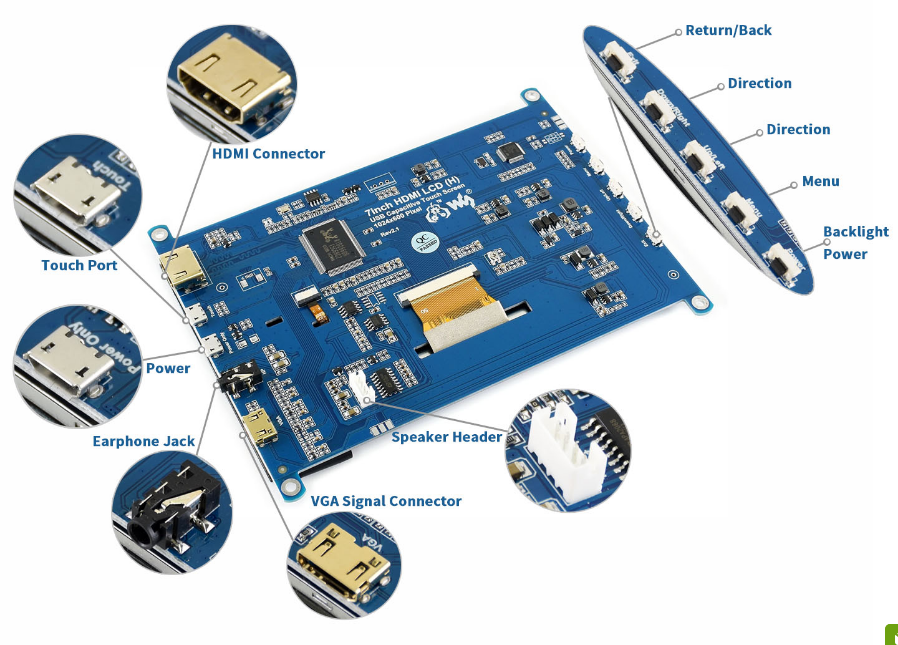

█ Design Details
- LCD FFC cable anti-interference design, more stable for industrial application
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
- One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown

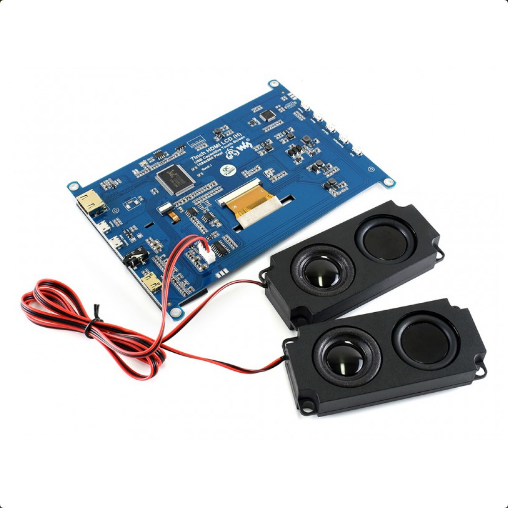

- Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
- OSD menu config buttons for adjusting backlight and display color
- DC-DC LCD driver circuit, low heating on long term operation
- VGA port to support VGA devices

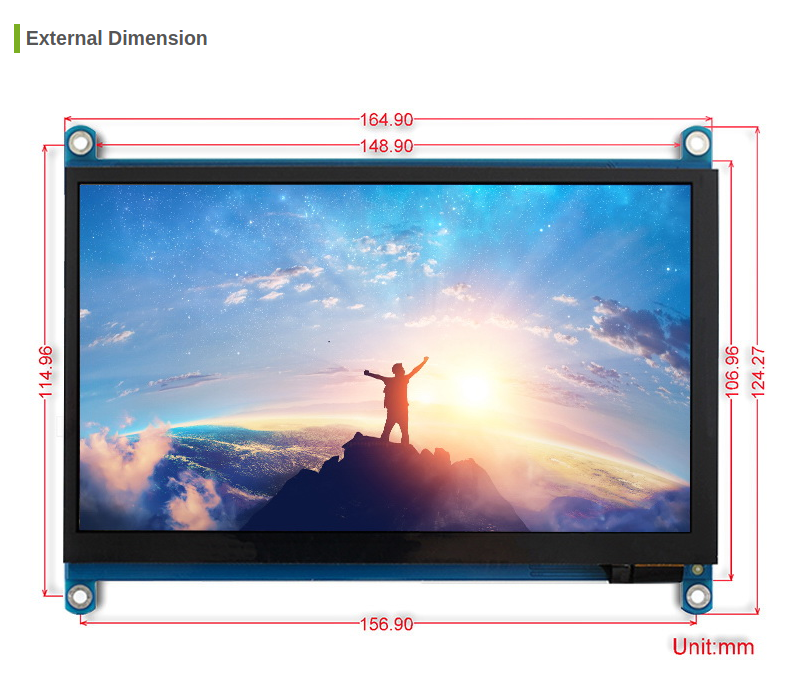

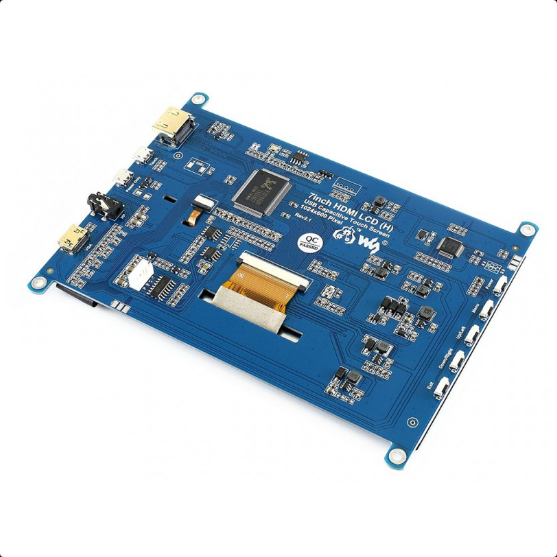

█ Appearance and Dimensions
█ Package Content
- 7inch HDMI LCD (H) x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB type A plug to micro B plug cable x1
- Quick start sheet x1
Weight: 0.273 kg
