SKU: 13857
Part Number: 7inch HDMI LCD (H) (with case)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/7inch_HDMI_LCD_(H)_(with_case) 7" HDMI Touch Display with Case
7inch, IPS, 1024x600, Capacitive Touch Screen LCD with Toughened Glass Cover, Supports Multi mini-PCs, Multi Systems
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
7" |
1024×600 |
HDMI / VGA |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
5-Points |
USB |
Toughened Glass |
Brightness, Contrast |
Audio Output |
Certification |
Gaming |
|
|
 |
 |
 |
|
|
3.5mm Jack |
CE |
Xbox360/ PS4/Switch |
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Game Console
█ Connection Examples

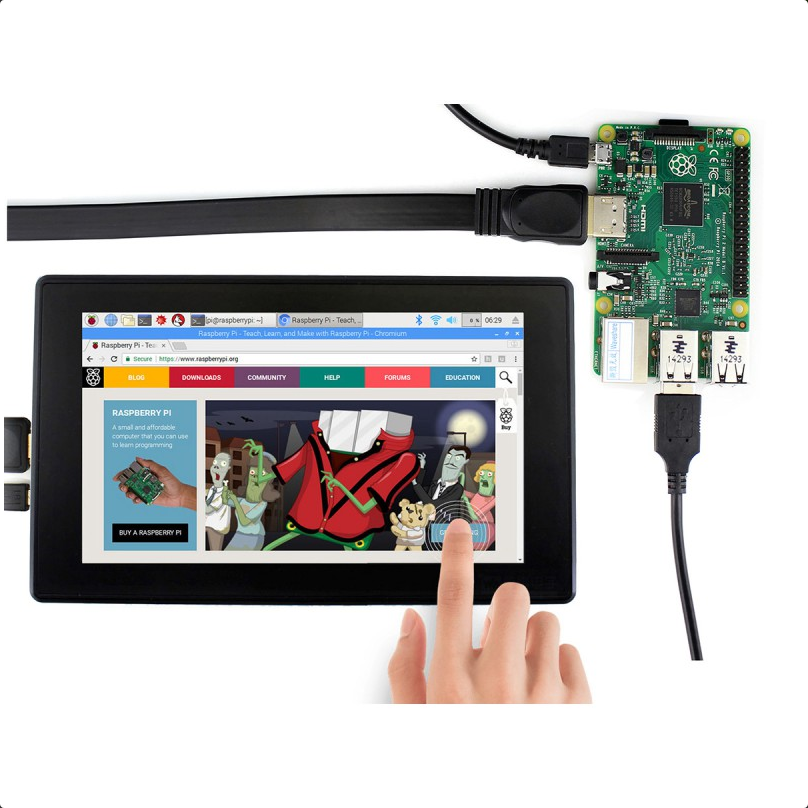

Working with Raspberry Pi 5
Working with Raspberry Pi 4
Working with Raspberry Pi Zero W
Working with AI Computer Jetson Nano

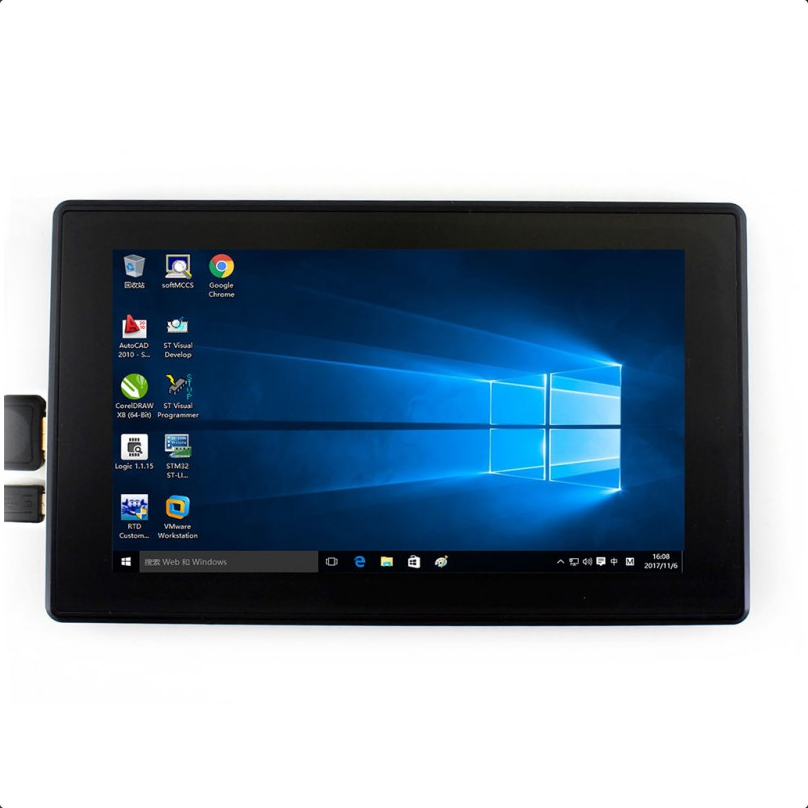

Working with mini PC
█ Display
IPS Panel
Touch Control
1) up to 5-point touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.
Enjoy Gaming
█ Features
- 7inch IPS screen,1024x600 hardware resolution, configurable by software (up to 1920x1080)
- Toughened glass capacitive touch panel, 6H hardness
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
- 3.5mm audio jack, supports HDMI audio output
- Also supports VGA input (specific cable is required and should be purchased separately)

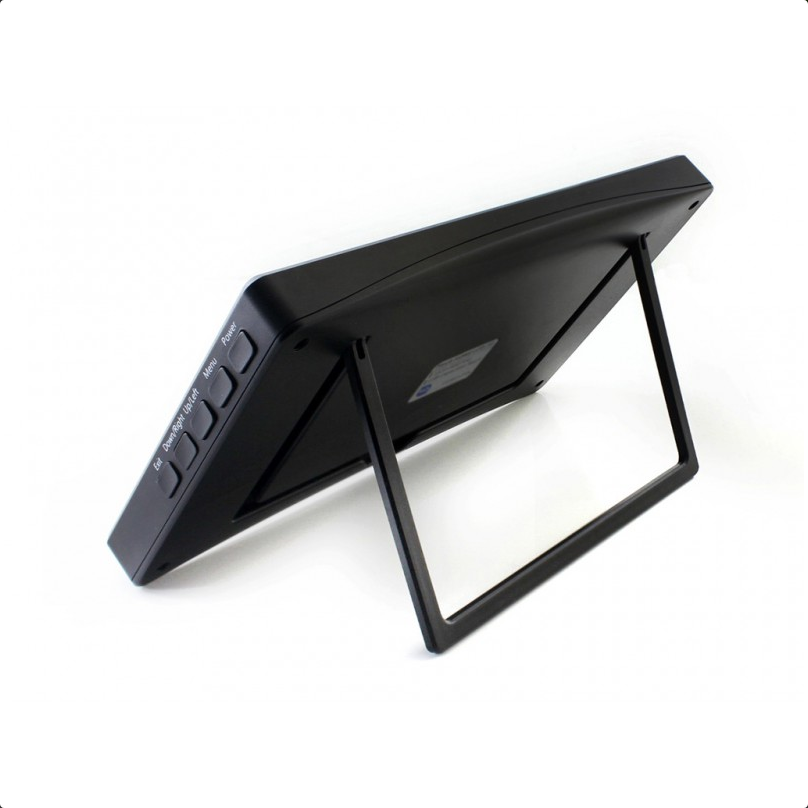

- High quality PC case, optional tilt angle: 30°/50°
█ External Dimension

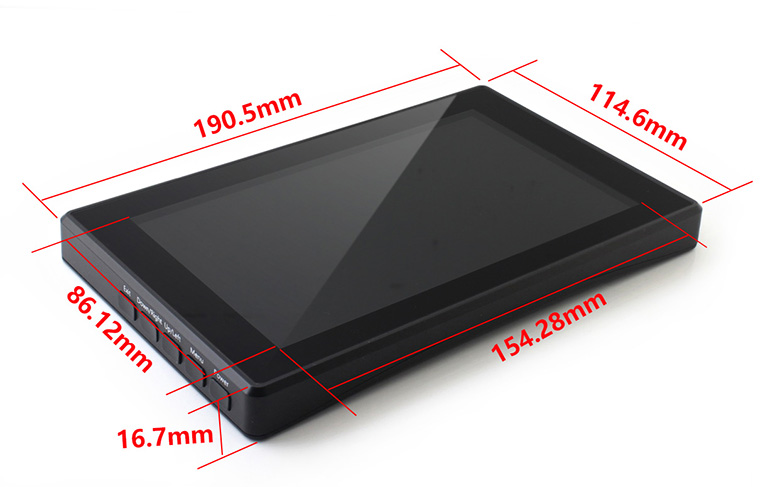

█ Appearance And Dimensions (mm)
█ Package Content
- 7inch HDMI LCD (H) (with case) x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB type A plug to micro B plug cable x1
- Quick start sheet x1
Weight: 0.408 kg
