SKU: 11199
Part Number: 7inch HDMI LCD (C)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/7inch_HDMI_LCD_(C) 7" HDMI Touch Display
7inch Capacitive Touch Screen LCD (C), 1024×600, HDMI, IPS, Low Power Consumption
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
7" |
1024×600 |
HDMI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Consumption |
Certification |
 |
 |
 |
 |
 |
Capacitive |
5-Points |
USB |
Low Power |
CE |
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 5-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch, driver free
█ Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With Mini PC

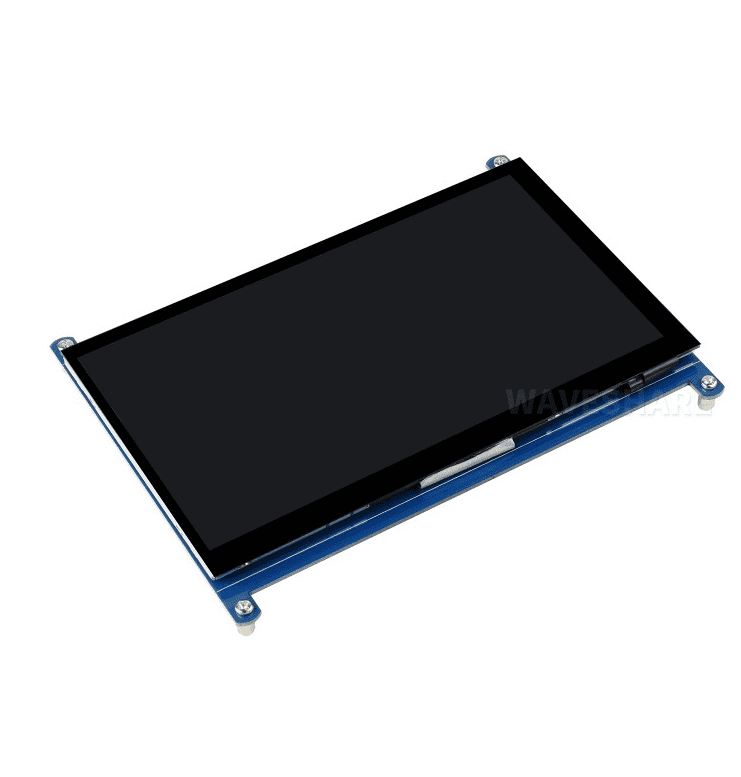

█ Display
IPS Panel

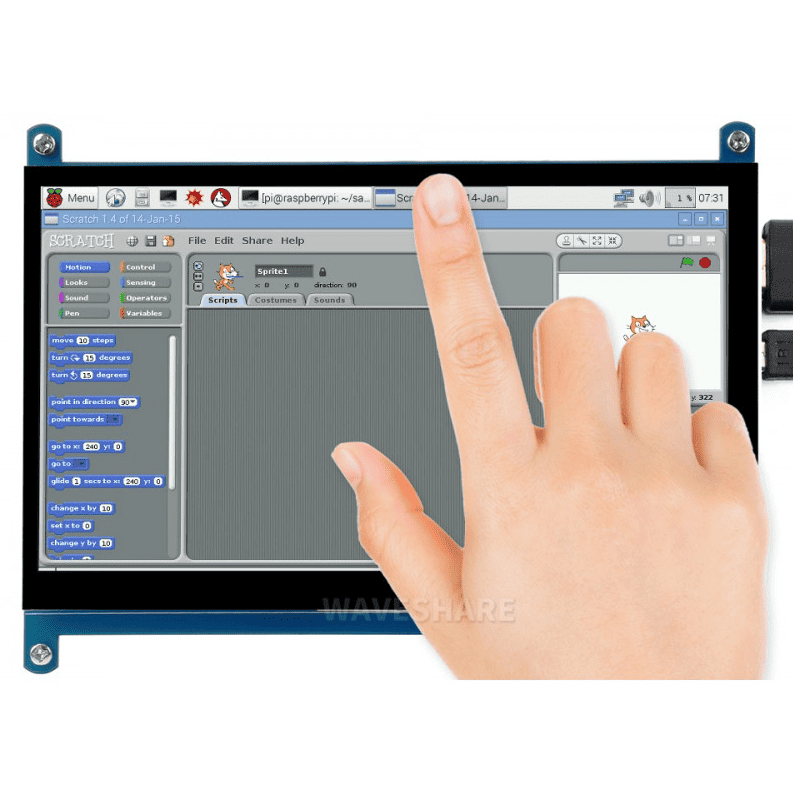

Touch Control
1) up to 5-points touch, depending on the operating system.

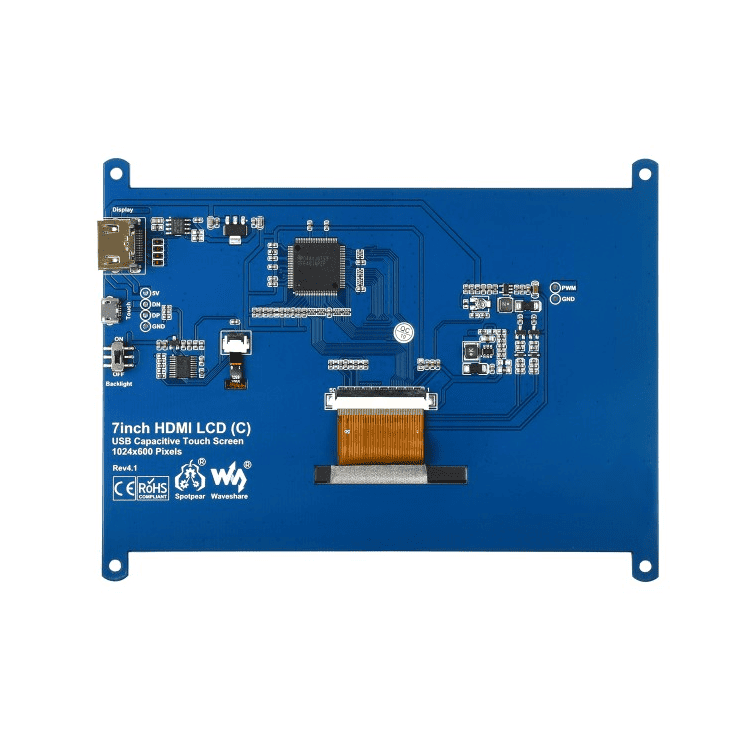

█ Design Details
- LCD FFC cable anti-interference design, more stable for industrial application
- EMI and ESD protection, in compliance with CE certification
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- USB and power input solder pads, breakout USB interface, easy for connecting external power supply
- Backlight adjustment solder pads for PWM signal input, so as to control the backlight brightness, increasing the lifetime of the display

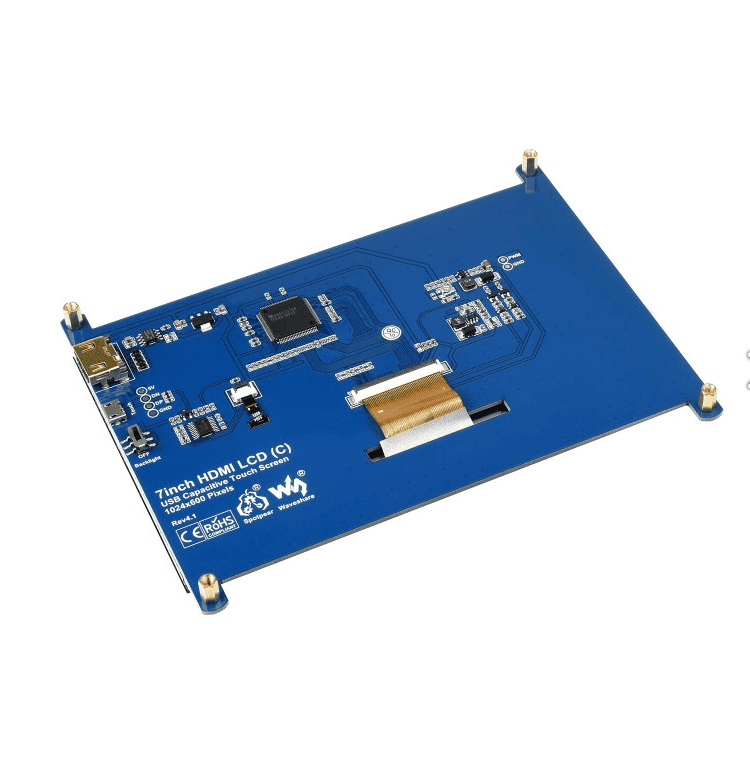

█ Appearance And Dimensions
-
█ Package Content
- 7inch HDMI LCD (C) x 1
- HDMI cable x 1
- HDMI to Micro HDMI Adapter x 1
- USB type A plug to micro B plug cable x 1
- RPi screws pack (4pcs) x 1
- Quick start sheet x1
Weight: 0.395 kg
