SKU: 24369
Part Number: 5inch 1080x1080 LCD
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/5inch_1080x1080_LCD 5″ Round Touch Display

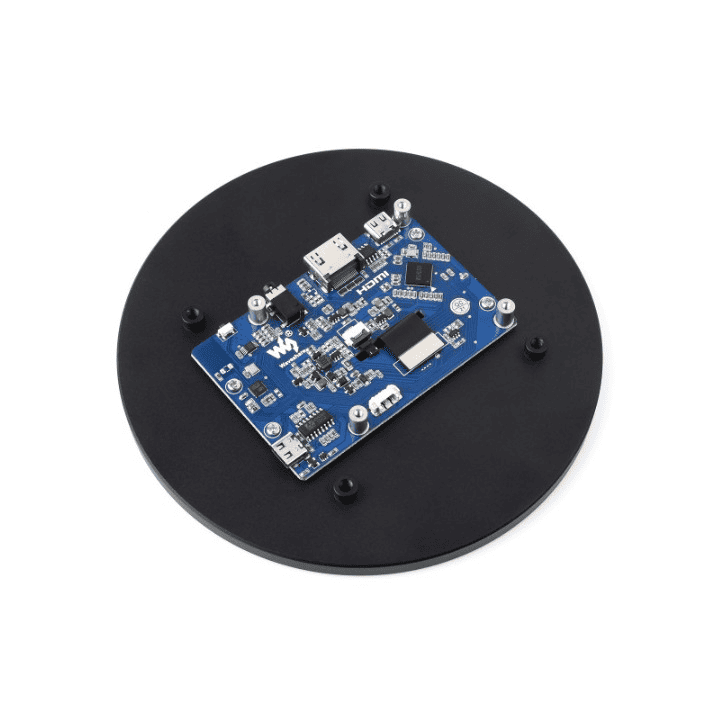

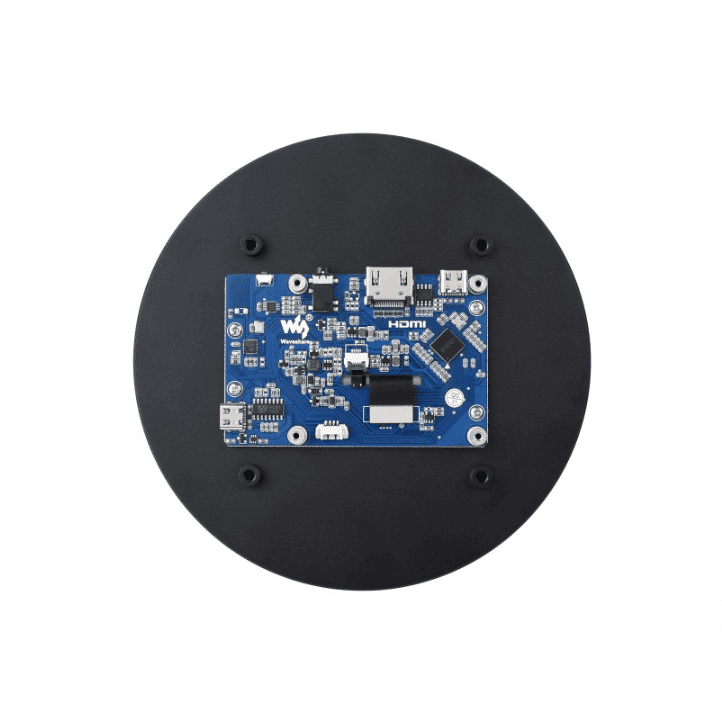

5inch HDMI Round Touch Display, 1080 × 1080, IPS, 10-Point Touch, Optical Bonding Toughened Glass Panel
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Interface |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
5" |
1080x1080 |
HDMI |
IPS |
160° |
Touch Type |
Touch Points |
Touch Interface |
Touch Panel |
Touch Panel Tech |
 |
 |
 |
 |
 |
Capacitive |
10-Point |
USB Type-C |
Toughned Glass |
Optical Bonding |
Audio
Output 1 |
Audio
Output 2 |
|
|
|
 |
 |
|
|
|
3.5 mm Jack |
4 PIN Header |
|
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
█ Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With Mini PC
for reference only, the Raspberry Pi boards are not included.
█ Display
IPS Display Panel
Excellent Display Performance With 160° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
█ Interface Introduction
█ Application Examples
Smart Home
In-vehicle Devices
Consumer Electronics
Industrial Equipments
█ Product Show
█ Dimensions
-
█ Package Content
- 5inch 1080x1080 LCD ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- USB to Type-C adapter (B) ×1
- USB to Type-C adapter (C) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screwspack ×1
Weight: 0.381 kg
