SKU: 19742
Part Number: 4inch DPI LCD (C)
Brand: Waveshare
Korisne informacije:
http://www.waveshare.com/wiki/4inch_DPI_LCD_(C) 4" HDMI IPS Display
4inch Square Capacitive Touch Screen LCD (C) For Raspberry Pi, 720×720, DPI, IPS, Toughened Glass Cover, Low Power Solution 4" Square DPI Touch Display
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Viewing Angle |
Display Port |
 |
 |
 |
 |
 |
4″ |
720×720 |
HDMI |
170° |
DPI666
(262K Colors) |
Display Panel |
Touch Type |
Touch Points |
Touch Panel |
Touch Port |
 |
 |
 |
 |
 |
IPS |
Capacitive |
5-Points |
Toughened Glass |
I2C |
Touch Panel Tech |
Touch Panel |
|
|
|
 |
|
|
|
|
Fully Laminated |
Toughened Glass |
|
|
|
█ Device & System Support
Raspberry Pi
- Based on Raspberry Pi 40PIN GPIO header
- Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
- 5-Points touch control through Raspberry Pi I2C interface
- Supports systems like Raspbian, Kali, Ubuntu mate...
- Supports future version which is backward compatible
█ Connection Examples

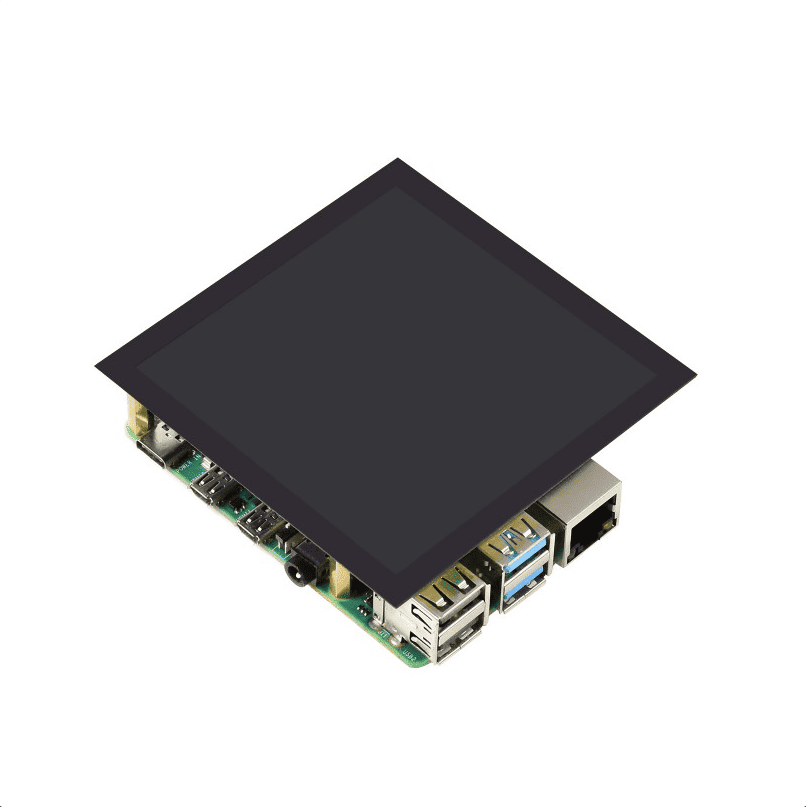

Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W

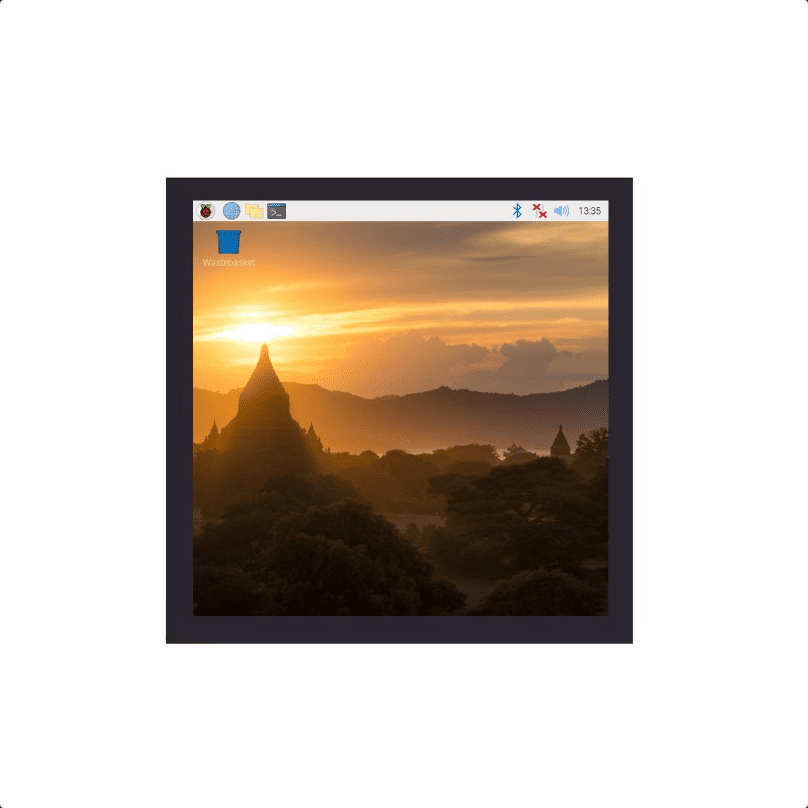

█ Display
IPS Panel

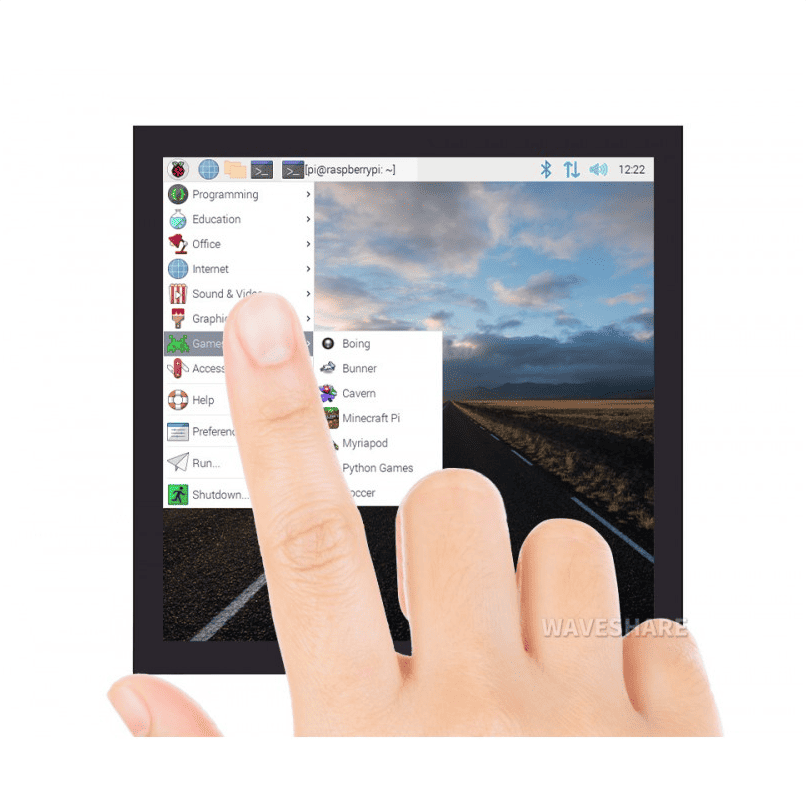

Touch Control
1) up to 5-points touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.

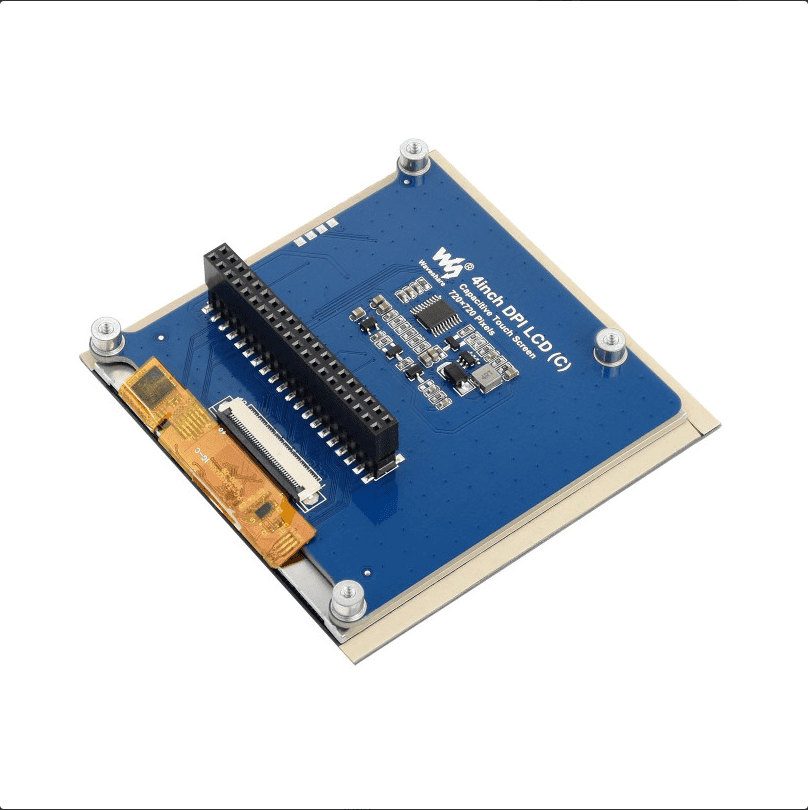

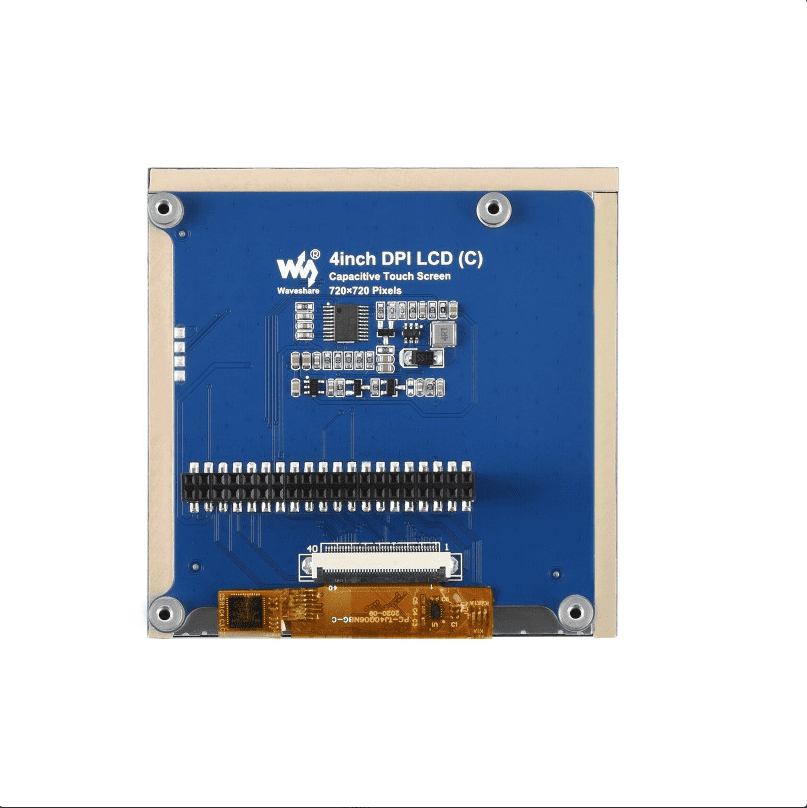

█ Appearance And Dimensions
-
█ Package Content
-
2. |
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- 4inch DPI LCD (C) x1
- Screws pack x1
Weight: 0.079 kg
