SKU: 24783
Part Number: 4.3inch DSI QLED
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/4.3inch_DSI_QLED 4.3″ DSI QLED Touch Display
4.3inch HDMI QLED LCD Touch Display, 800×480, Integrated Structure, Multi-point Touch
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Viewing Angle |
Consumption |
 |
 |
 |
 |
 |
4.3″ |
800×480 |
DSI |
160° |
Low Power |
Display Panel |
Touch Type |
Touch Points |
Touch Panel |
Touch Port |
 |
 |
 |
 |
 |
QLED |
Capacitive |
5-Points |
Toughened Glass |
I2C |
|
Certification 1 |
Certification 2 |
|
|
|
 |
 |
|
|
|
CE |
RoHS 2.0 |
|
|
█ Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie / RoPieee, driver free
Supports Pi 5/4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4*
* CM3/3+/4 requires extra adapter cable
VisionFive2
Supports Debian, single point touch, driver free
Core3566
Supports Debian / Ubuntu, 5-point touch, driver free
█ Connection Examples
Integrated Structure Design
DSI One-Cable Communication For Embedding Engineering Applications Quickly
Provide Secondary Development Resources To Help Simple Development

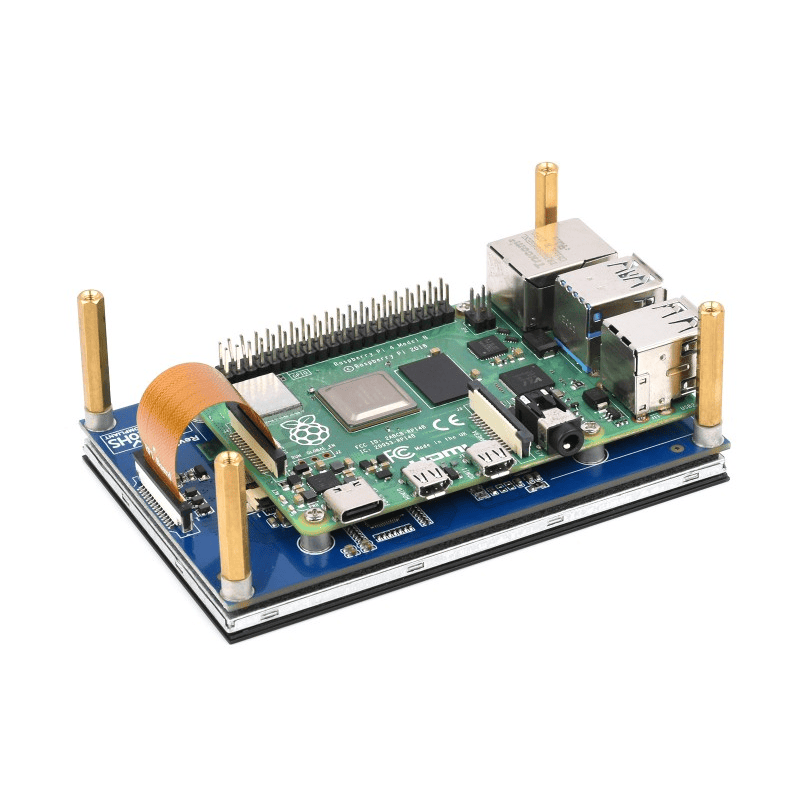

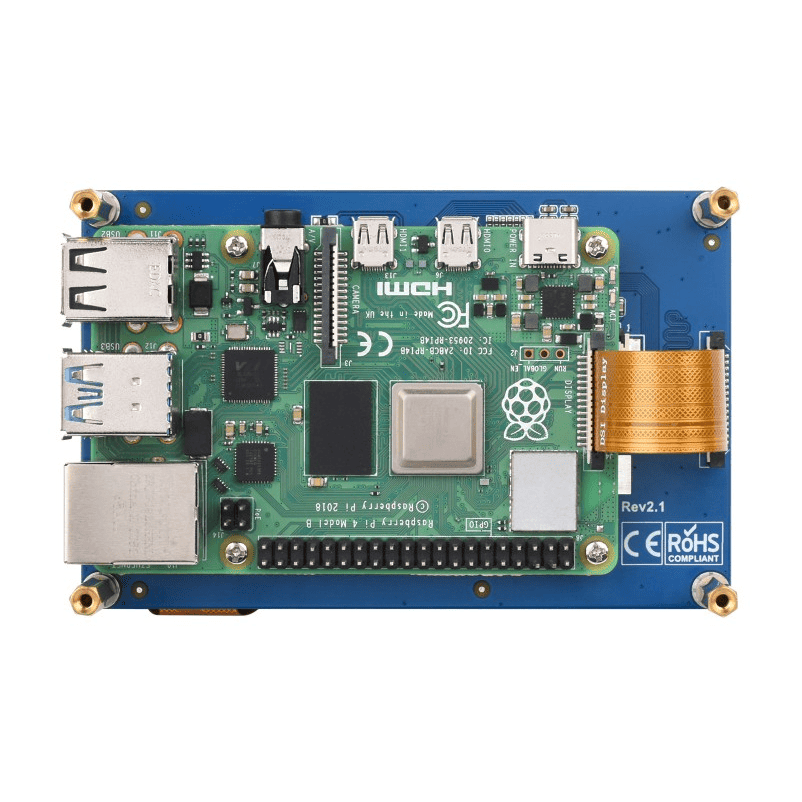

Working With Raspberry Pi 4B Via DSI Interface
Working With Raspberry Pi 3B+ Via DSI Interface
for reference only, the Raspberry Pi boards are not included.

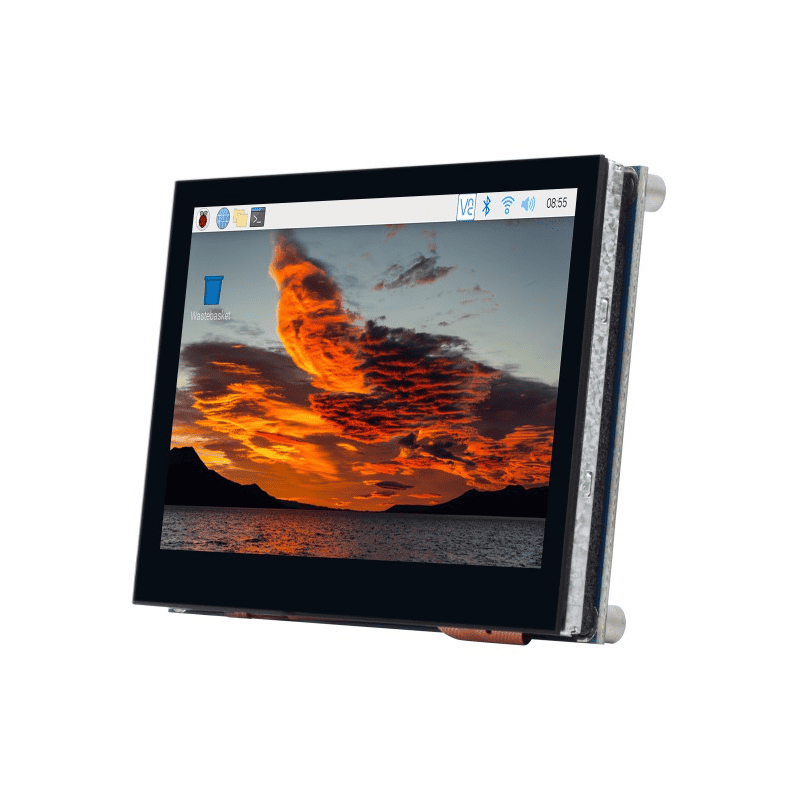

█ Display
QLED Display Panel
Excellent Display Performance With 160° Wide Viewing Angle
QLED Quantum Dot Technology
Wider Color Gamut, Color Gamut Of This QLED Display Is Up To: SRGB 92%, NTSC 78%
More Pure Chroma
Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid
Longer Lifetime
Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation
5-Point Capacitive Touch
Gently Touch, And See What You Get, Enjoy Multi-Point UI Interaction Via Flexible Operation. Adapting Touch Function With I2C Signal, Support 5-Point Touch *
* the actual touch points depends on the operating system
Adjustable Brightness Via Software
█ Product Show
█ Dimensions
-
█ Package Content
- 4.3inch DSI QLED x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
- DSI-Cable-12cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- Screws pack x1
1
2
3
4
5
Weight: 0.129 kg
