SKU: 15932
Part Number: 4.3inch HDMI LCD (B)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/4.3inch_HDMI_LCD_(B) 4.3" HDMI Touch Display
4.3inch, 800x480, Capacitive Touch Screen LCD, HDMI Interface, Supports Multi Mini-PCs, Multi Systems
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Viewing Angle |
OSD Menu |
 |
 |
 |
 |
 |
4.3″ |
800×480 |
HDMI |
160° |
Brightness / Contrast |
Display Panel |
Touch Type |
Touch Points |
Touch Port |
Certification |
 |
 |
 |
 |
 |
IPS |
Capacitive |
5-Points |
USB-C |
CE |
Audio
Output 1 |
Audio
Output 2 |
Gaming |
|
|
 |
 |
 |
|
|
3.5 mm Jack |
4 PIN Header |
Xbox360 / PS4 / Switch |
|
|
█ Overview
- IPS screen, 800x480 hardware resolution, configurable by software (up to 1920x1080)
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

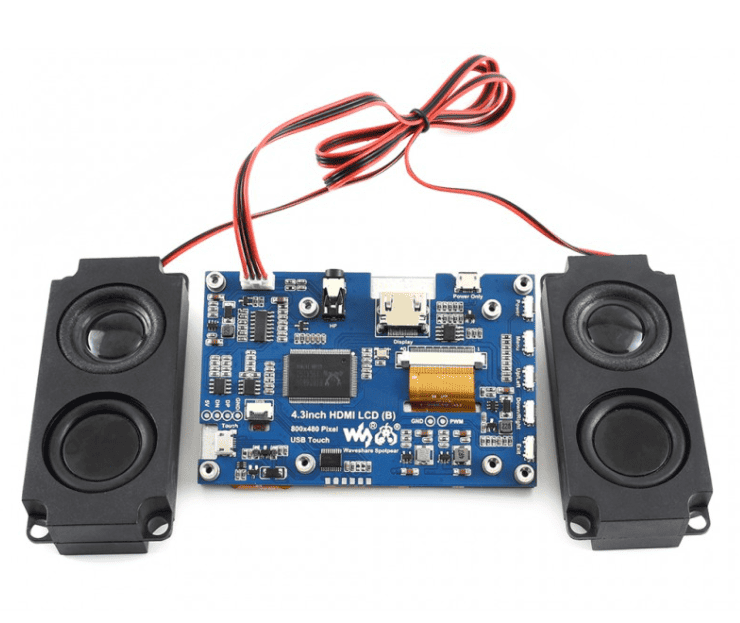

- 3.5mm audio jack, speaker connector, supports HDMI audio output
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 5-points touch, driver free

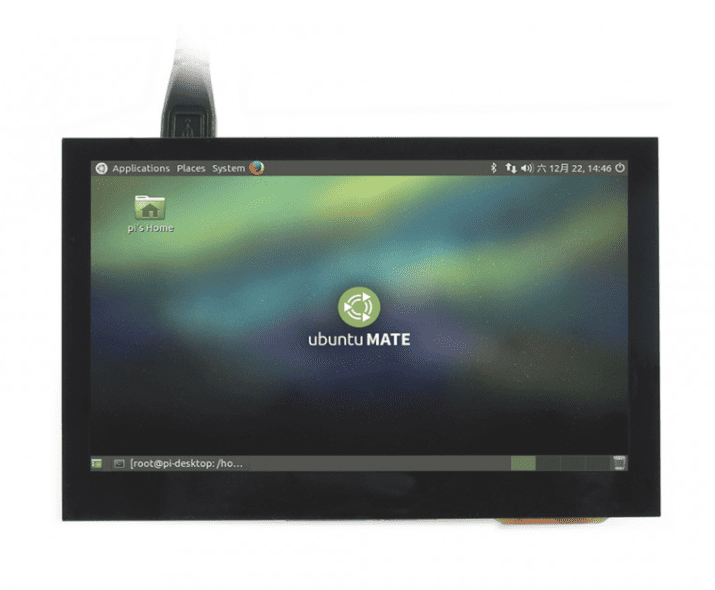

- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-points touch, driver free
Game Console
█ Connection Examples

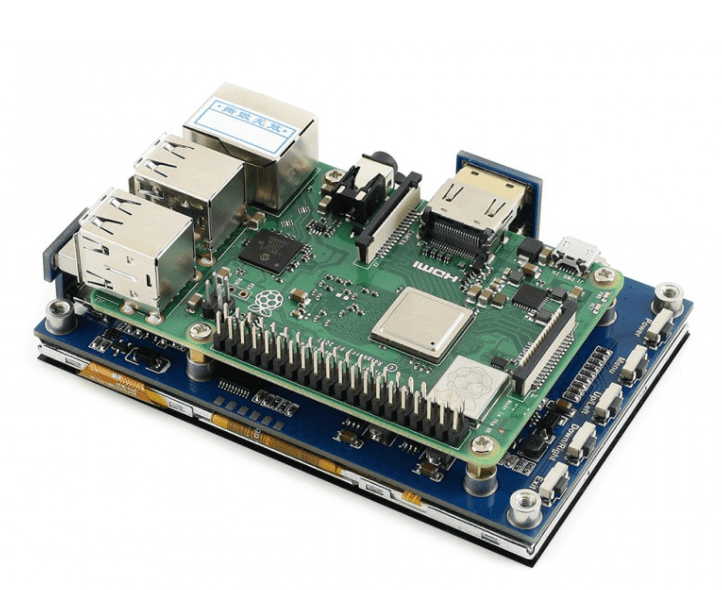

Working with Raspberry Pi 4
Working with Raspberry Pi Zero W
Working with AI Computer Jetson Nano
Working with mini PC
█ Display
IPS Panel
Touch Control
1) up to 5-points touch, depending on the operating system.
Enjoy Gaming
█ Appearance and Dimensions
█ Package Content
-
- 4.3inch HDMI LCD (B) x1
- HDMI cable x1
- USB type A plug to micro B plug cable x1
- HDMI adapter (B) x1
- USB adapter (B) x1
- HDMI to Micro HDMI adapter (C) x1
- USB adapter (C) x1
- Screws pack x1
Weight: 0.185 kg
Note: Raspberry Pi and Speaker (8Ω 5W) are NOT included.
