SKU: 12824
Part Number: 3.5inch HDMI LCD
Brand: Waveshare
Wiki: 3.5inch_HDMI_LCD 3.5inch HDMI LCD

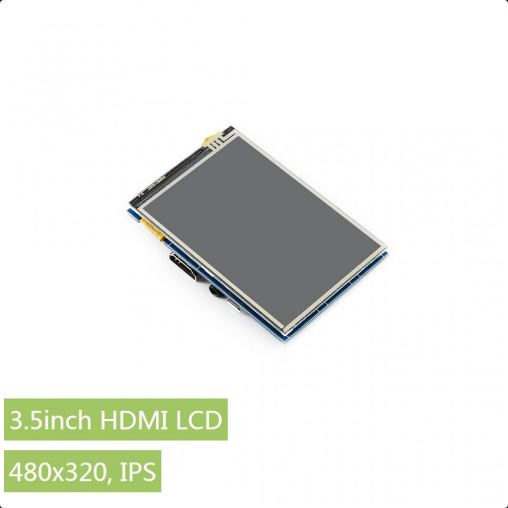

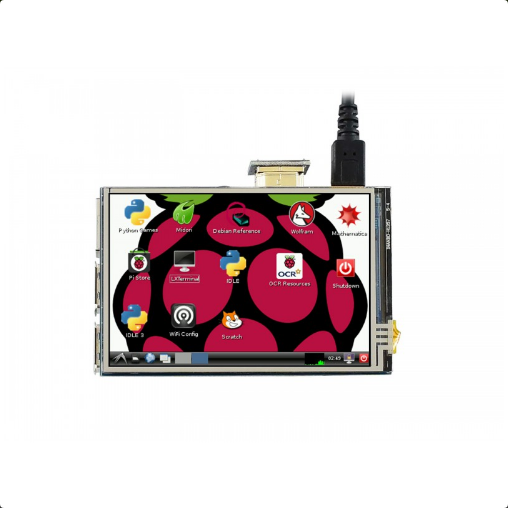

480x320, 3.5inch Resistive Touch Screen LCD, HDMI interface, IPS Screen, Designed for Raspberry Pi
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Features
- 480x320 hardware resolution, software configurable up to 1920x1080
- Resistive touch control
- IPS technology, high quality and perfect displaying from very wide viewing angle
- Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
- Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
- Supports FBCP software driver as well, allows to config software resolution and set up dual-display
- Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
- HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
- Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
- Supports 100-level backlight adjustment
- Supports HDMI audio output
3.5" HDMI Touch Display
Device & System Support
Raspberry Pi
Supports Raspbian / Ubuntu / Kali / Retropie, driver provided
Supports all versions of Raspberry Pi
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, no touch (additional HDMI cable required)
Connection Examples

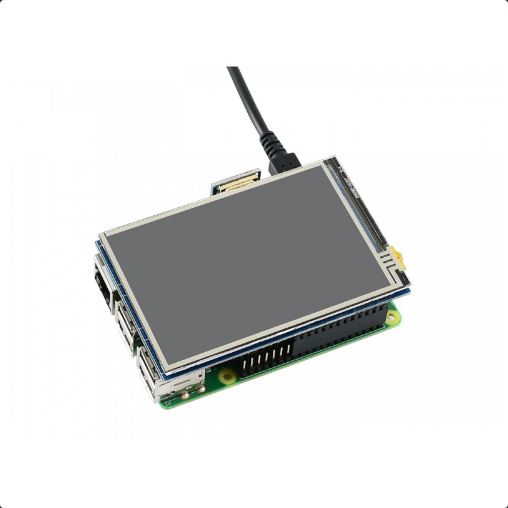

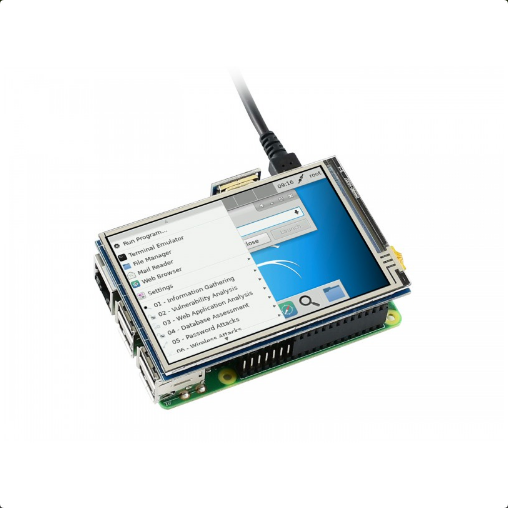

Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With Mini PC
Display
IPS Panel
Touch Control
Comes With Touch Pen
Enjoy Gaming

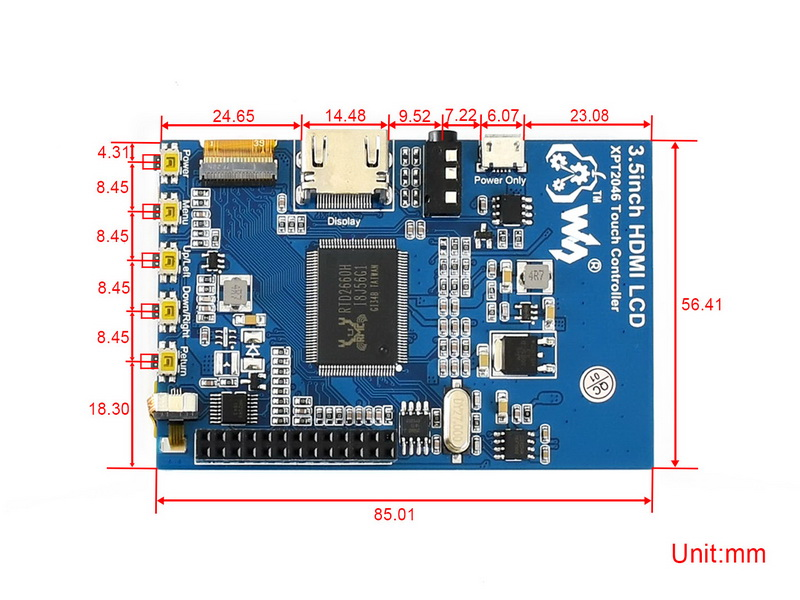

Appearance And Dimensions

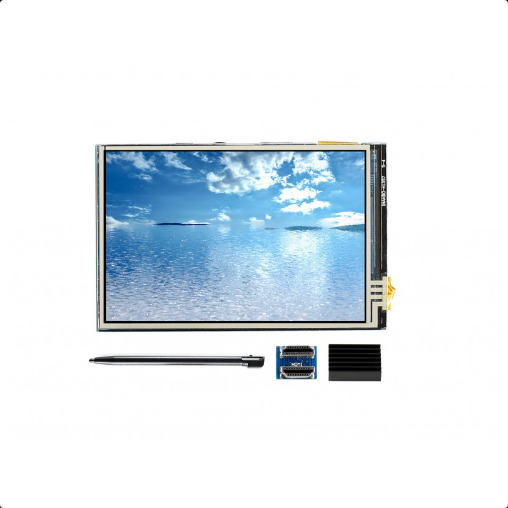

█ Package Content
- 3.5inch HDMI LCD x1
- HDMI connector x1
- HDMI to micro HDMI connector x1
- Touch pen x1
- Aluminium heat sink x1
- Quick start sheet x1
Weight: 0.092 kg
