SKU: 17344
Part Name: 2inch LCD Module
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/2inch_LCD_Module 2 inch LCD Module
2 inch LCD Display Module, IPS Screen, 240×320 Resolution, SPI Interface
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Overview

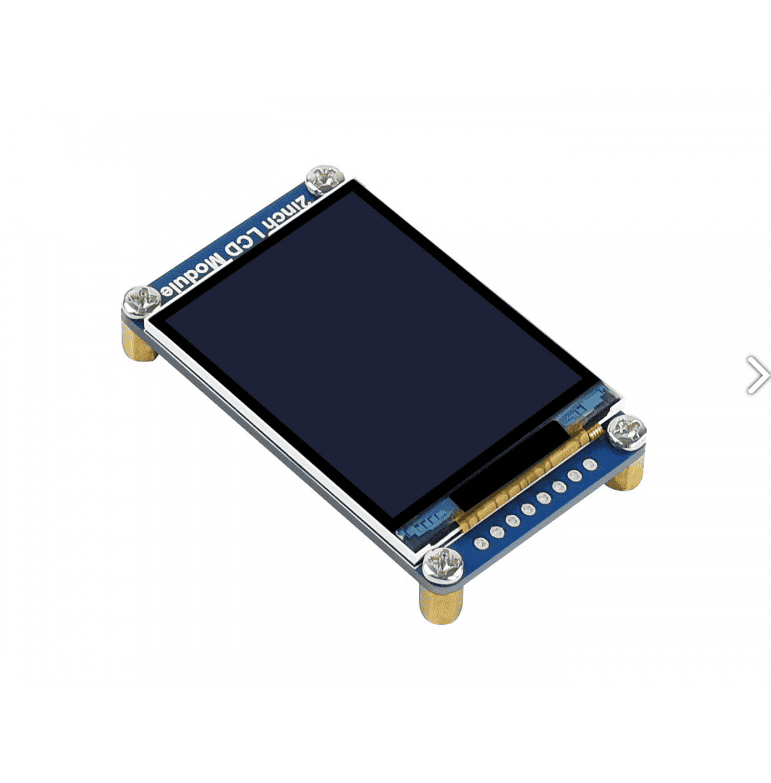

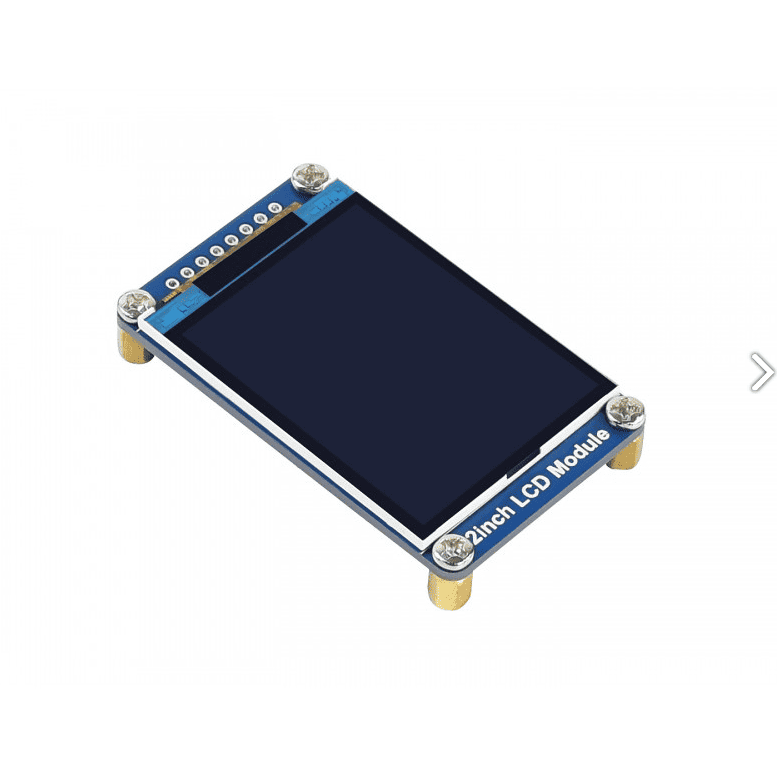

This is a general LCD display module, IPS screen, 2 inch diagonal, 240×320 resolution, with embedded controller, communicating via SPI interface.
█ Features
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
█ Specifications
- Driver: ST7789
- Interface: SPI
- Display color: RGB, 262K color
- Resolution: 240×320
- Backlight: LED
- Operating voltage: 3.3V
█ Onboard SPI Control Interface
For Use With Controller Boards Like Raspberry Pi / VisionFive2 / Arduino / STM32

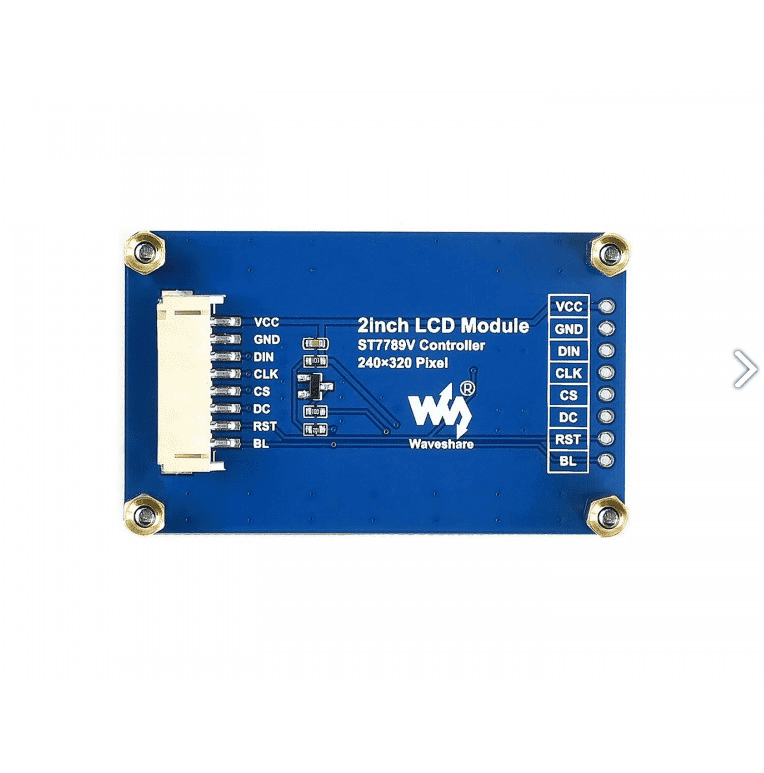

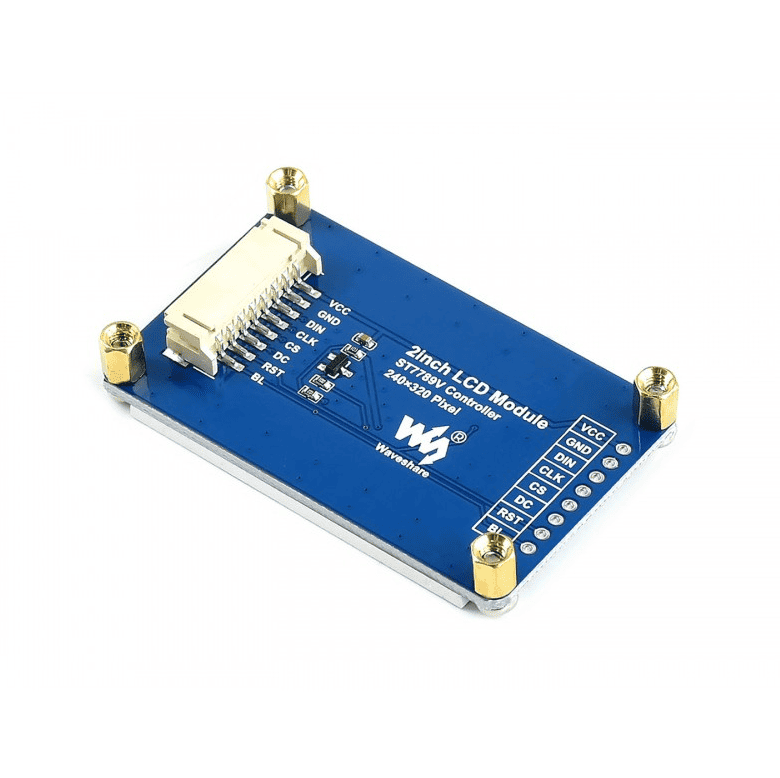

SYMBOL |
DESCRIPTION |
VCC |
Power (3.3V input) |
GND |
Ground |
DIN |
SPI data input |
CLK |
SPI clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
BL |
Backlight |
Hardware connection Connecting with Raspberry Pi
Connecting with Arduino board

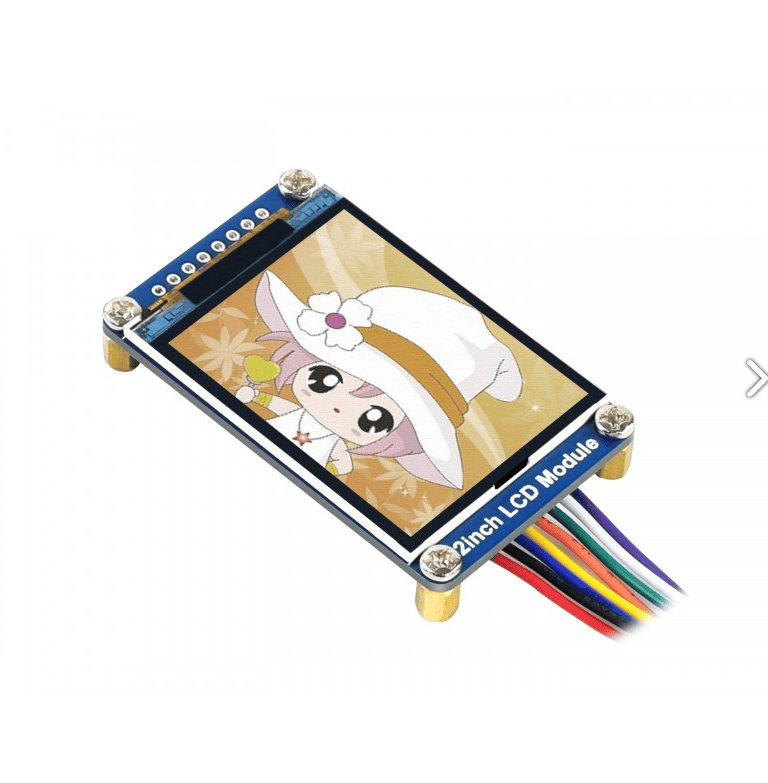

Product Show
Outline dimensions
-
█ Package Content
1. |
 |
2. |
 |
|
|
|
|
- 2inch LCD Module x1
- PH2.0 20cm 8Pin x1
Weight: 0.024 kg
