Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...
2.9"
296×128
>170°
Black and White
2
SPI
E-paper
Paper-like
Eye Care, No Bluelight
Ambient Light Required
Passively Reflective
Ultra Low
Persists without Power
Partial Refresh Support| OPERATING VOLTAGE | 3.3V/5V | GREY SCALE | 2 |
|---|---|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI | PARTIAL REFRESH TIME | 0.3s |
| OUTLINE DIMENSIONS | 82.00 × 38.00mm | FULL REFRESH TIME | 2s |
| DISPLAY SIZE | 66.89 × 29.05mm | REFRESH POWER | 26.4mW(typ.) |
| DOT PITCH | 0.226 × 0.227mm | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 296×128 pixels | VIEWING ANGLE | >170° |
| DISPLAY COLOR | black, white |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

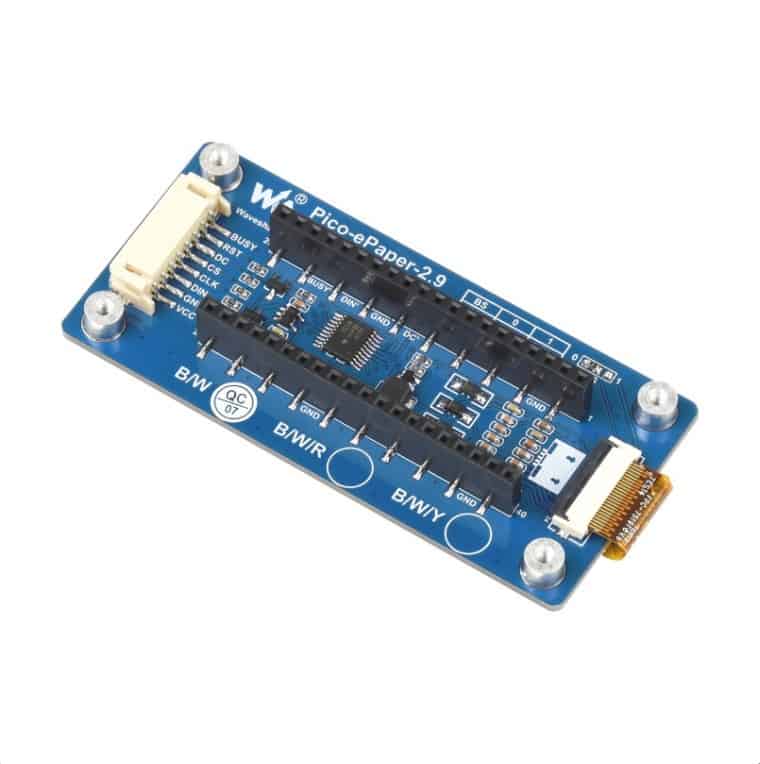

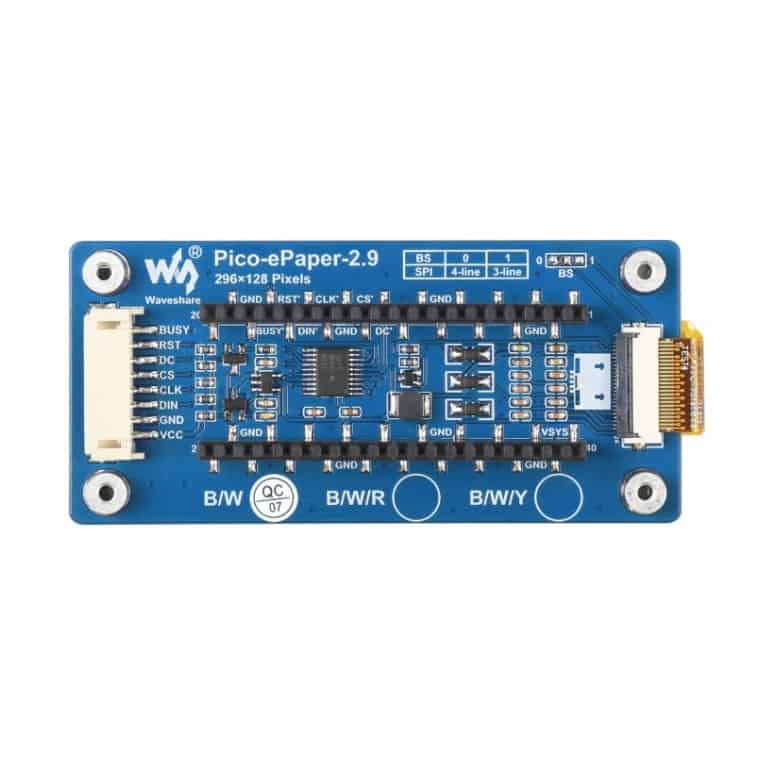

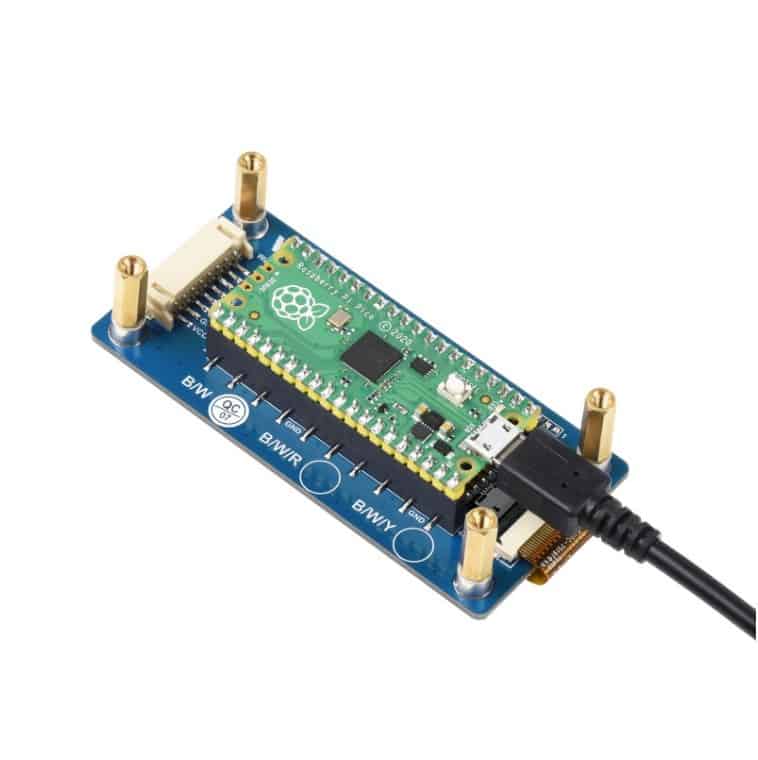

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
