SKU: 18207
Part Name: 15.6inch HDMI LCD (for EU)
Brand: Waveshare
Korisne informacije:: http://www.waveshare.com/wiki/15.6inch_HDMI_LCD 15.6" HDMI Touch Display
15.6 inch Capacitive Touch Screen LCD with Toughened Glass Cover, 1920×1080, HDMI, IPS, Various Devices & Systems Support
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
15.6" |
1920×1080 |
HDMI |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB |
Toughened Glass |
Brightness, Contrast |
Audio Output |
Certification |
Gaming |
|
|
 |
 |
 |
|
|
3.5mm Jack |
CE |
Xbox360/ PS4/Switch |
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Game Console
█ Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC

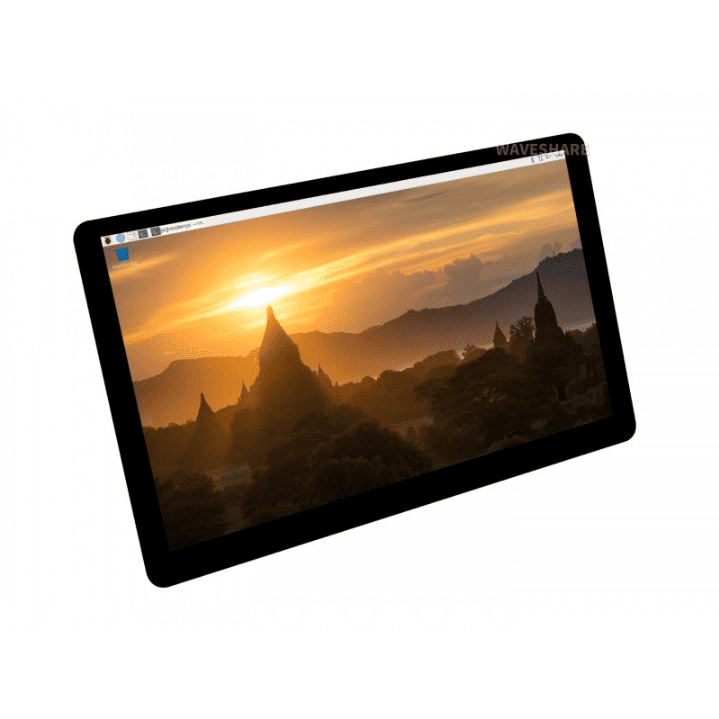

█ Display
IPS Panel

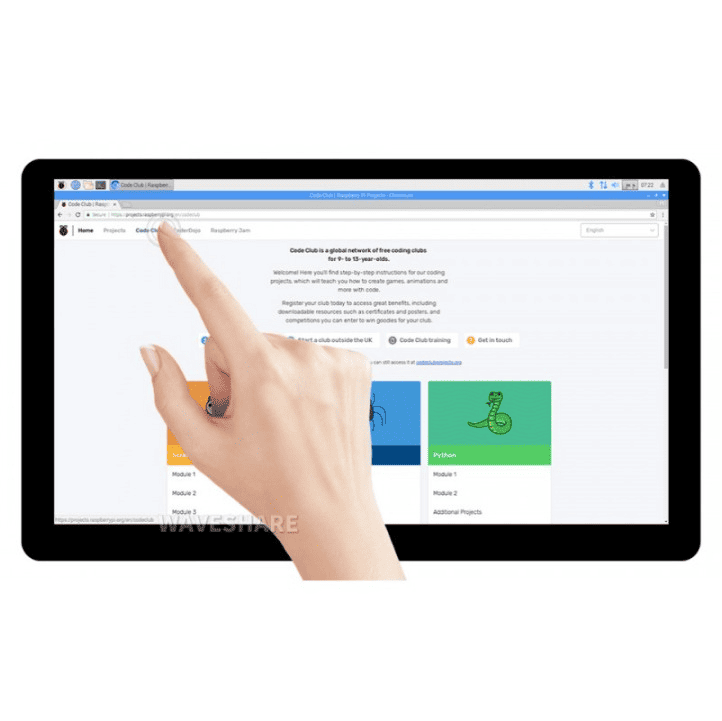

Touch Control
1) up to 10-point touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.
Enjoy Gaming
█ Appearance And Dimensions (mm)
█ Package Content
- 15.6inch HDMI LCD x1
- Power adapter 12V x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB-A to Micro-B cable x1
- Triangular stand x1
- Button board cable x1
- Button board x1
Weight: 1.338 kg
