SKU: 17978

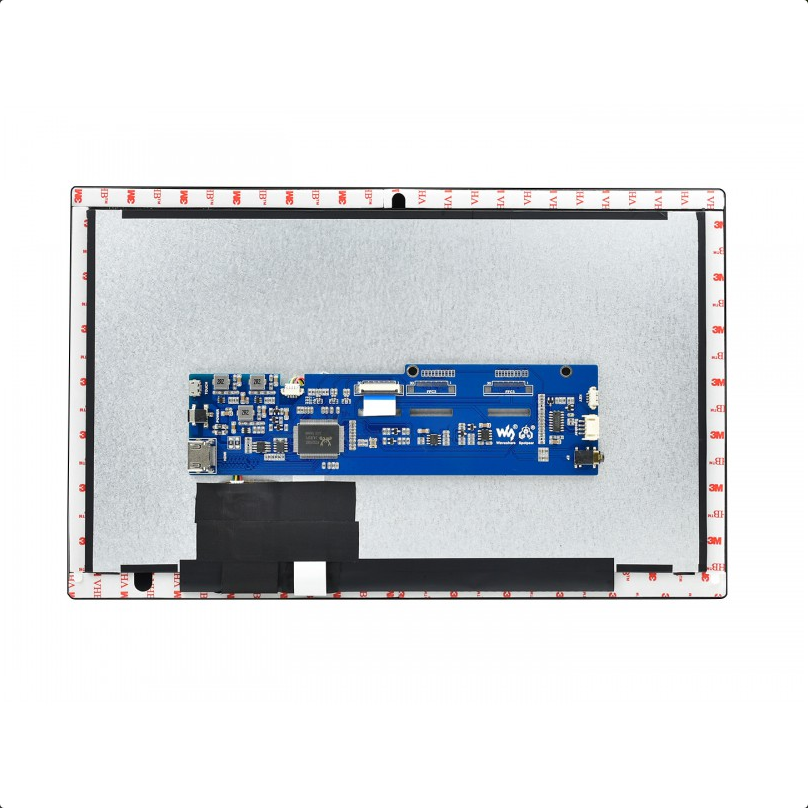

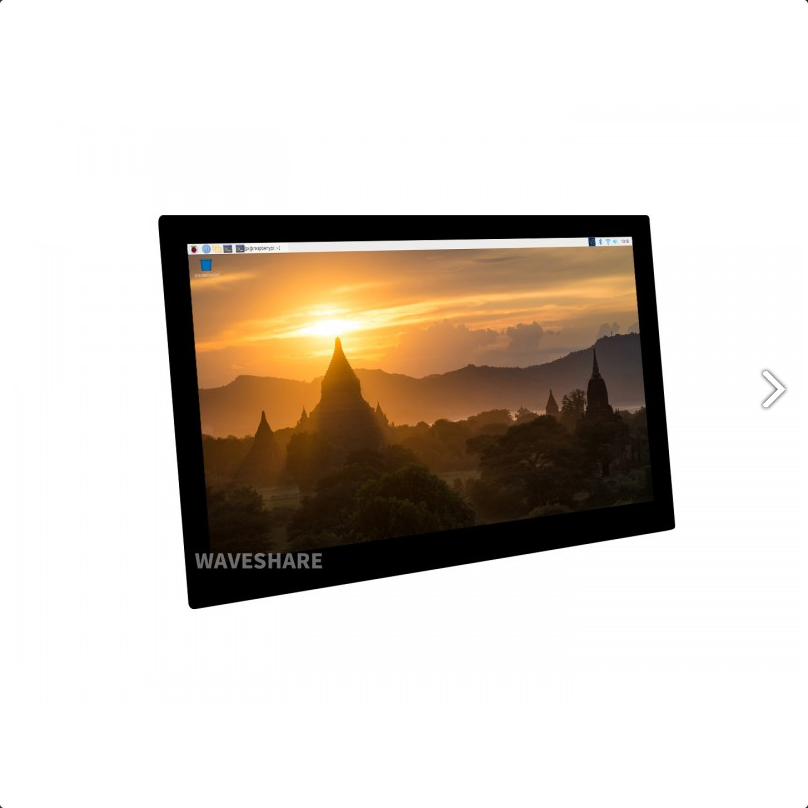

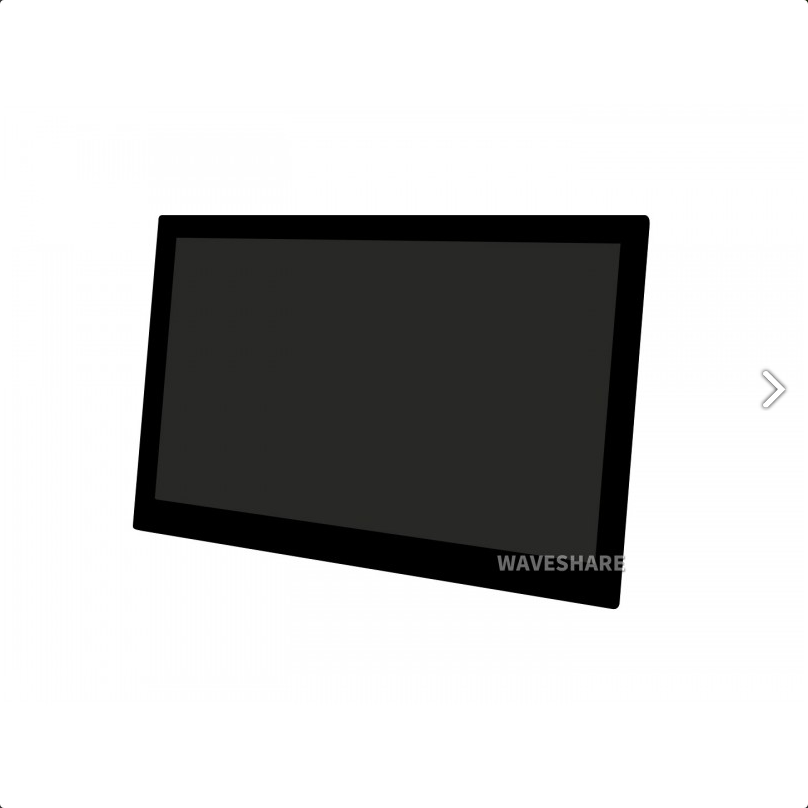

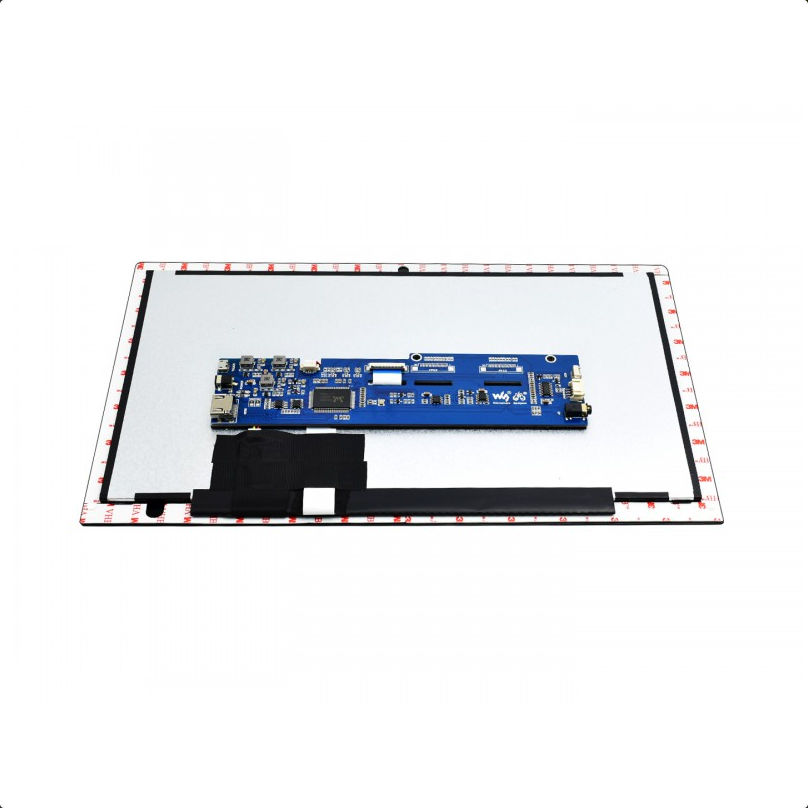

Part Name: 13.3inch HDMI LCD (H) (for EU)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/13.3inch_HDMI_LCD_(H) 13.3" HDMI Touch Display
13.3 inch Capacitive Touch Screen LCD with Toughened Glass Cover, 1920×1080, HDMI, IPS, Various Devices & Systems Support
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
13.3" |
1920×1080 |
HDMI |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
OSD Menu |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB |
Toughened Glass |
Brightness, Contrast |
Audio Output 1 |
Audio Output 2 |
Gaming |
|
|
 |
 |
 |
|
|
3.5 mm Jack |
Speaker Header |
Xbox360/ PS4/Switch |
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 10-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free
Game Console
█ Connection Examples
Working with Raspberry Pi 4
Working with Raspberry Pi Zero W
Working with AI Computer Jetson Nano
Working with mini PC
█ Display
IPS Panel
Touch Control
1) up to 10-points touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.
Enjoy Gaming
█ Appearance and Dimensions (mm)
█ Package Content
- 13.3inch HDMI LCD (H) x1
- Power adapter 12V x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB A to Micro-B cable x1
- Triangular stand x1
- Button board cable x1
- Button board x1
Weight: 0.935 kg
