SKU: 22841

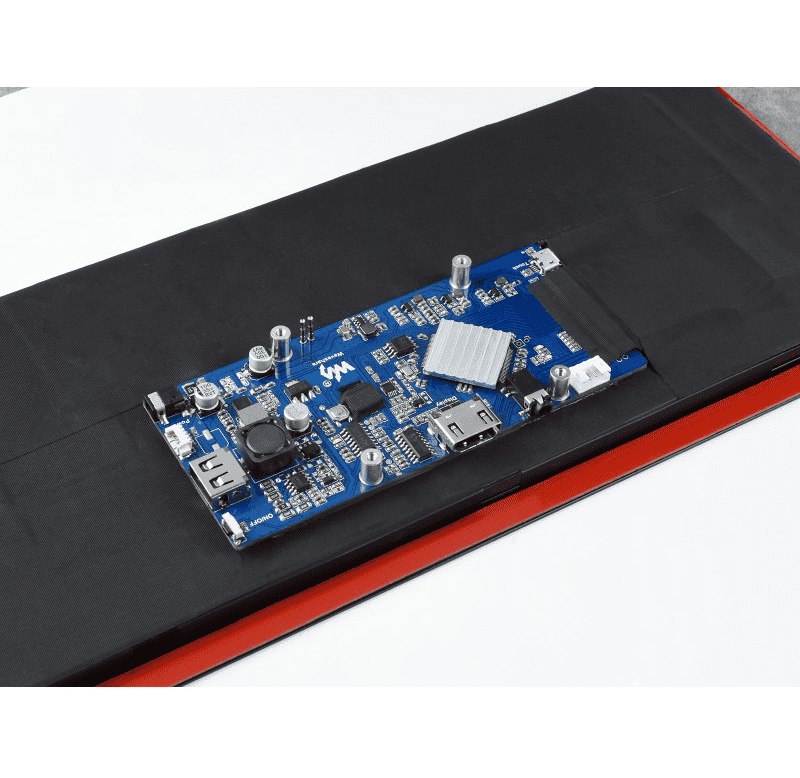

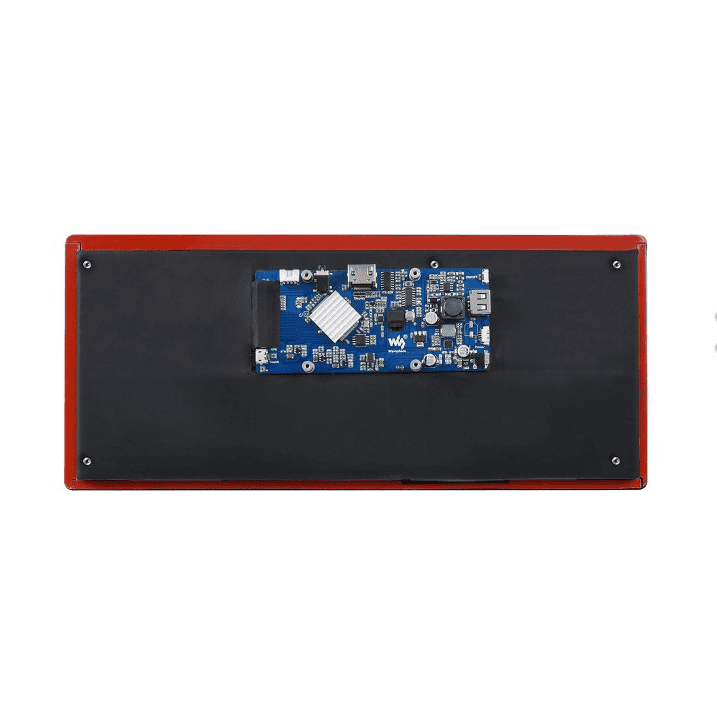

Part Name: 12.3inch HDMI LCD (EU)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/12.3inch_HDMI_LCD 12.3″ HDMI Touch Display
12.3 inch Capacitive Touch Screen LCD, 600 Cd/M², 1920×720, HDMI, IPS, Toughened Glass Panel
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
12.3" |
1920×720 |
HDMI |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Touch Panel Tech |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB |
Toughened Glass |
Optical Bonding |
OSD Menu |
Audio Output 1 |
Audio Output 2 |
Brightness |
Temperature Range |
 |
 |
 |
 |
 |
Brightness / Contrast |
3.5 mm Jack |
4 PIN Header |
600 cd/m² |
-20~70 °C |
█ Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver fre
█ Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4
Working With Raspberry Pi Pi 3B+
Working With AI Computer Jetson Nano
Working With Mini PC
Working With Tinker Board 2
█ Display
IPS Panel
Touch Control
1) up to 10-points touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.
█ Application Examples
█ Design Features
█ Appearance & Dimmensions (mm)
-
█ Package Content
 |
2. |
 |
3. |
 |
4. |
 |
5. |
 |
6. |
 |
7. |
 |
8. |
 |
9. |
 |
10. |
 |
11. |
 |
|
|
|
|
- 12.3inch HDMI LCD x1
- HDMI cable x1
- USB-A to micro-B cable x1
- HDMI Adapter (B) x1
- USB Adapter (B) x1
- HDMI Adapter (C) x1
- USB Adapter (C) x1
- 4PIN wire ~9CM x1
- Button board x1
- 12V 3A power adapter x1
- Screws pack x1
Weight: 1.235 kg
