SKU: 25510
Part Number: PICO-DVI-10.1inch
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/PICO-DVI 10.1 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication
10.1 inch DVI Display Module for Pico
Comes with Raspberry Pi Pico C/C++ demo and resources
Features at a glance
- Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle
- Adopts DVI interface for higher communication speed
- Based on the Raspberry Pi Pico with onboard 40PIN header
- Built in OSD menu for brightness/contrast adjustment
- Available in 7inch and 10.1inch display sizes
- Suitable for advertisement picture display and other application scenarios
- Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)
*Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.
Version Options
10.1inch Specifications
Operating voltage |
5V |
Resolution |
1024×600 pixels |
Communication Interface |
DVI |
DISPLAY PANEL |
IPS |
Display size |
10.1inch: 222.72×125.28mm |
PIXEL SIZE |
10.1inch: 0.2175×0.2088mm |
Raspberry Pi Pico Header Compatibility

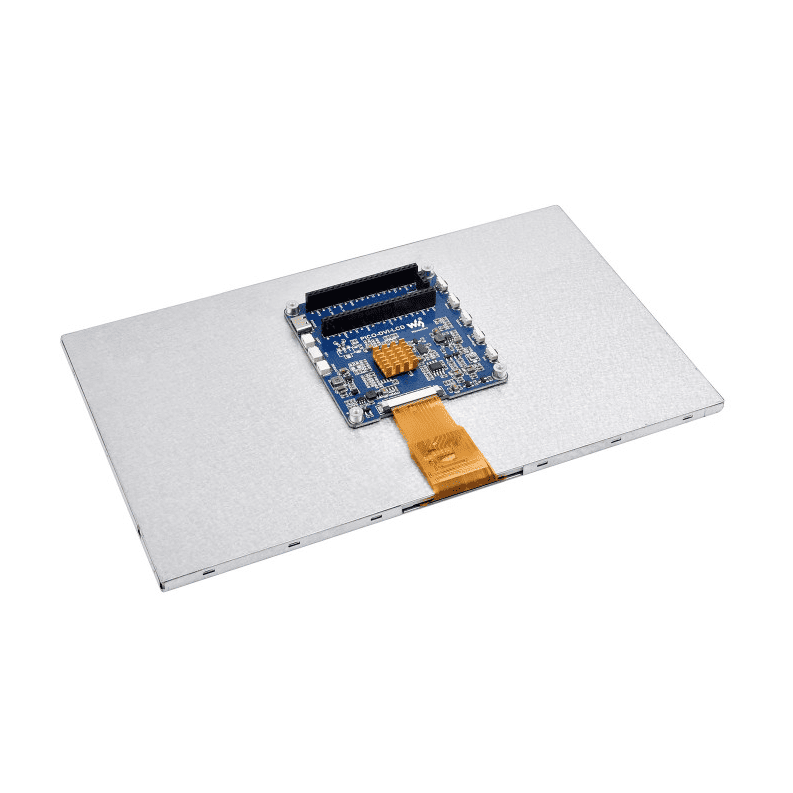

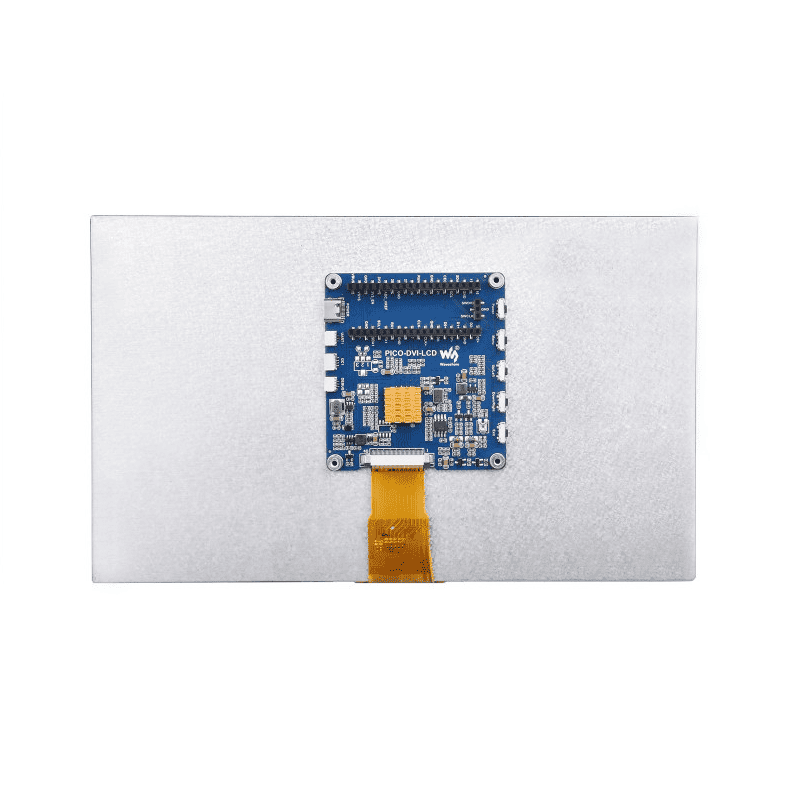

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

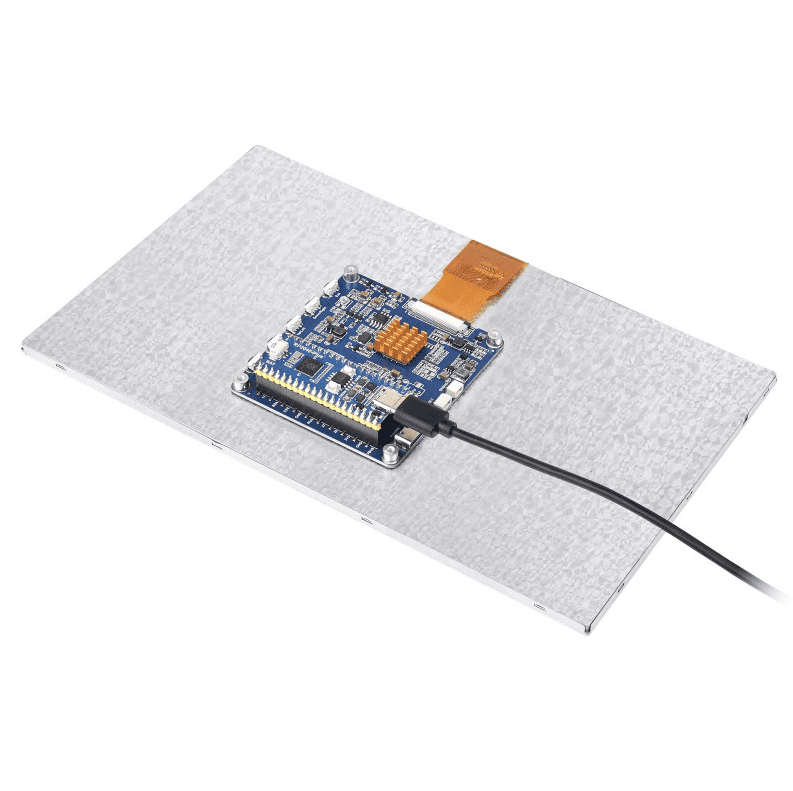

Connect to Raspberry Pi Pico WH

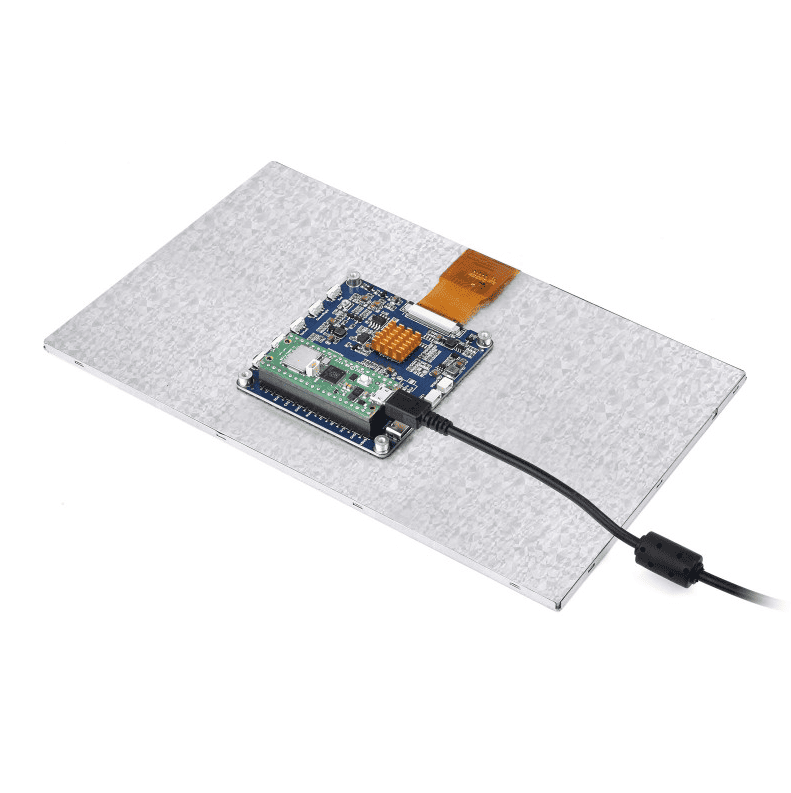

Connect to RP2040-Plus for reference only, the Pico and RP2040-Plus are NOT included
Pin definition
Interface Introduction

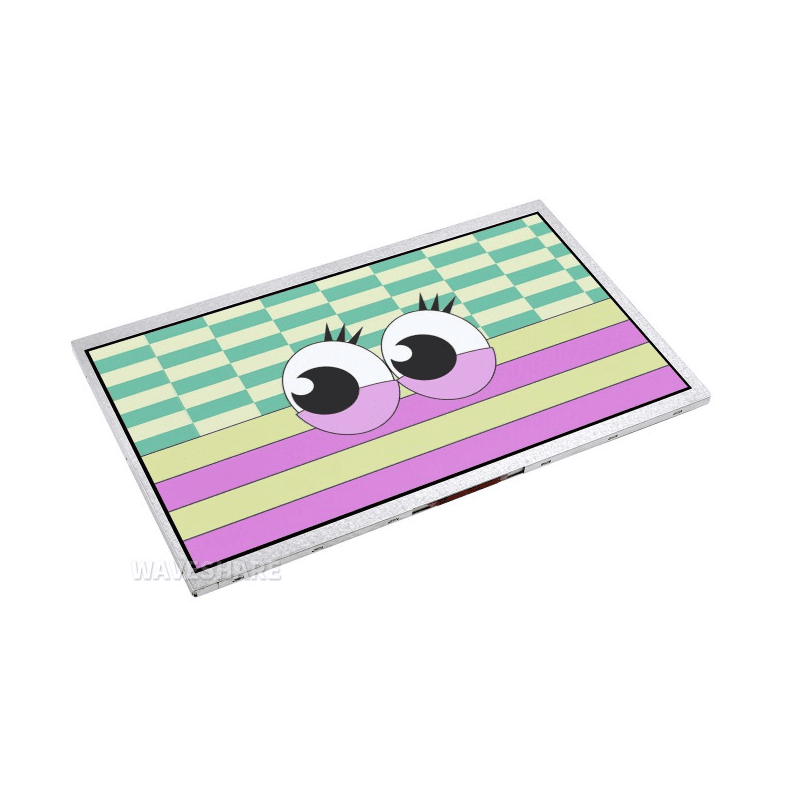

Product Show
Outline dimensions
- PACKAGE CONTENT
Weight: 0.271 kg
PICO-DVI-10.1inch x1
