SKU: 24646
Part Name: 10.4HP-CAPQLED (EU)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/10.4HP-CAPQLED zvučnici za ovaj displej 10.4″ QLED Touch Display
10.4inch QLED Quantum Dot Display, Capacitive Touch, High Brightness, 1600×720, Optical Bonding Toughened Glass Panel, HDMI Interface High Resolution | Multi-Point Touch | Full Color
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
10.4" |
1600×720 |
HDMI |
QLED |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Touch Panel Tech |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB
Type-C |
Toughened Glass |
Optical Bonding |
OSD Menu |
Brightness Controll |
Brightness |
Audio Output 1 |
Audio Output 2 |
 |
 |
 |
 |
 |
Brightness / Contrast |
Support DCC/CI |
600 cd/m² |
3.5 mm Jack |
4 PIN Header |
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
█ Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With PC
for reference only, the above controller boards or hosts are NOT included
█ Display
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
QLED Quantum Dot Technology
Wider Color Gamut Color Gamut Of This QLED Display Is Up To: SRGB 94%, NTSC 94%
More Pure Chroma
Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid
Longer Lifetime
Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Supports DDC/CI Brightness Adjustment
█ Interface Introduction

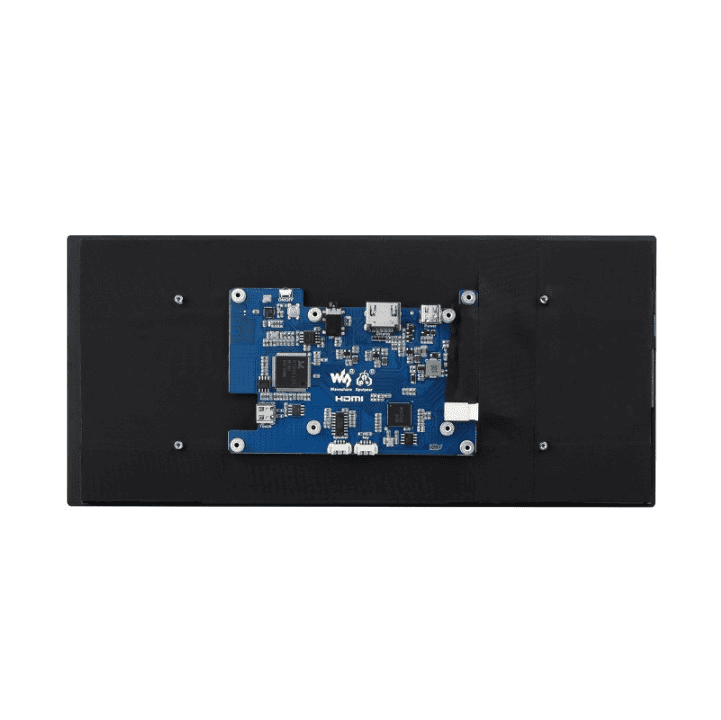

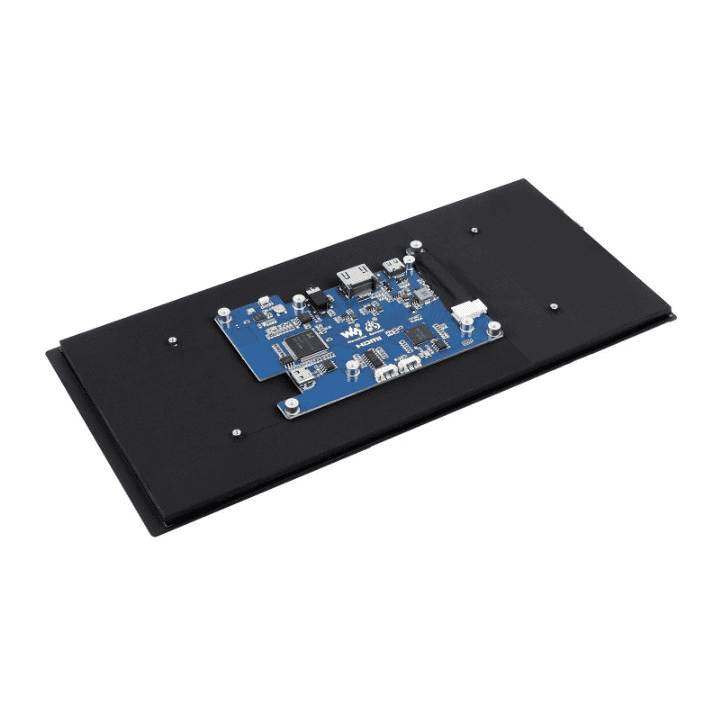

█ Product Show
█ Dimensions
-
█ Package Content
- 10.4HP-CAPQLED ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- Button board ×1
- Button board cable ×1
- USB to Type-C adapter (B) ×1
- USB to Type-C adapter (C) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screws pack ×1
- 5V 3A Type C Power supply ×1
Weight: 0.769 kg
