SKU: 20135
Part Name: 10.1HP-CAPQLED
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/10.1HP-CAPQLED 10.1" QLED Quantum Dot Display

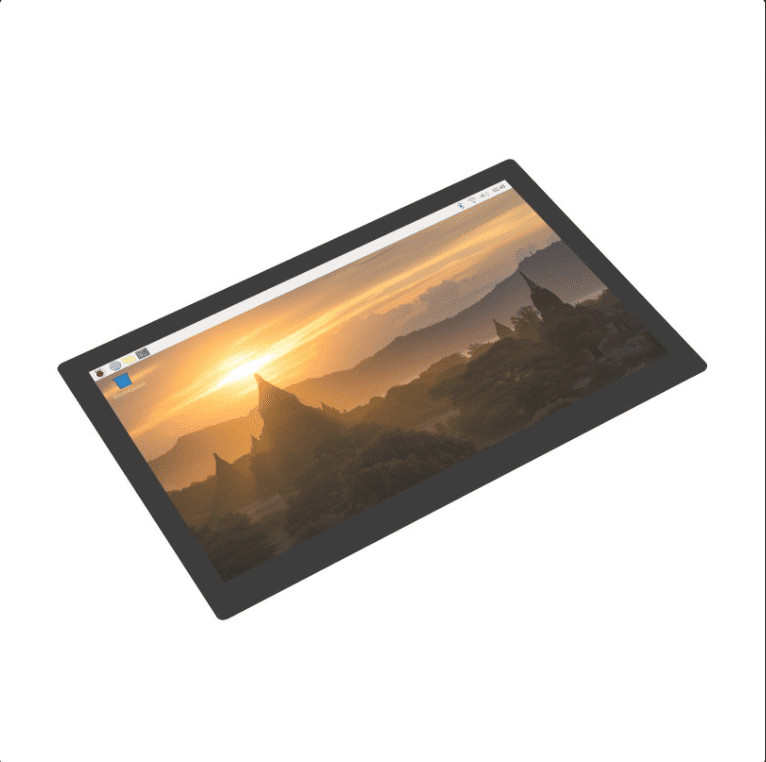

10.1 inch QLED Quantum Dot Display, Capacitive Touch, 1280×720, G+G Toughened Glass Panel, Various Devices & Systems Support
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
10.1" |
1280×720 |
HDMI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Backlight |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB
|
G+G Toughened Glass |
QLED Quantum Dot |
OSD Menu |
Gaming |
Brightness |
Audio Output 1 |
Audio Output 2 |
 |
 |
 |
 |
 |
Brightness / Contrast |
Xbox360, PS4, Switch |
500 cd/m² |
3.5 mm Jack |
4 PIN Header |
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 10-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free
Game Console
█ Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
█ Display
QLED Panel
QLED Quantum Dot Technology
Wider Color Gamut Color Gamut Of This QLED Display Is Up To: NTSC 96%, SRGB 100%
More Pure Chroma
Chroma Of QLED Increases 58.3%, Makes The Color More Pure, More Vivid
Longer Lifetime
Due To Its Inorganic Characteristic, The Color Life Of QLED Could Be Up To 60000 Hours Without Color Degradation

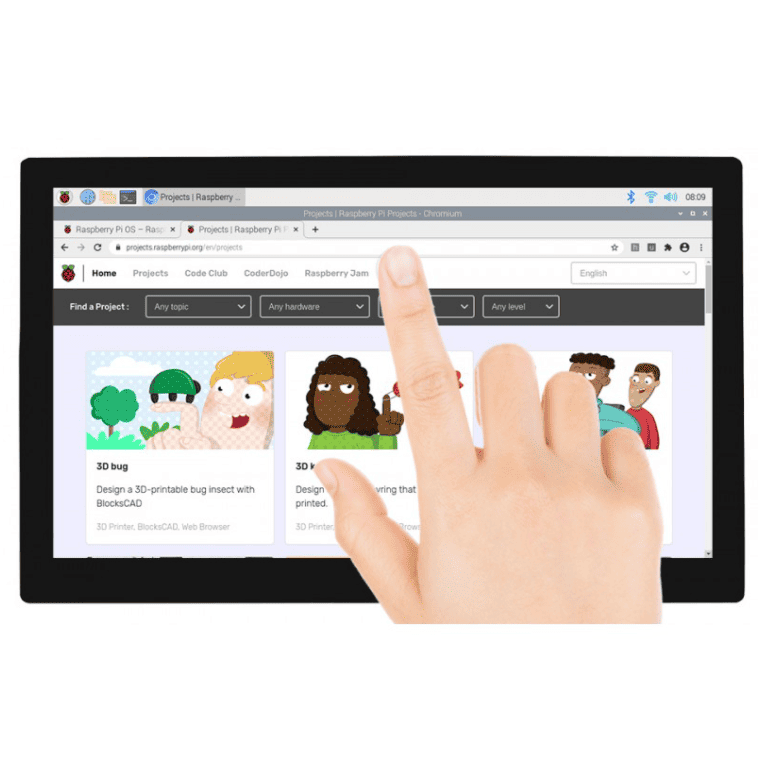

Touch Control
1) up to 10-points touch, depending on the operating system.
2) up to 6H hardness G-G toughened glass panel.
Enjoy Gaming
* audio output via earphone/speaker port.
█ Appearance & Dimensions (mm)
-
█ Package Content
-
- 10.1HP-CAPQLED x1
- 5V 3A power adapter x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB-A to Micro-B cable x1
- Triangular stand x1
- Button board cable x1
- Button board x1
Weight: 0.667 kg
