SKU: 23450

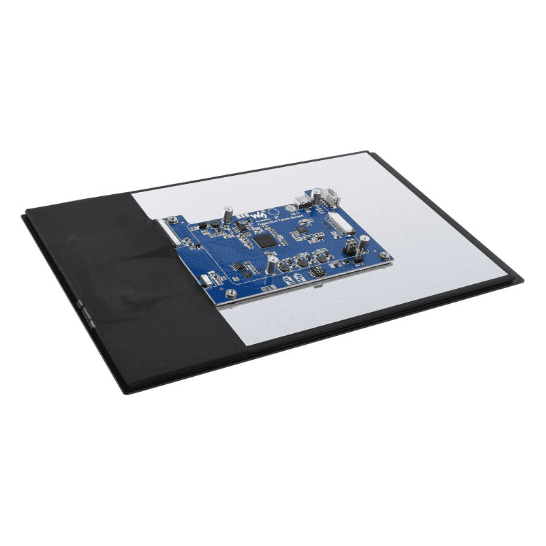

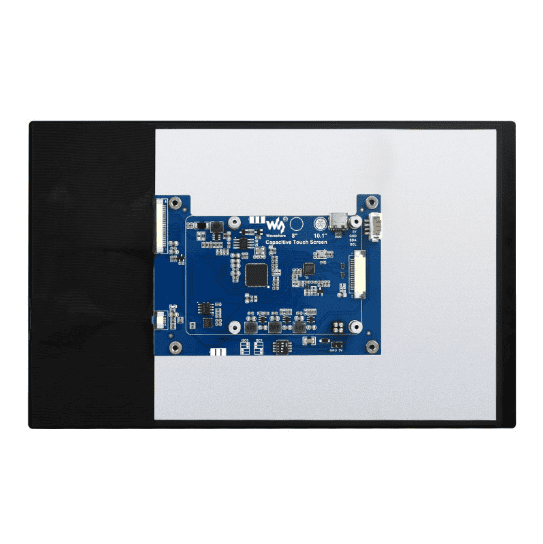

Part Name: 10.1inch DSI LCD (C)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/10.1inch_DSI_LCD_(C) 10.1" DSI LCD (C)
10.1inch Capacitive Touch Display For Raspberry Pi, 1280×800, IPS, DSI Interface
HD Resolution | Multi-Point Touch | Full Color
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
10.1" |
1280×800 |
DSI |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Touch Panel Tech |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
I2C |
Toughened Glass |
Optical Bonding |
█ Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-points touch, driver required
Supports Pi 5/4B/3B+/3A+, CM3/3+/4*
* CM3/3+/4 requires extra adapter board
█ Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
for reference only, Raspberry Pi 4B and 3B+ are NOT included.
█ Display

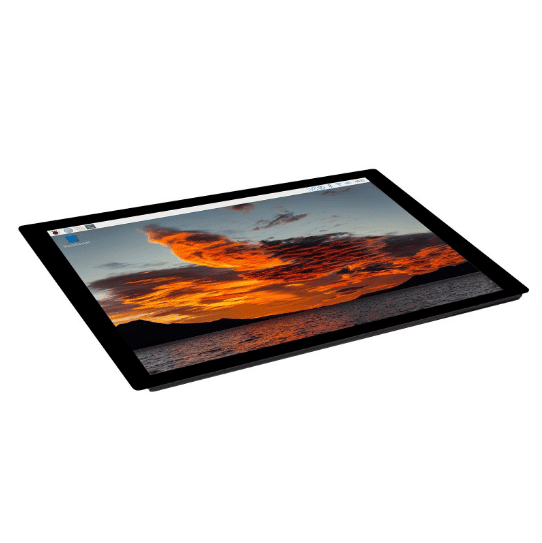

IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Adjustable Brightness Via Software
Design Features
Product Show
█ Dimensions
█ Package Content
Weight: 0.536 kg
- 10.1inch DSI LCD (C) x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
- DSI-Cable-12cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- PH2.0 4PIN cable 200mm x1
- Screws pack x1
