SKU: 23739
Part Name: 10.1DP-CAPLCD
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/10.1DP-CAPLCD zvučnici za ovaj displej 10.1″ Capacitive Touch Display
10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface High Resolution | Multi-Point Touch | Full Color
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
10.1" |
1280×800 |
HDMI |
IPS |
178° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Touch Panel Tech |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB
Type-C |
Toughened Glass |
Optical Bonding |
OSD Menu |
Audio Output 1 |
Audio Output 2 |
|
|
 |
 |
 |
|
|
Brightness / Contrast |
3.5 mm Jack |
4 PIN Header |
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspberry Pi OS, 10-point touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver freeSupports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
█ Connection Examples
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero 2W
* additional mini HMDI adapter and USB cable are requied
Working With Jetson Nano
Working With Mini PC
for reference only, the above controller boards or host are not included.
█ Display

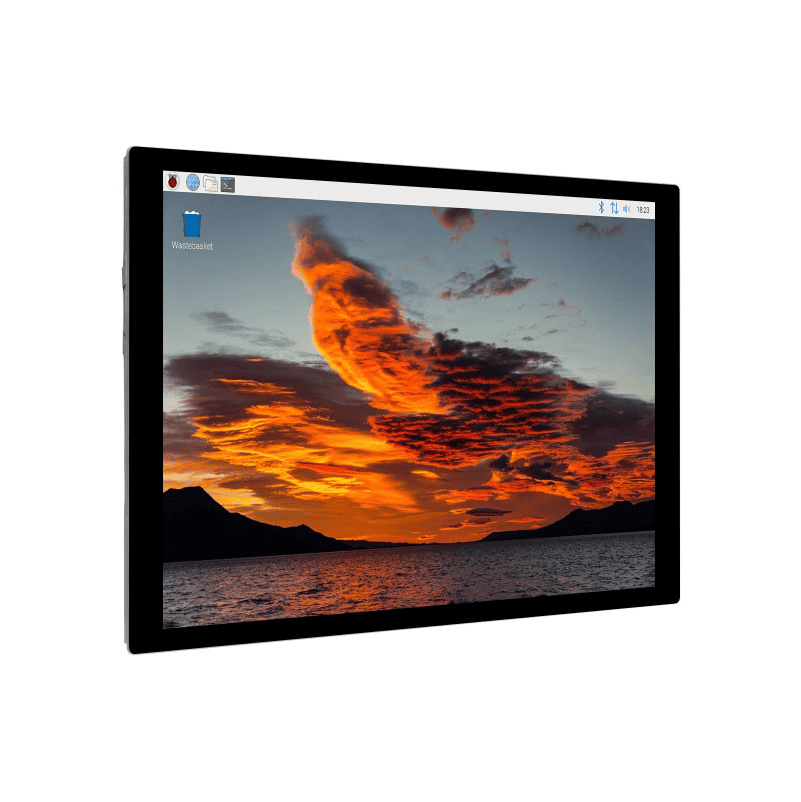

IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Adjustable Brightness Via Software
█ Interface Introduction

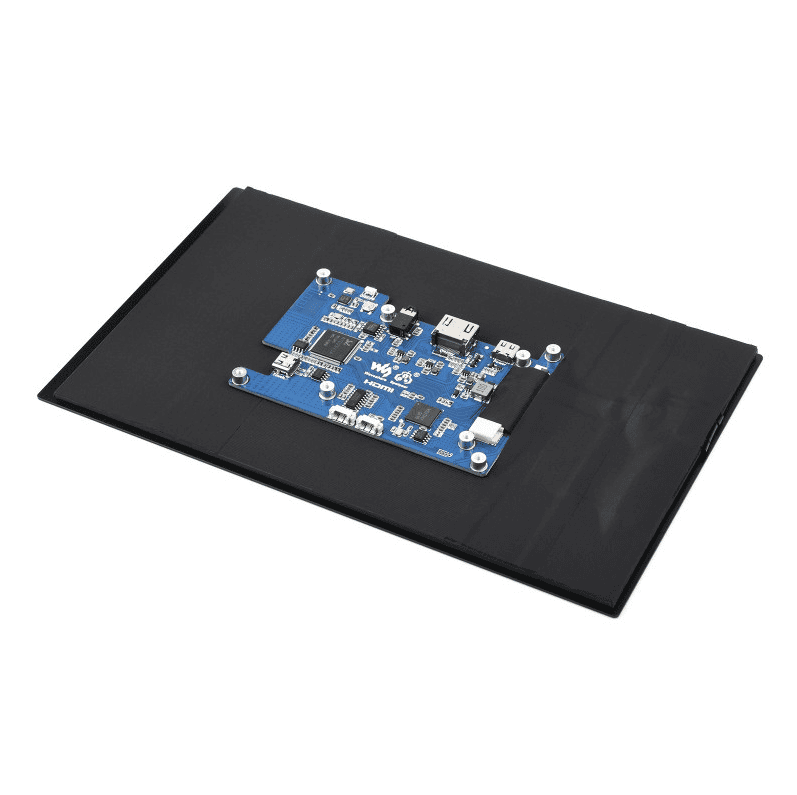

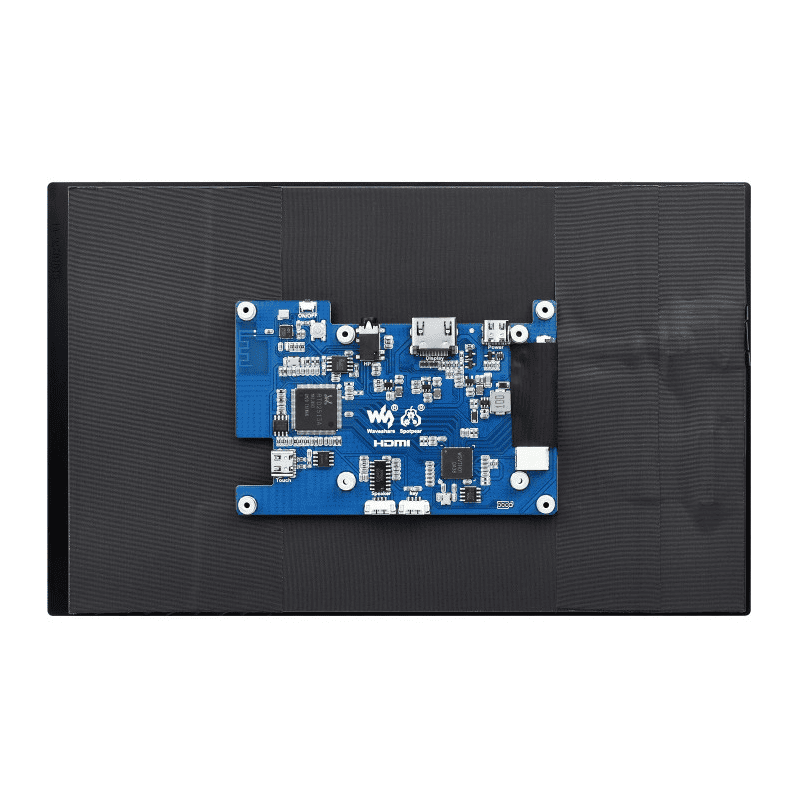

█ Product Show
█ Dimensions (mm)
-
█ Package Content
- 10.1DP-CAPLCD ×1
- HDMI flat cable ~1m ×1
- USB-A to USB-C cable ~1m ×1
- Button board ×1
- Button board cable ×1
- USB to Type-C adapter (B) ×1
- USB to Type-C adapter (C) ×1
- HDMI to Micro HDMI adapter ×1
- HDMI adapter ×1
- Screwspack ×1
Weight: 0.538 kg
