SKU: 18096
Part Name: 10.1inch HDMI LCD (E)
Brand: Waveshare
Korisne informacije: http://www.waveshare.com/wiki/10.1inch_HDMI_LCD_(E) 10.1" HDMI Touch Display
10.1inch Capacitive Touch Screen LCD (E), 1024×600, HDMI, IPS, 10-Points Touch, Fully Laminated Screen, Supports Raspberry Pi, Jetson Nano and PC
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
10.1" |
1024×600 |
HDMI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Touch Panel Tech |
 |
 |
 |
 |
 |
Capacitive |
10-Points |
USB |
Toughened Glass |
Fully Laminated |
OSD Menu |
Audio Output 1 |
Audio Output 2 |
Gaming |
|
 |
 |
 |
 |
|
Brightness / Contrast |
3.5 mm Jack |
4 PIN Header |
Xbox360, PS4, Switch |
|
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 10-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
Jetson Nano
- Supports Ubuntu, single point touch, driver free
PC
- Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free
Game Console
█ Connection Examples
Working with Raspberry Pi 4
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero W

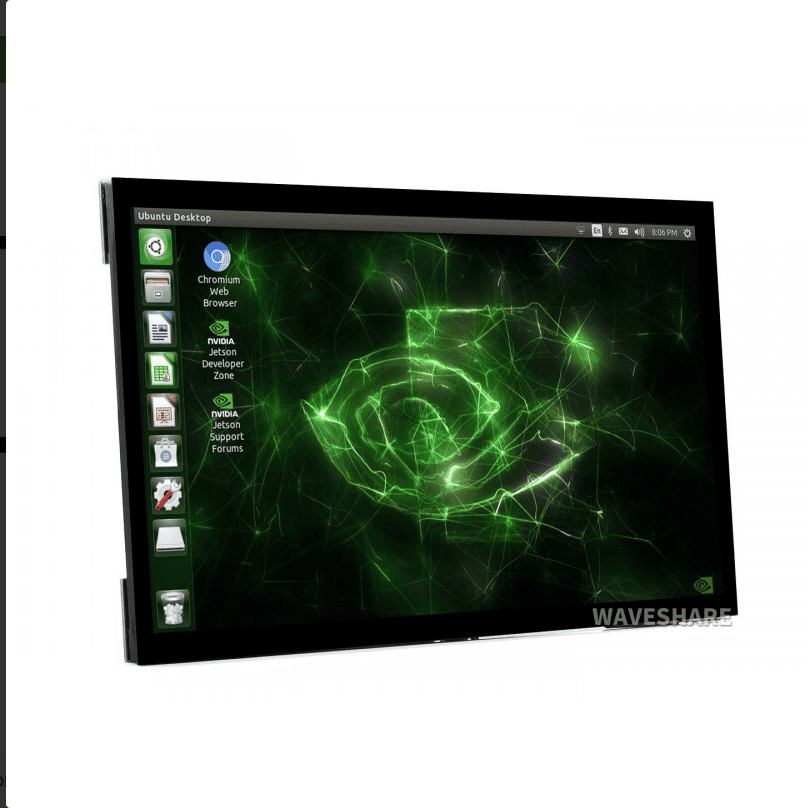

Working with AI Computer Jetson Nano
Working with mini PC
█ Display
IPS Panel

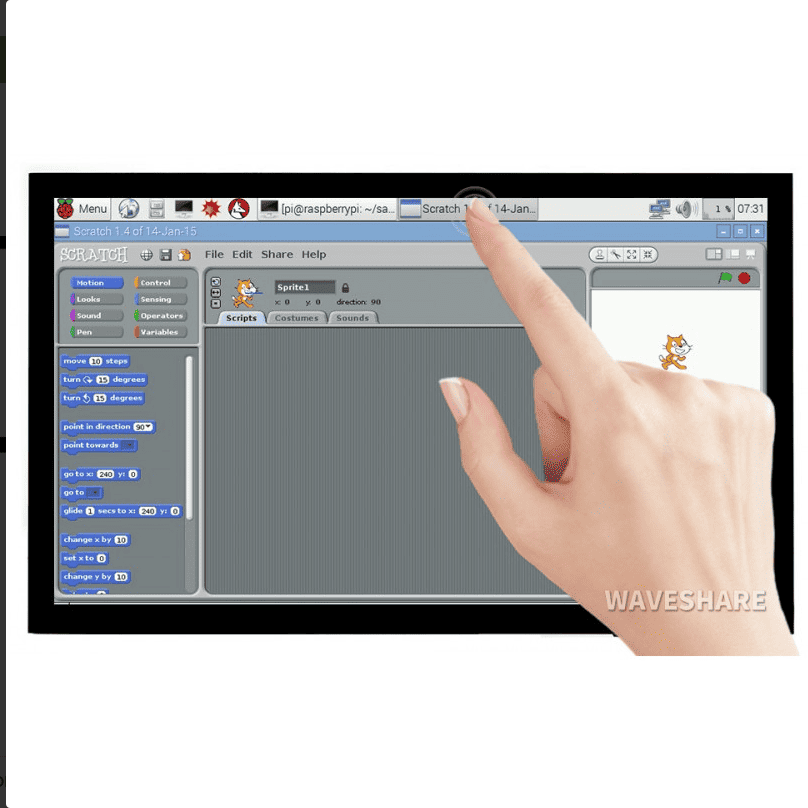

Touch Control
1) up to 10-points touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.
3) fully laminated screen, better display experience, dust-proof.
Enjoy Gaming
* audio output from earphone jack and speaker header.
█ Appearance & Dimensions (mm)
█ Package Content
- 10.1inch HDMI LCD (E) x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB-A to Micro-B cable x1
Weight: 0.598 kg
