SKU: 11769

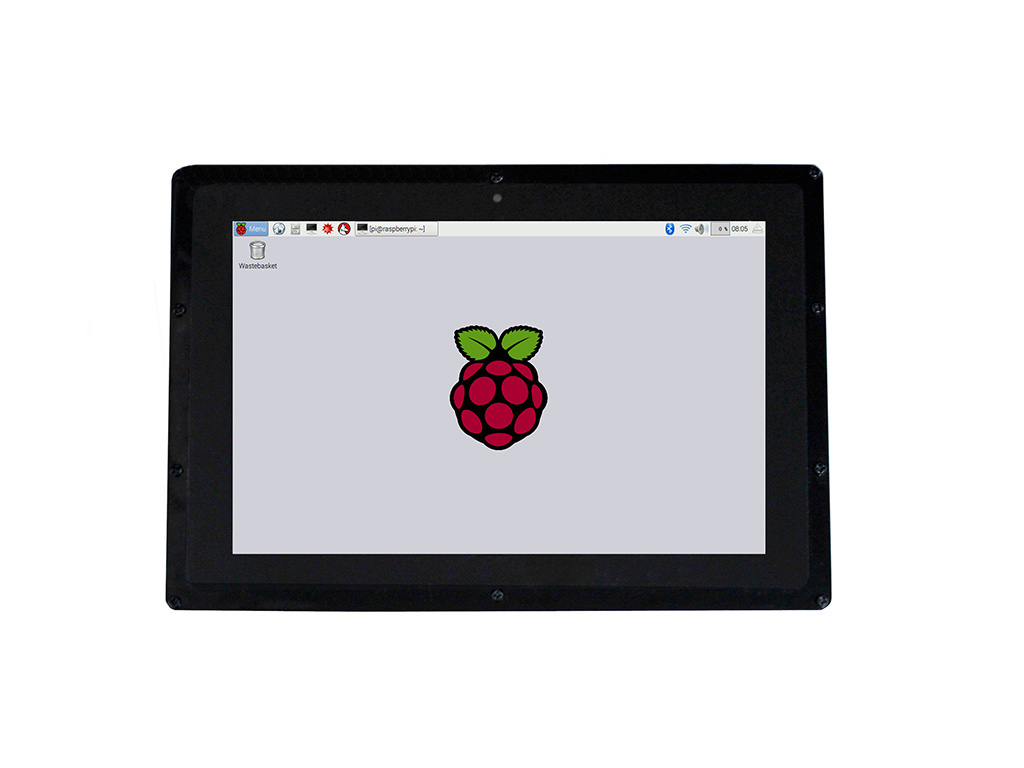

Part Name: 10.1inch HDMI LCD (B) (with case) (for Europe)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/10.1inch_HDMI_LCD_(B)_(with_case) 10.1" HDMI Touch Display
IPS, 1280x800, 10.1 inch Capacitive Touch Screen LCD, Supports Multi mini-PCs, Multi Systems, Comes with EU plug power adapter
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
10.1" |
1280×800 |
HDMI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
|
 |
 |
 |
 |
|
Capacitive |
10-Points |
USB |
Toughened Glass |
|
Consumption |
Enclosure |
|
|
|
 |
 |
|
|
|
Low Power |
Acrylic |
|
|
|
█ Device & System Support
Raspberry Pi
- Supports Raspbian, 10-points touch, driver free
- Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
- Supports Retropie, driver free
- Supports all versions of Raspberry Pi
PC
- Supports Windows 10 / 8.1 / 8 / 7, 10-points touch, driver free
█ Connection Examples

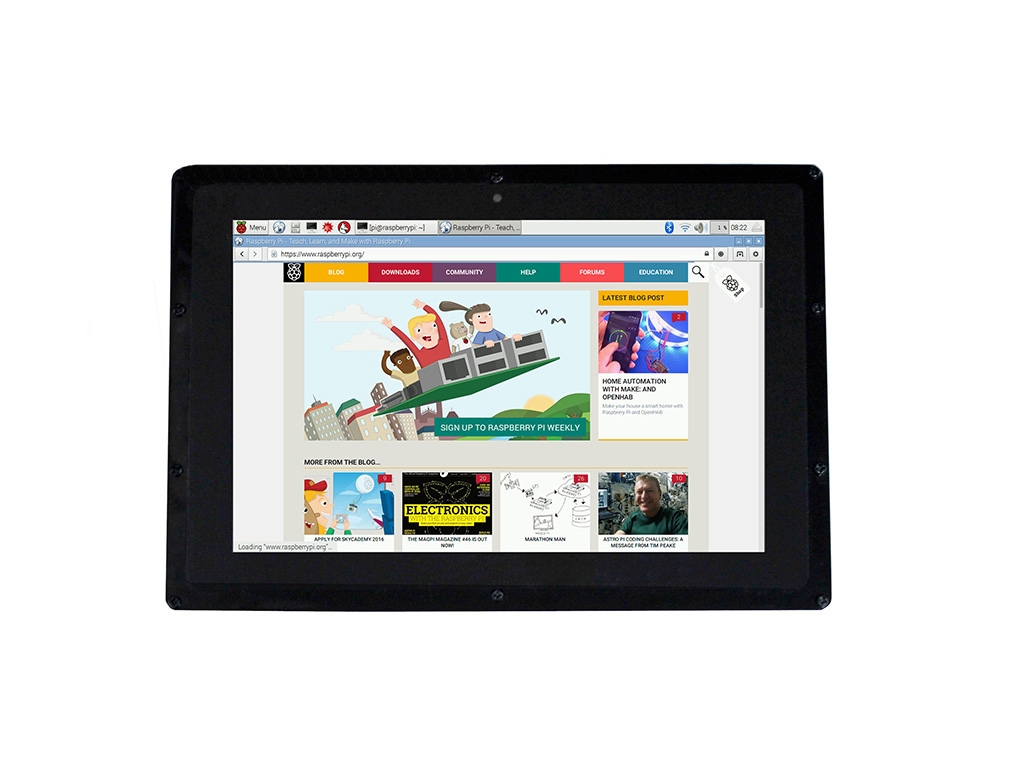

Working with Raspberry Pi 4
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero W

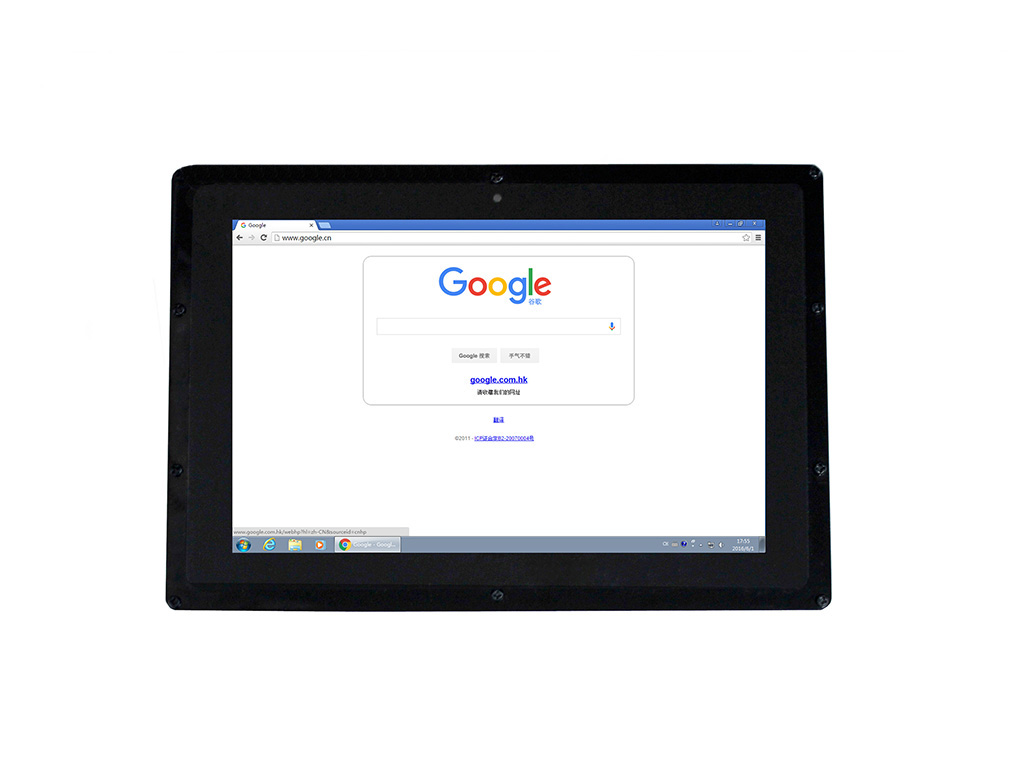

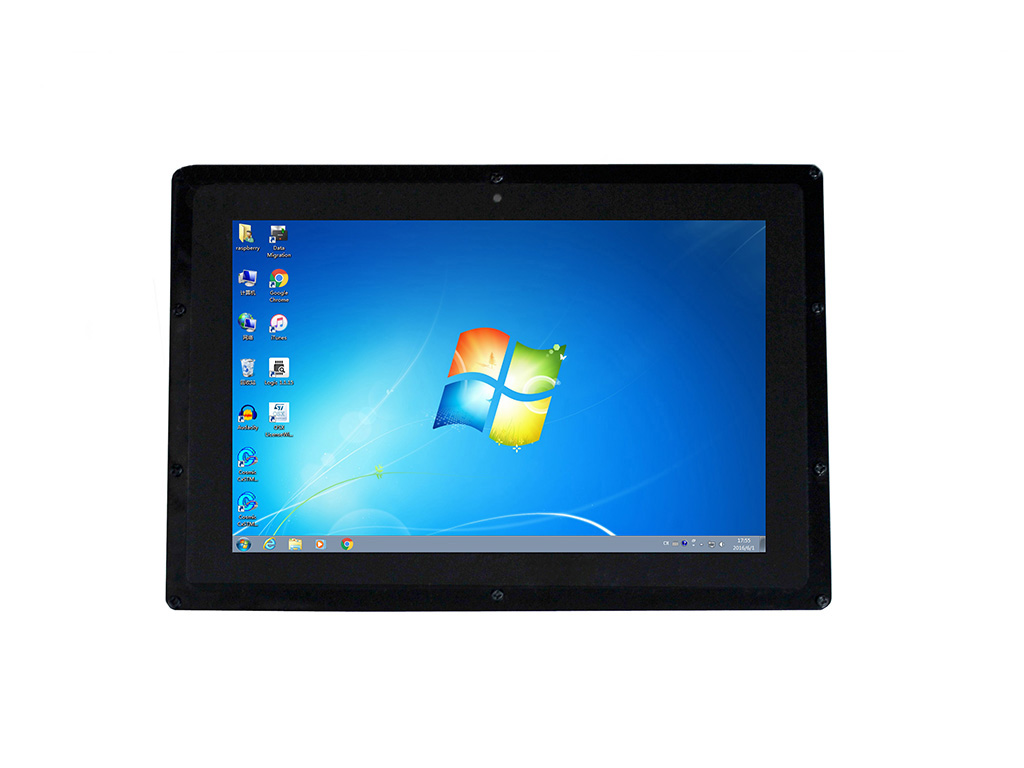

Working with mini PC

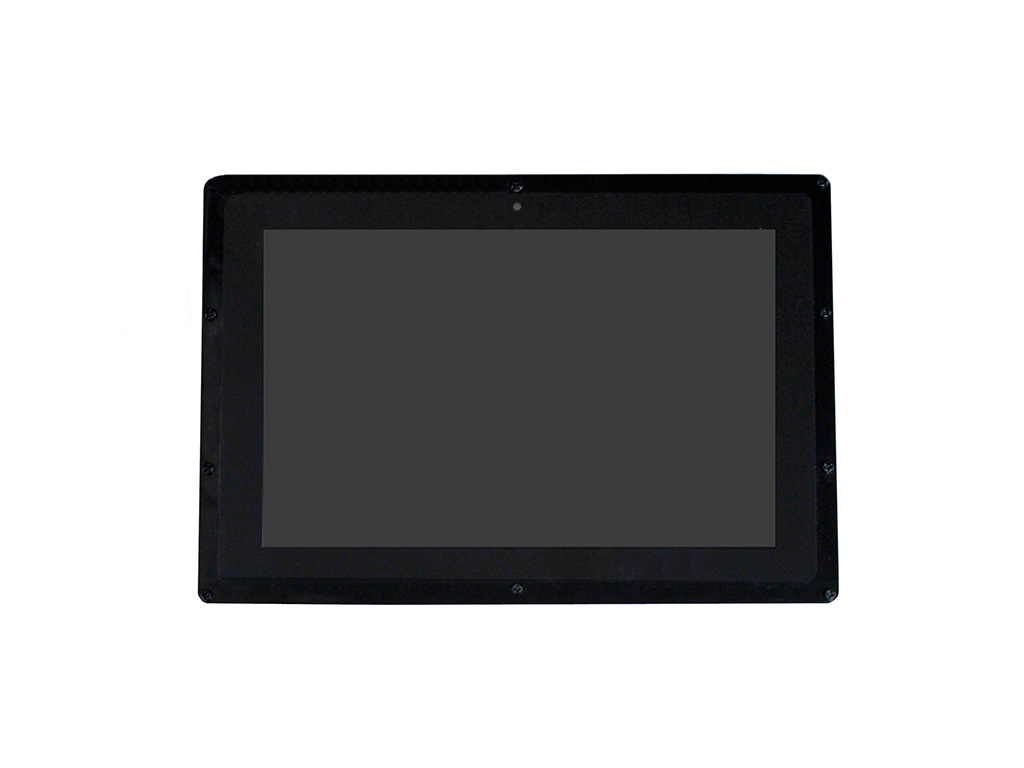

█ Display
IPS Panel
Touch Control
1) up to 10-points touch, depending on the operating system.
2) up to 6H hardness toughened glass panel.

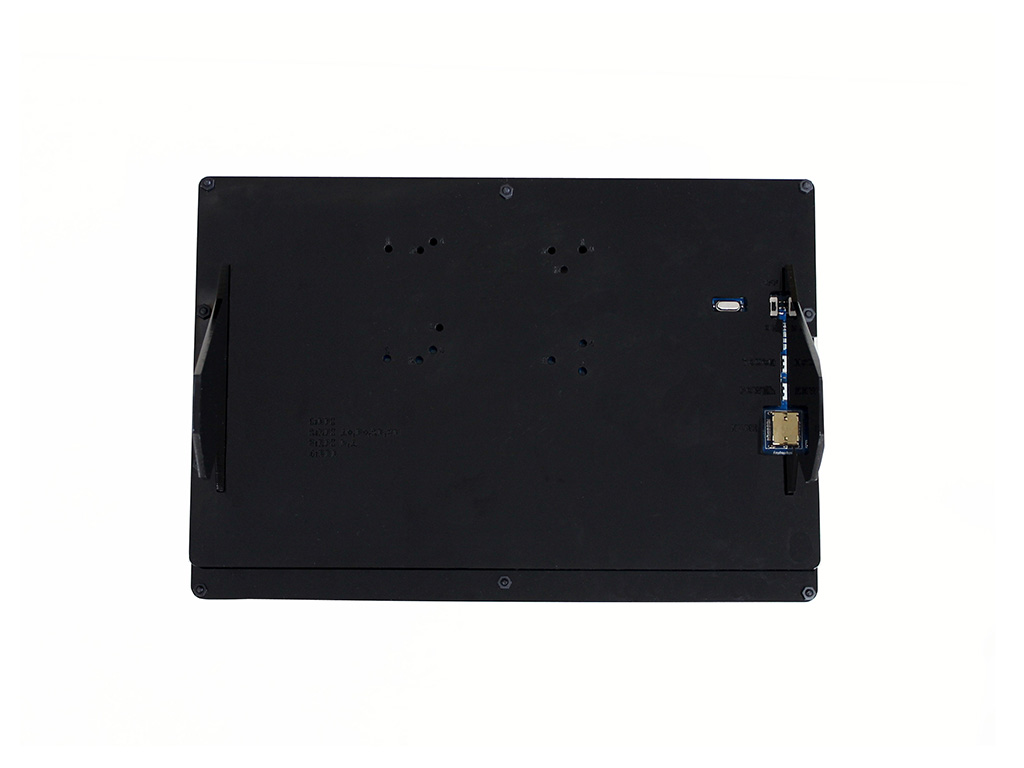

█ Appearance and Dimensions

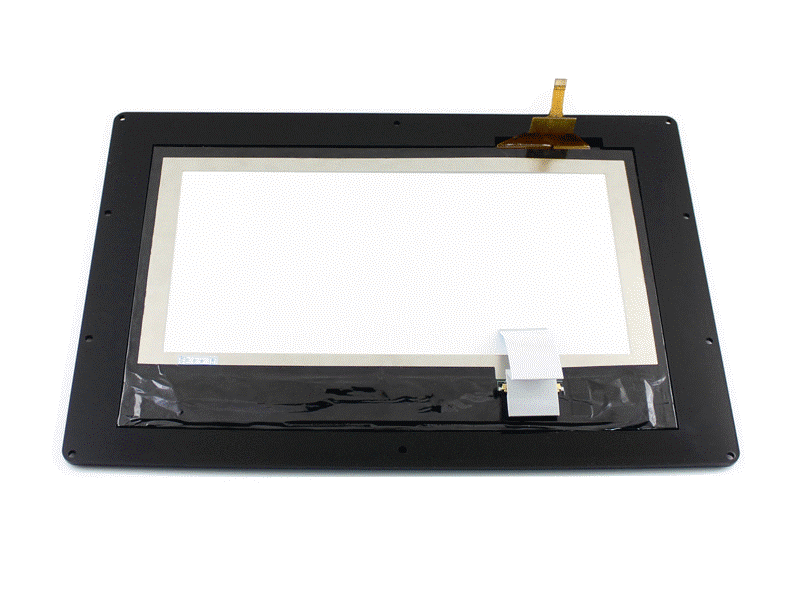

█ The LCD and Control Board
- IPS screen,1280x800 hardware resolution
- Toughened glass capacitive touch panel, 6H hardness
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, ten-points touch, and driver free
- HDMI interface for displaying, USB interface for touch control
- Supports 5-level backlight adjustment
Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
- Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
- BB Black: HDMI cable

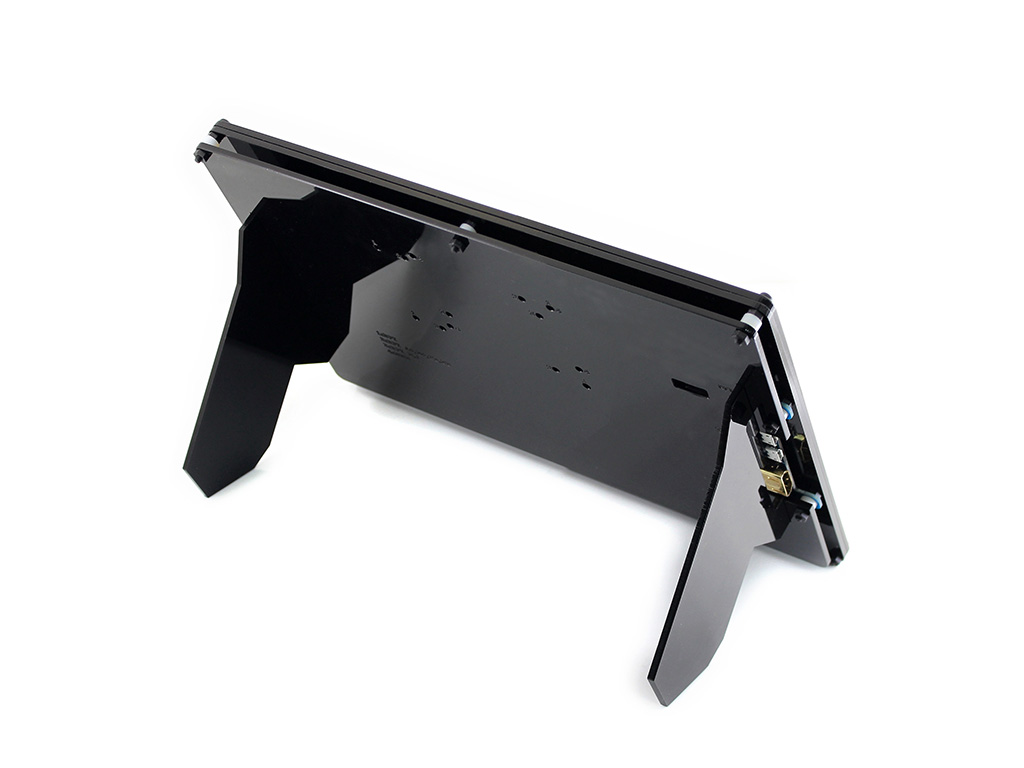

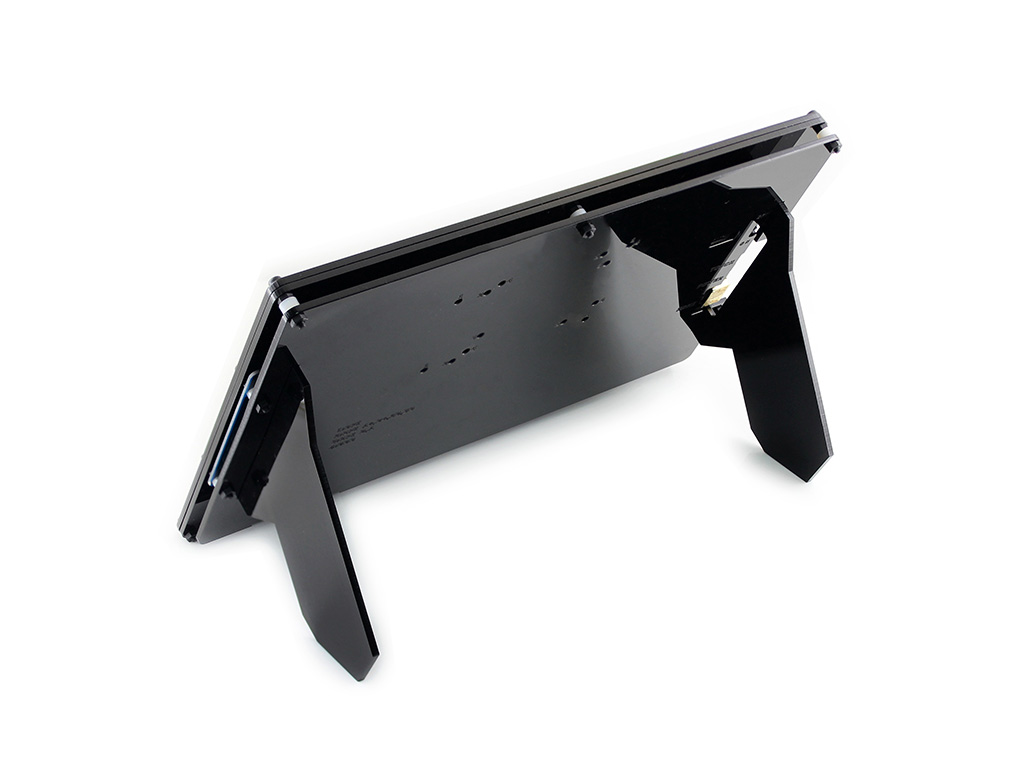

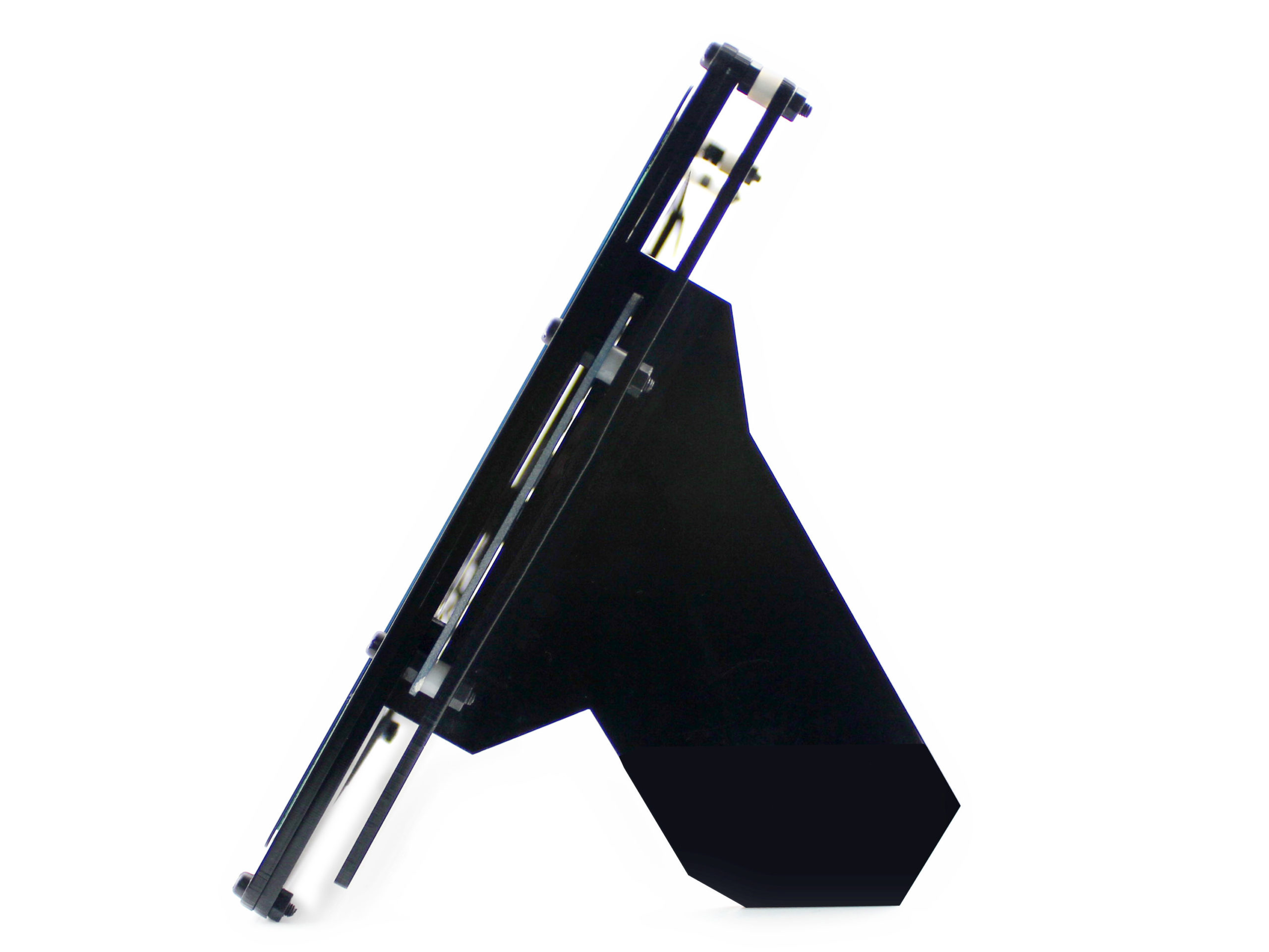

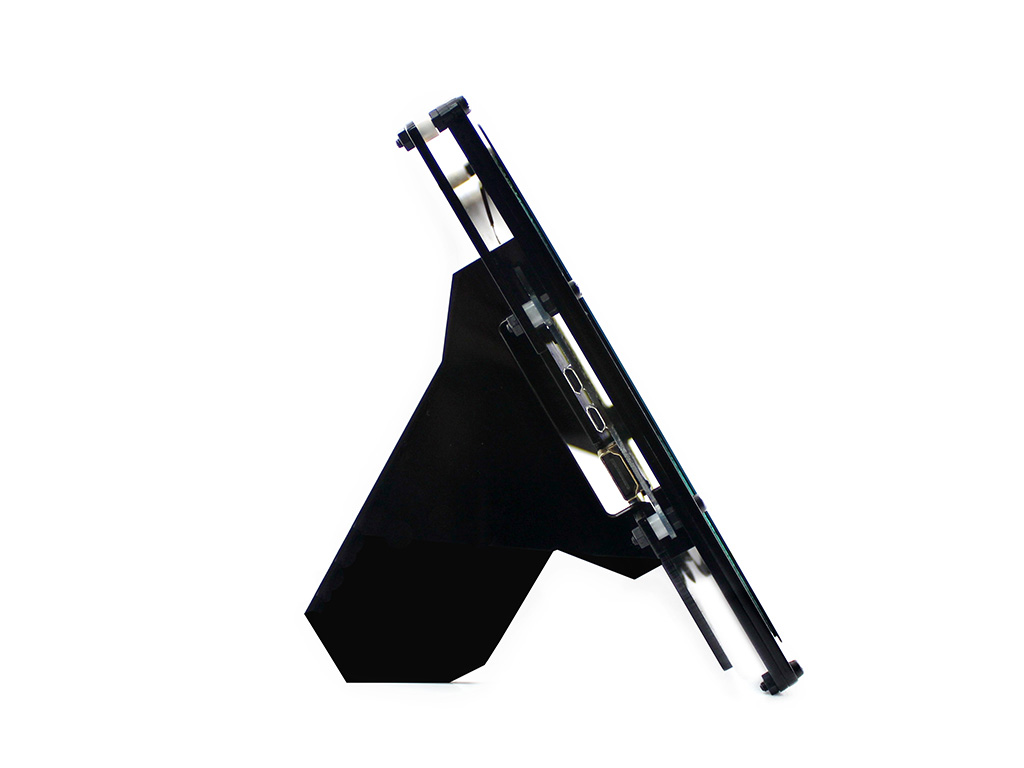

█ The Case
- Material : high quality black Acrylic
- Comes with back holder, 45° tilt angle
- Features mounting holes for Raspberry Pi 4B/3B+/3B/2B/B+/A+/B, BB Black, Banana Pi
█ Package Content
- 10.1inch HDMI LCD (B) (with case) x1
- Back stand x1
- EU Power adapter x1
- HDMI cable x1
- HDMI to Micro HDMI Adapter x1
- USB-A to Micro-B cable x1
- Screws pack x1
- Quick start sheet x1
Weight: 0.851 kg
