SKU: 14718
Part Number: 1.8inch LCD for micro:bit
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/1.8inch_LCD_for_micro:bit 1.8inch Colorful Display Module For Micro:bit, 160x128 Pixels, 65K Colors
Overview

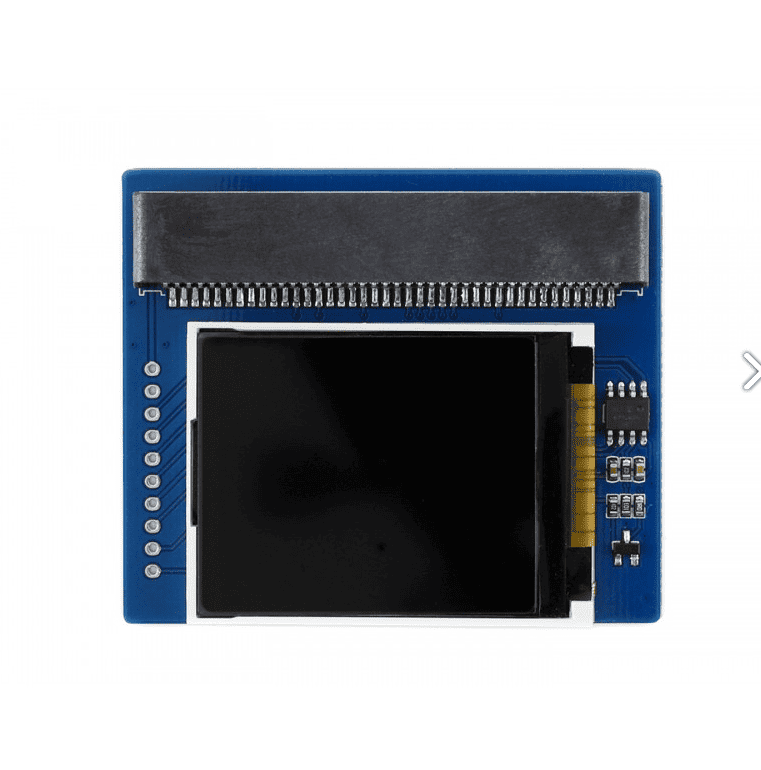

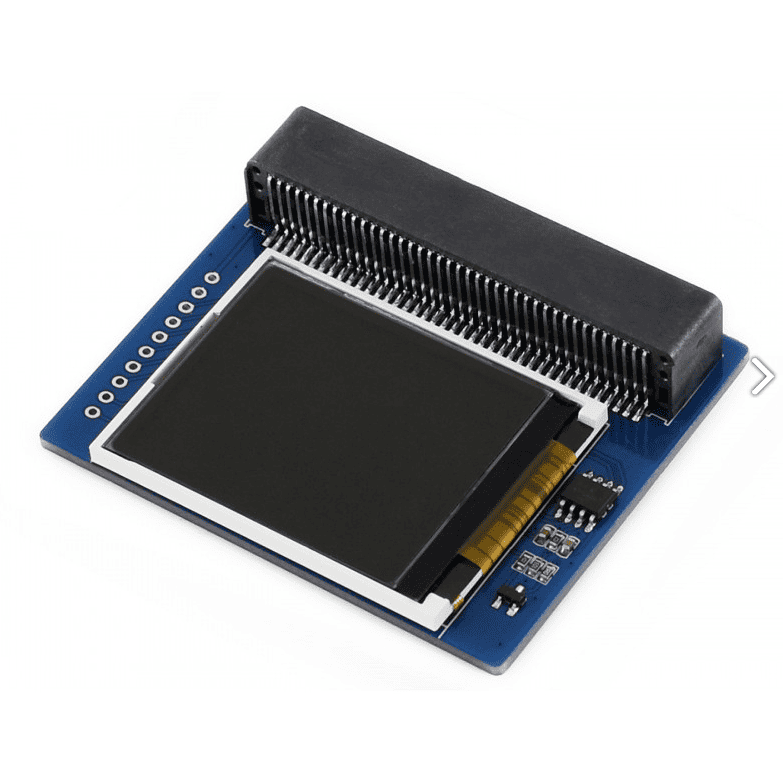

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors.
Tired of the 5x5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.
Features
- micro:bit edge connector, directly pluggable
- Embedded driver ST7735S, supports 65K colors
- Onboard SRAM 23LC1024, used as display cache, no more out of memory
- SPI interface, takes up only a few IO pins
- Backlight adjustment via PWM
- Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
- Comes with development resources (micro:bit graphical demo/user manual, etc.)
Specifications
- Driver: ST7735S
- Resolution: 160x128
- Display color: RGB, 65K colors
- Operating voltage: 3.3V
- Dimension: 61mm x 51.5mm

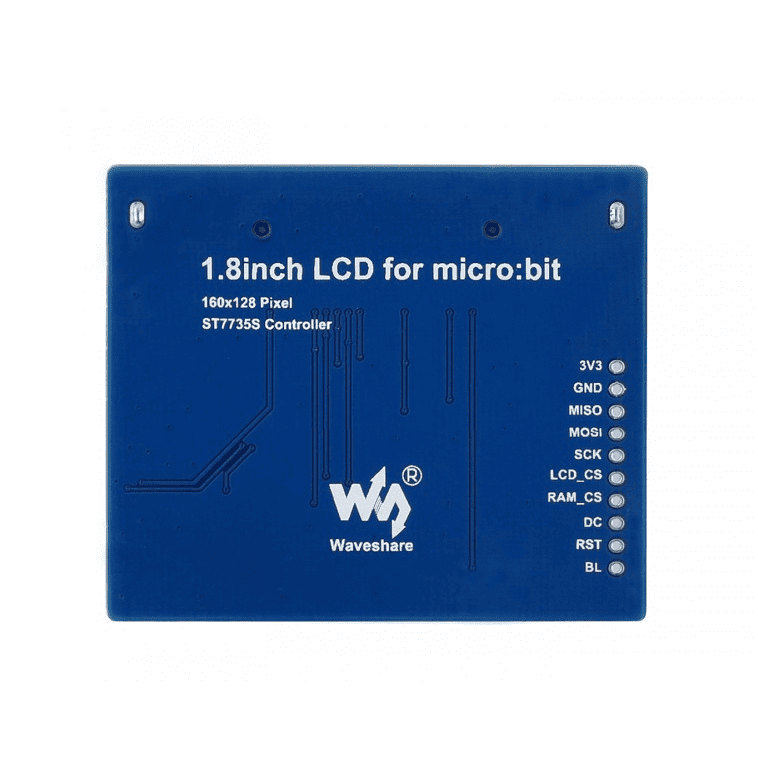

Pinouts
PIN |
MICRO:BIT PIN |
DESCRIPTION |
3V3 |
3V3 |
Power |
GND |
GND |
Ground |
MISO |
P14 |
SPI data master input/slave output |
MOSI |
P15 |
SPI data master output/slave input |
SCK |
P13 |
SPI clock input |
LCD_CS |
P16 |
LCD chip selection |
RAM_CS |
P2 |
SRAM chip selection |
DC |
P12 |
LCD data/command |
RST |
P8 |
LCD reset |
BL |
P1 |
LCD backlight |
Dimensions
- PACKAGE CONTENT
Weight: 0.025 kg
- 1.8inch LCD for micro:bit x1
