1.54inch LCD Module

Šifra: w18079

1.290,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: ekran, displej
Težina po komadu: 0.025 Kg

SKU: 18079
Part Number: 1.54inch LCD Module
Brand: Waveshare

Korisne informacije http://www.waveshare.com/wiki/1.54inch_LCD_Module

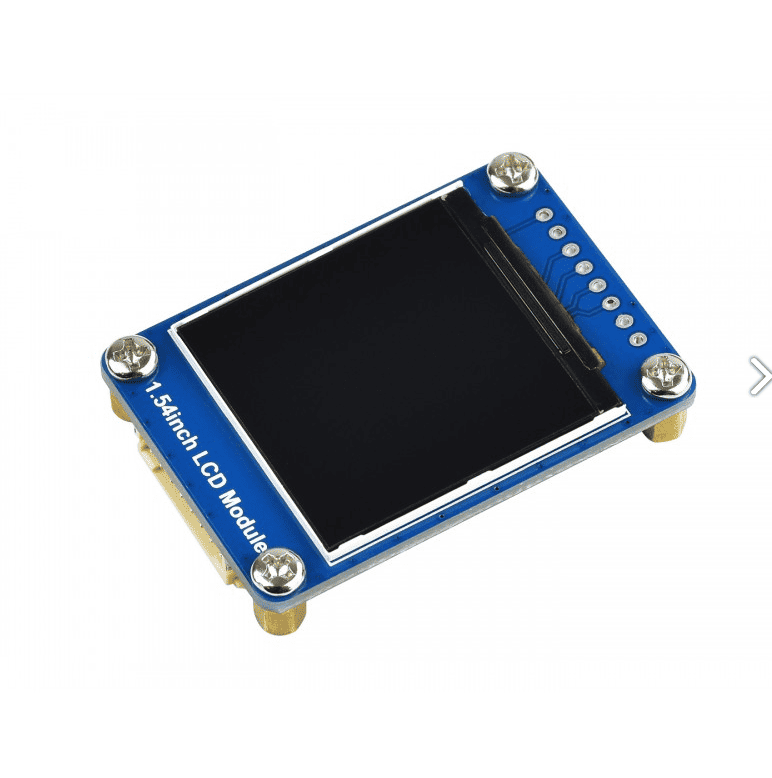

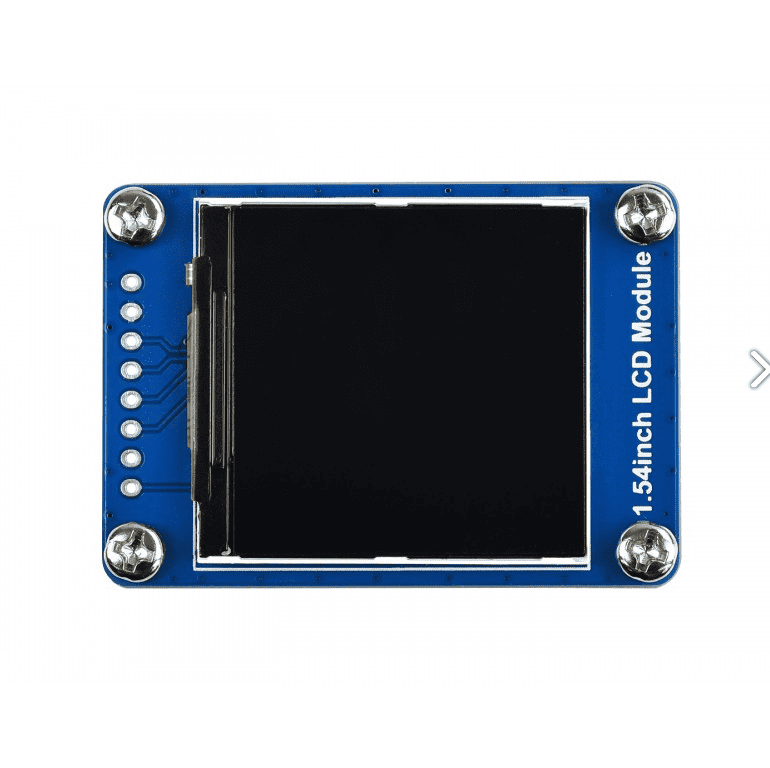

1.54inch LCD Display Module

1.54inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×240 Resolution, SPI Interface

Posetite Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email office@malina314.com

Size	Resolution	Display Interface	Display Colour	Driver

1.54″	240×240	SPI	65K RGB	ST7789
Display Panel

IPS

█ Overview

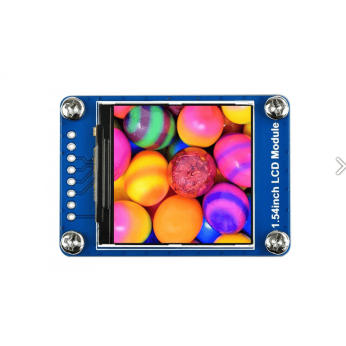

240×240 resolution, 65K RGB colors, clear and colorful displaying effect

SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32

Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Embedded ST7789 Driver, Using SPI Bus

█ Specifications

OPERATING VOLTAGE	3.3V/5V	RESOLUTION	240 × 240pixels
COMMUNICATION INTERFACE	4-wire SPI	DISPLAY SIZE	27.72 × 27.72mm
DISPLAY PANEL	IPS	PIXEL SIZE	0.1155 × 0.1155mm
DRIVER	ST7789	DIMENSIONS	50 × 35mm

Controlled Via SPI Bus

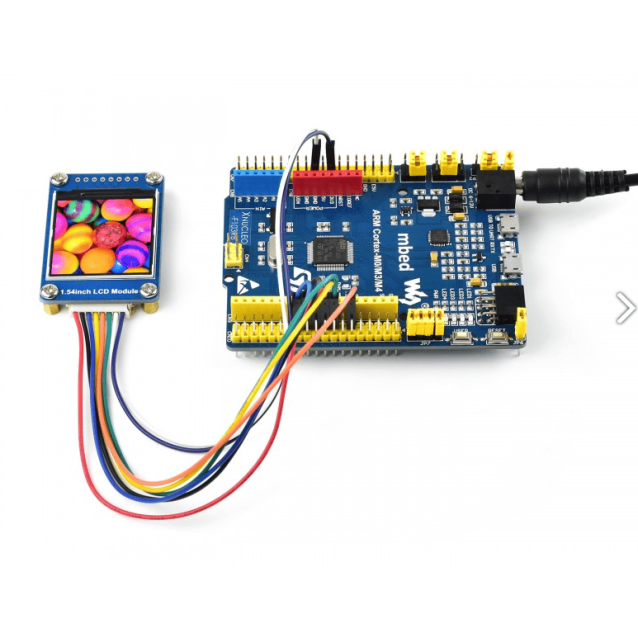

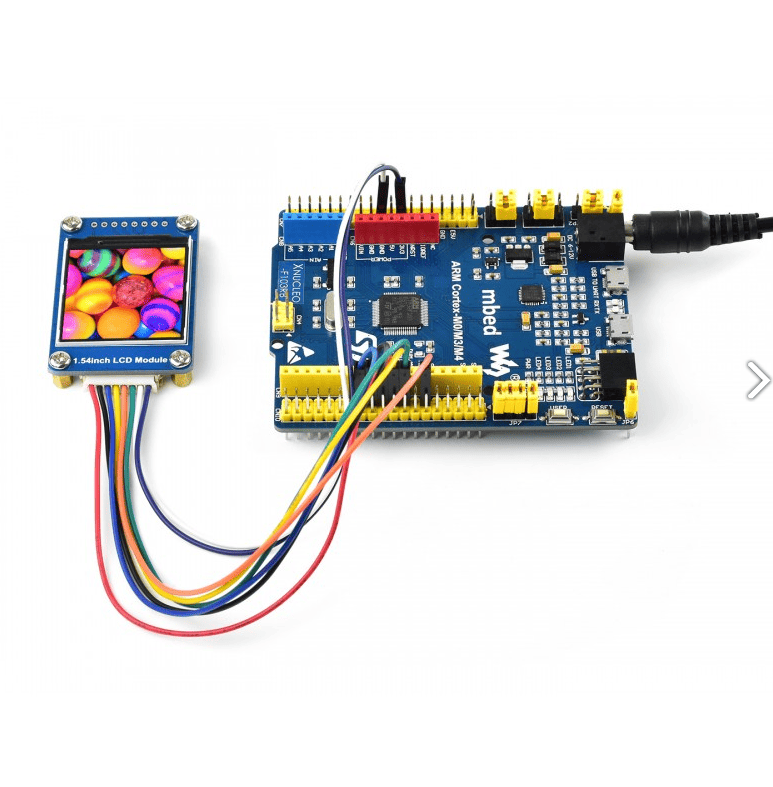

Supports Controller Boards Like Raspberry Pi/Arduino/STM32

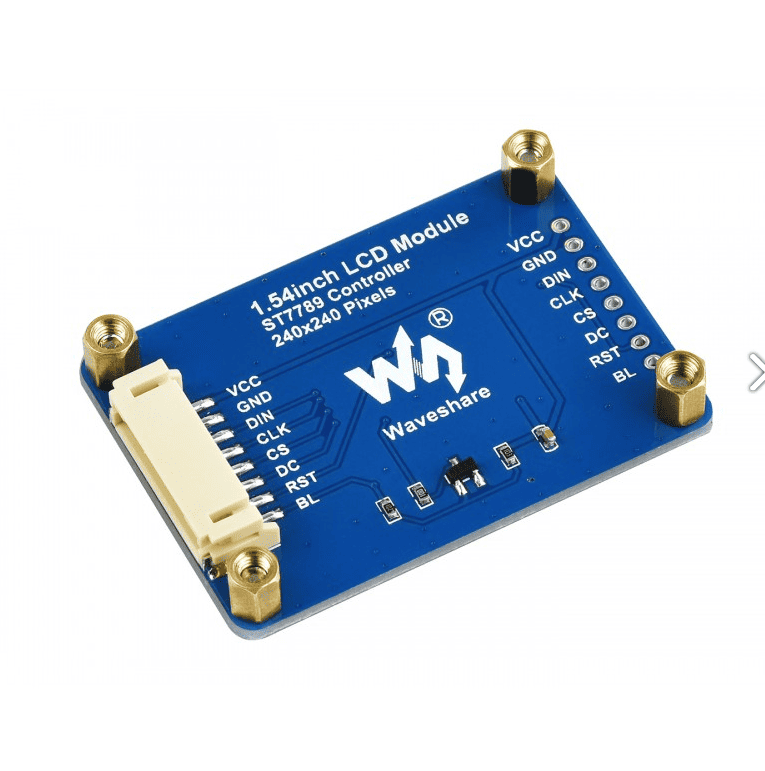

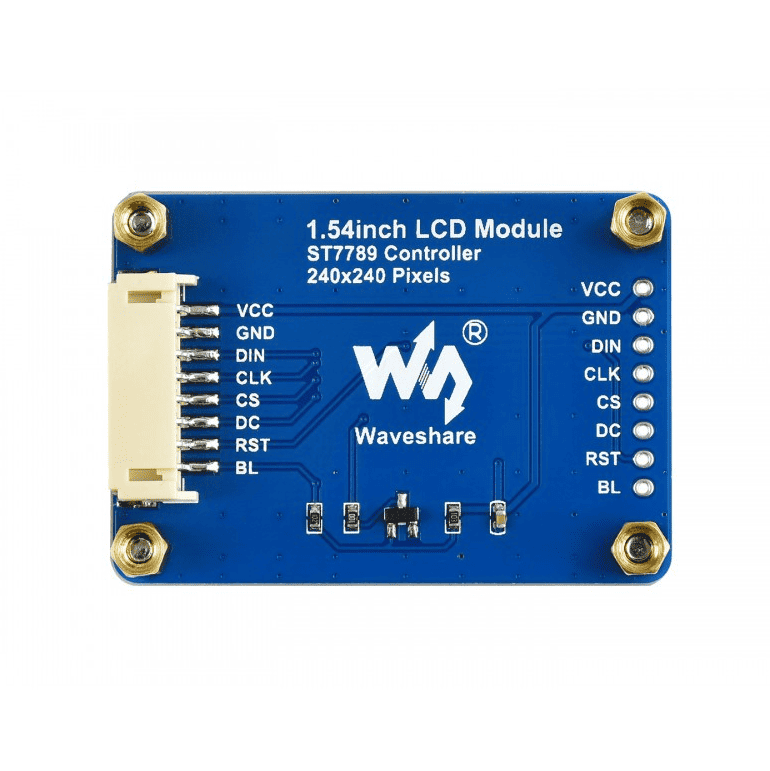

VCC	Power (3.3V/5V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight
