SKU: 22545
Part Number: 1.51inch Transparent OLED
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/1.51inch_Transparent_OLED 1.51inch Transparent OLED

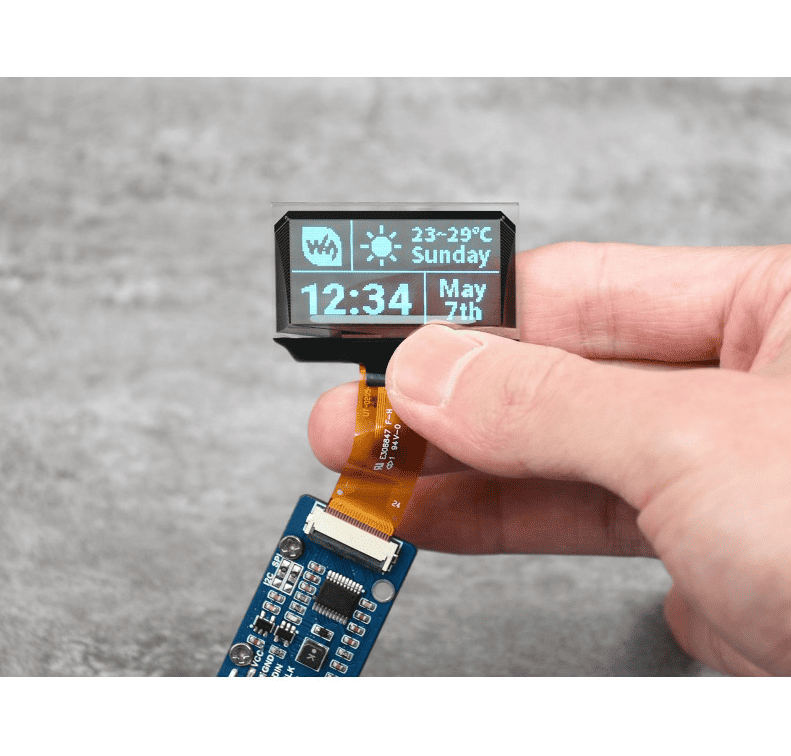

1.51 inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, Light Blue Color Display, Embedded Independent Driver Chip, Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
█ Overview
- OLED transparent module, full viewing angle
- Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
- Comes with development resources (examples for Raspberry Pi/Arduino/STM32)
█ Specifications
OPERATING VOLTAGE |
3.3V / 5V |
RESOLUTION |
128 × 64 pixels* |
PIXEL PITCH |
0.274 × 0.274mm |
MODULE SIZE |
42.04 × 27.22mm |
COMMUNICATION INTERFACE |
4-wire SPI/I2C |
DISPLAY SIZE |
35.05 × 15.32 mm |

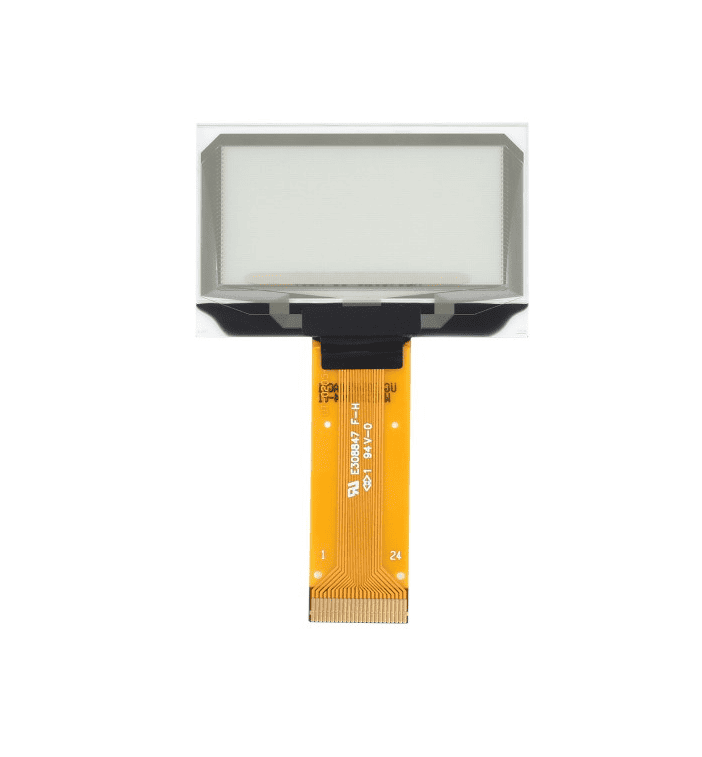

DISPLAY PANEL |
OLED |
PIXEL SIZE |
0.254 × 0.254 mm |

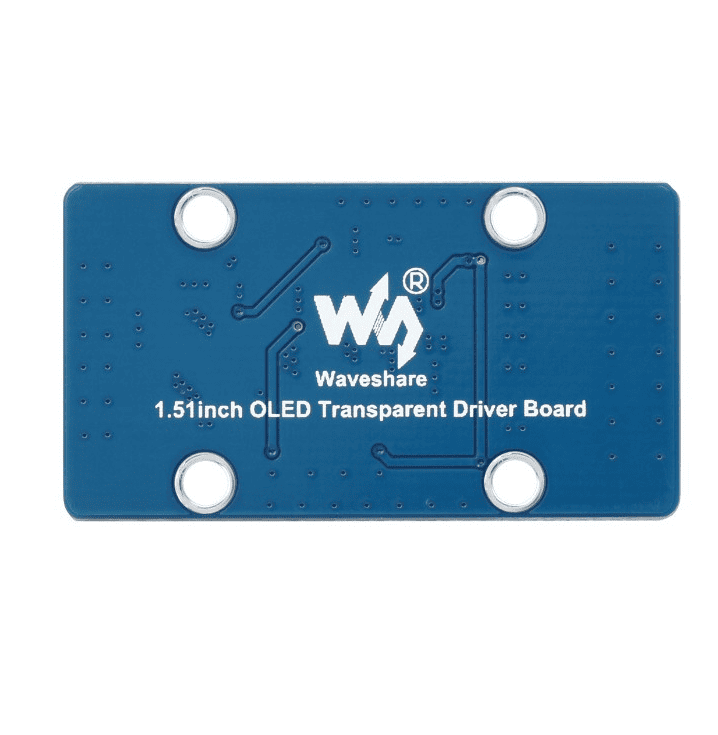

DRIVER |
Embedded driver |
DRIVER BOARD SIZE |
41 × 22.5 mm |
* there is a non-transparent white area on the side of the cable, but it can be displayed SPI And I2C Control Interface Switching
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

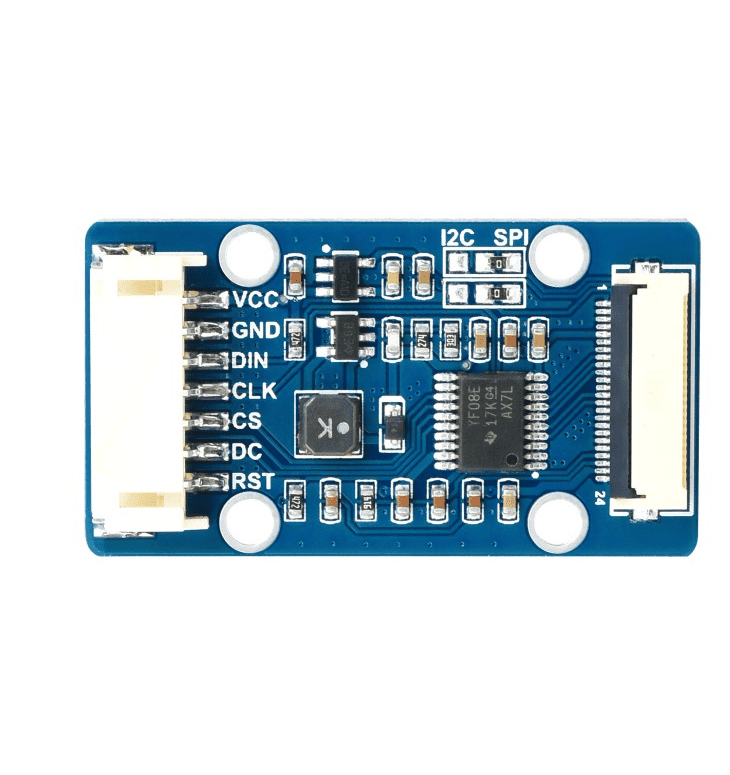

VCC |
Power (3.3V / 5V input) |
GND |
Ground |
DIN |
SPI / I2C data input |
CLK |
SPI / I2CI clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
█ Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino Board
█ Usage Example
FPC cable Connection
█ Dimensions (mm)
-
█ Package Content
-
- 1.51inch Transparent OLED x1
- PH2.0 7PIN cable x1
- Screws pack
-
-
Weight: 0.018 kg
