SKU: 19340
Part Number: Pico-LCD-1.14
Brand: Waveshare
Korisne informacije:

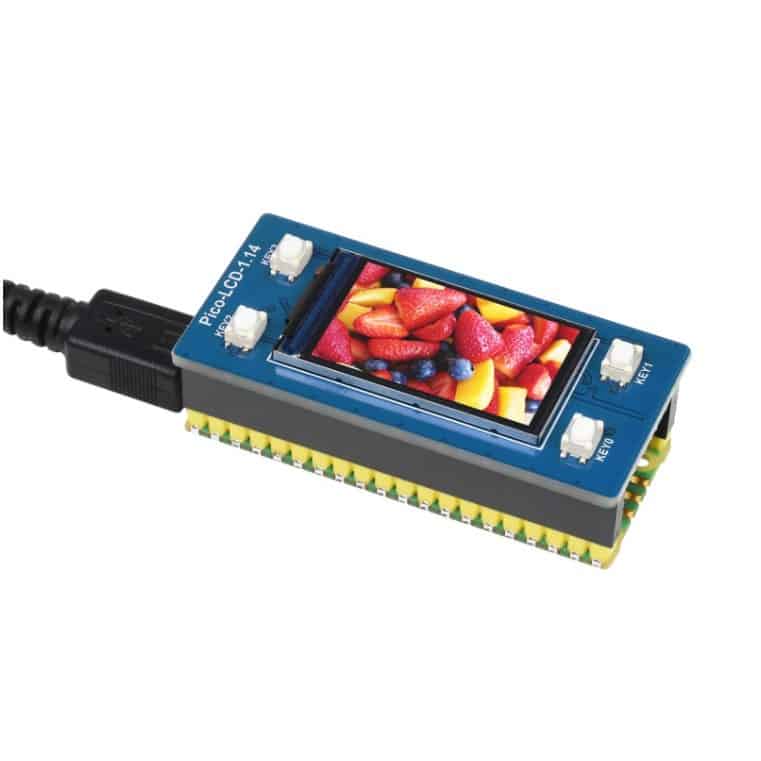

Pico-LCD-1.14 1.14inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×135 Pixels, SPI Interface
1.14" LCD Display Module For Pico Embedded ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
Features At A Glance
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGE |
2.6 ~ 5.5V |
RESOLUTION |
240×135 pixels |
COMMUNICATION INTERFACE |
4-wire SPI |
DISPLAY SIZE |
24.91 × 14.86mm |
DISPLAY PANEL |
IPS |
PIXEL SIZE |
0.1101 × 0.1035mm |
DRIVER |
ST7789 |
DIMENSIONS |
52.00 × 25.00mm |

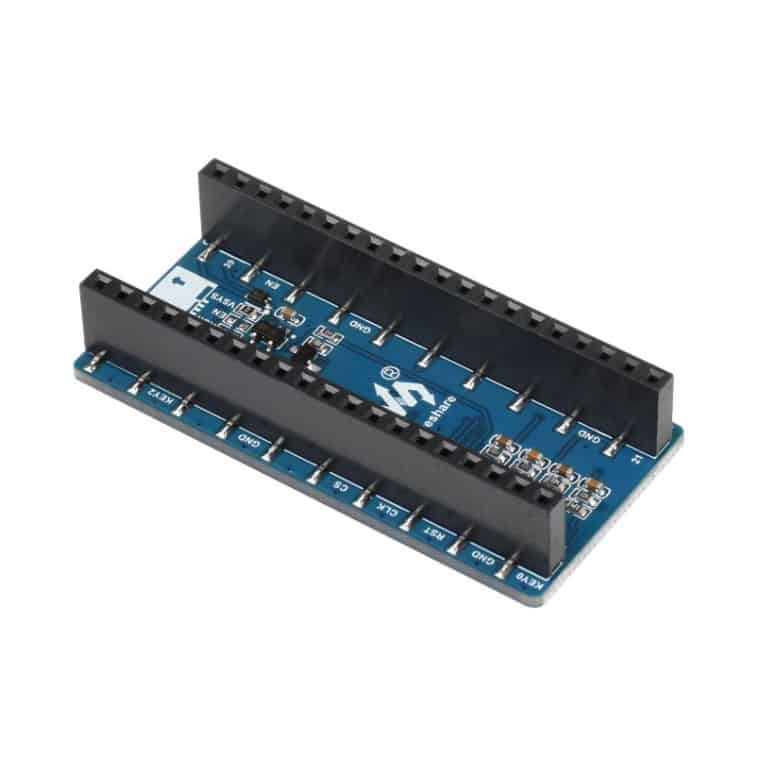

Raspberry Pi Pico Header Compatibility Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

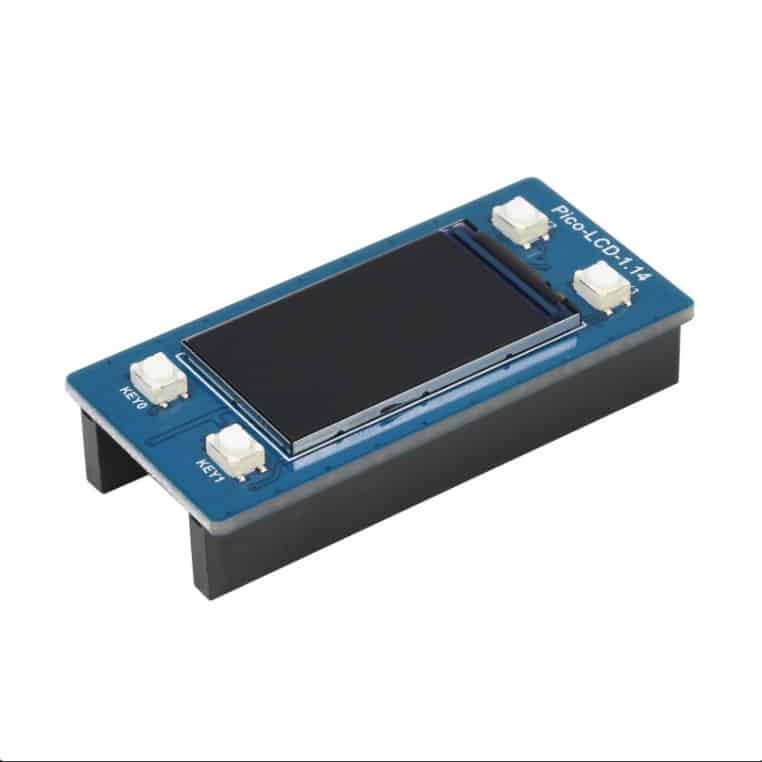

4x User Buttons For Easy Interacting

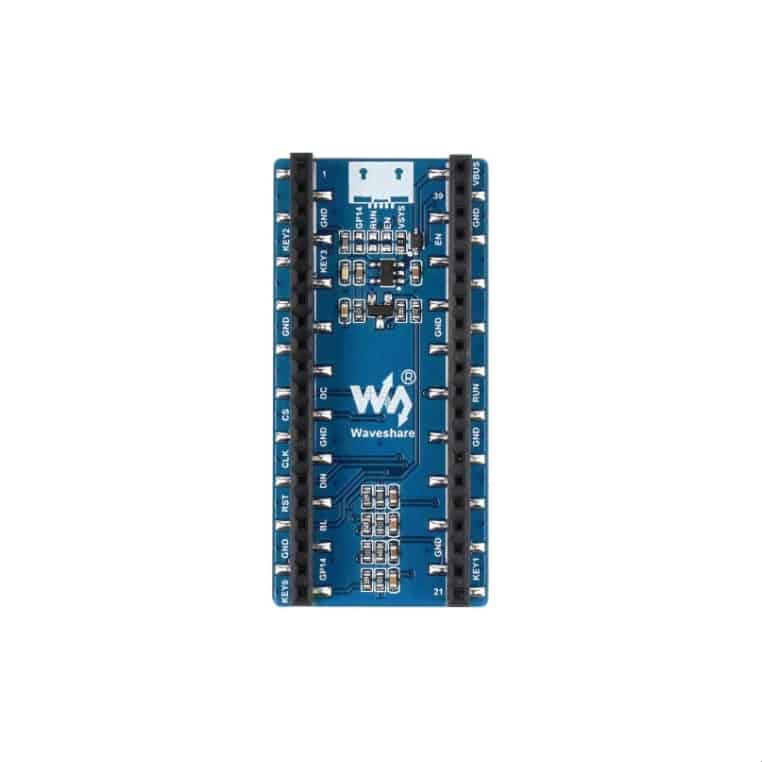

Raspberry Pi Pico is NOT included. Pinout Definition
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.011 kg
- Pico-LCD-1.14 x1
