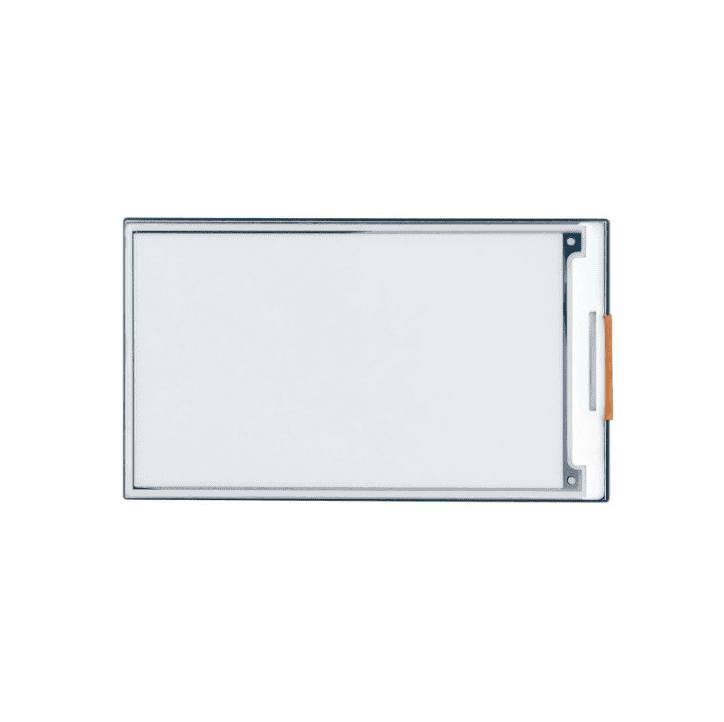

Obavesti me kada proizvod bude dostupan!Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
| OPERATING VOLTAGE | 3.3V/5V | DISPLAY COLOR | Black/White |
|---|---|---|---|
| INTERFACE | 3-wire SPI, 4-wire SPI | GREY SCALE | 4 |
| OUTLINE DIMENSIONS | 107 × 64mm | FULL REFRESH TIME | 4s |
| DISPLAY SIZE | 92.80 × 55.68mm | PARTIAL REFRESH TIME | 0.7s |
| DOT PITCH | 0.116 × 0.116mm | REFRESH POWER | <35mW |
| VIEWING ANGLE | >170° | STANDBY CURRENT | <0.01uA (almost none) |
| RESOLUTION | 800 × 480 pixels | ||
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

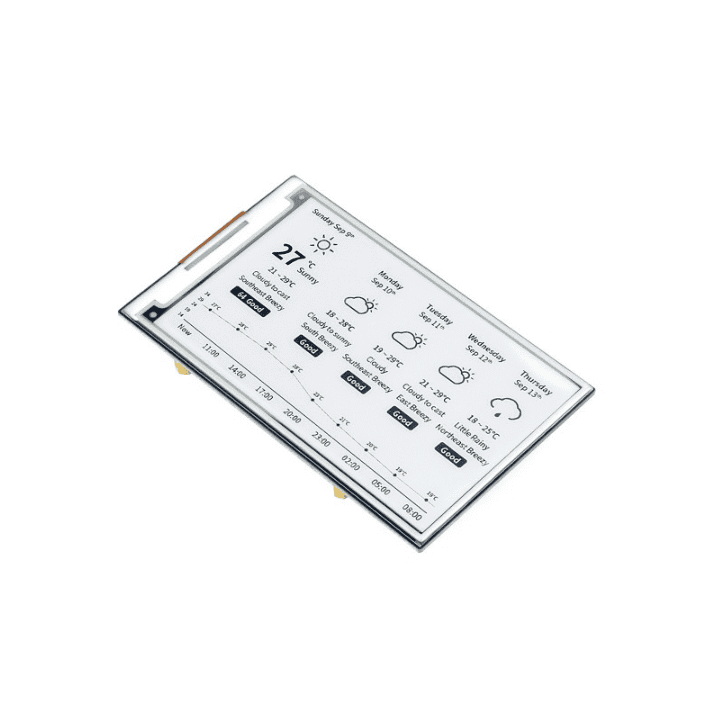

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

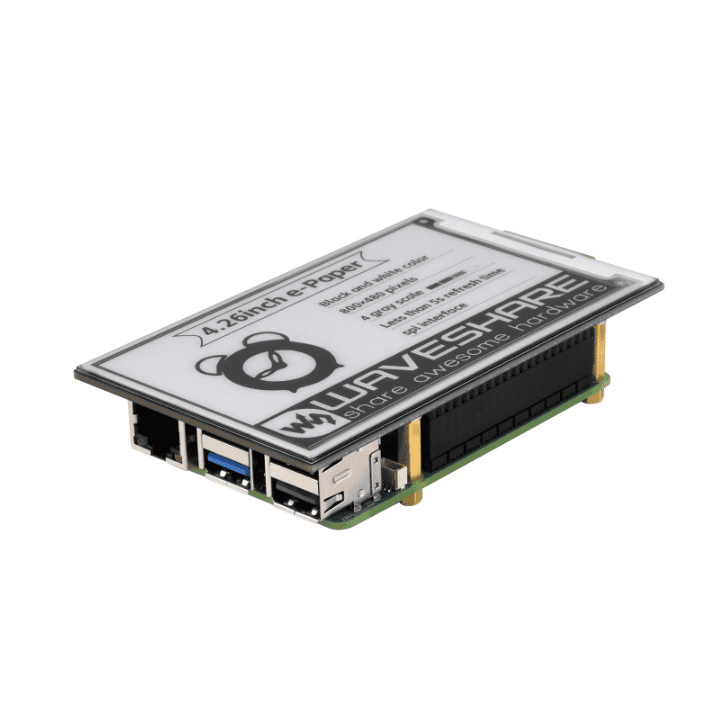

Compatible With Raspberry Pi Series Boards
* for reference only, the Raspberry Pi in the picture is NOT included
For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

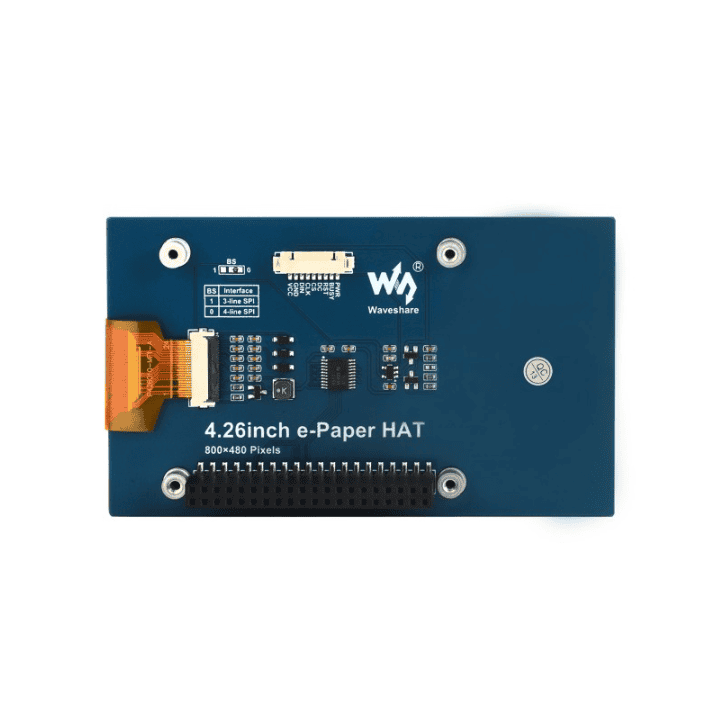

| PWR | Power on/off control |
|---|---|
| BUSY | Busy status output pin |
| RST | External reset, low active |
| DC | Data/Command selection (high for data, low for command) |
| CS | SPI chip selection, low active |
| CLK | SPI SCK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Compatible With 3.3V / 5V MCUs
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
