SKU:28643
Part No.:Pico-DALI2
Brand:Waveshare
Korisne informacije:
www.waveshare.com/wiki/Pico-DALI2 DALI2 expansion Module for ESP32-Pico series boards, Supports DALI communication for customized control of multiple lighting groups
DALI2 expansion Module for ESP32-Pico series Enabling DALI communication for ESP32-Pico series boards
Features Suitable for ESP32-C6-Pico / ESP32-S3-Pico development boards, supports sending DALI signals to lighting source controllers and achieving customized control of multiple lighting groups
- Compatible with Pico interface, based on the ESP32-C6-Pico header, suitable for ESP32-C6-Pico / ESP32-S3-Pico

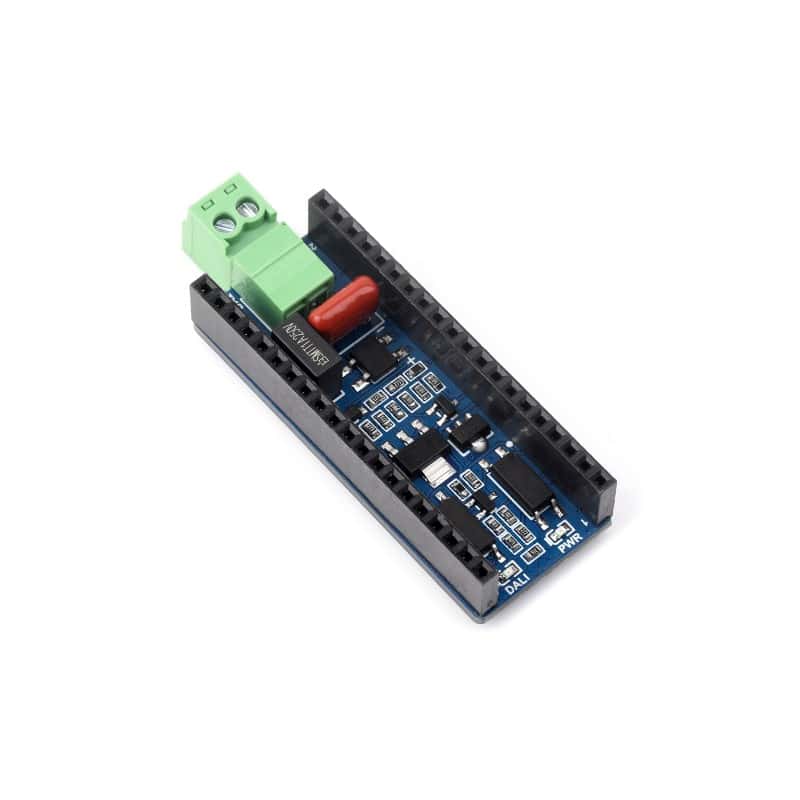

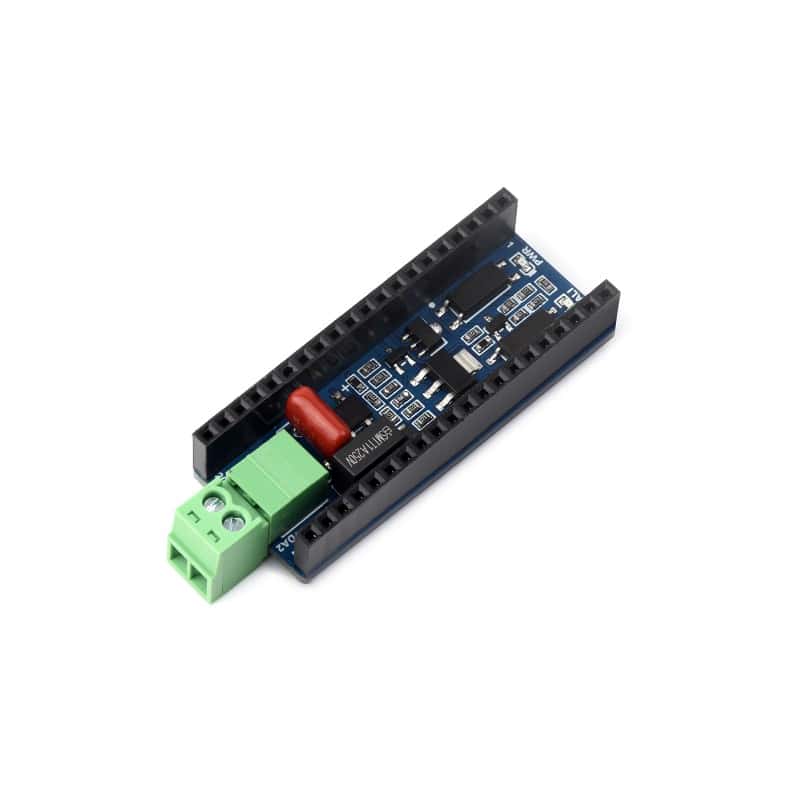

- Onboard DALI communication screw terminal for connecting external DALI devices
- Comes with examples for ESP32-S3 / ESP32-C6, enabling customized control through simple modifications

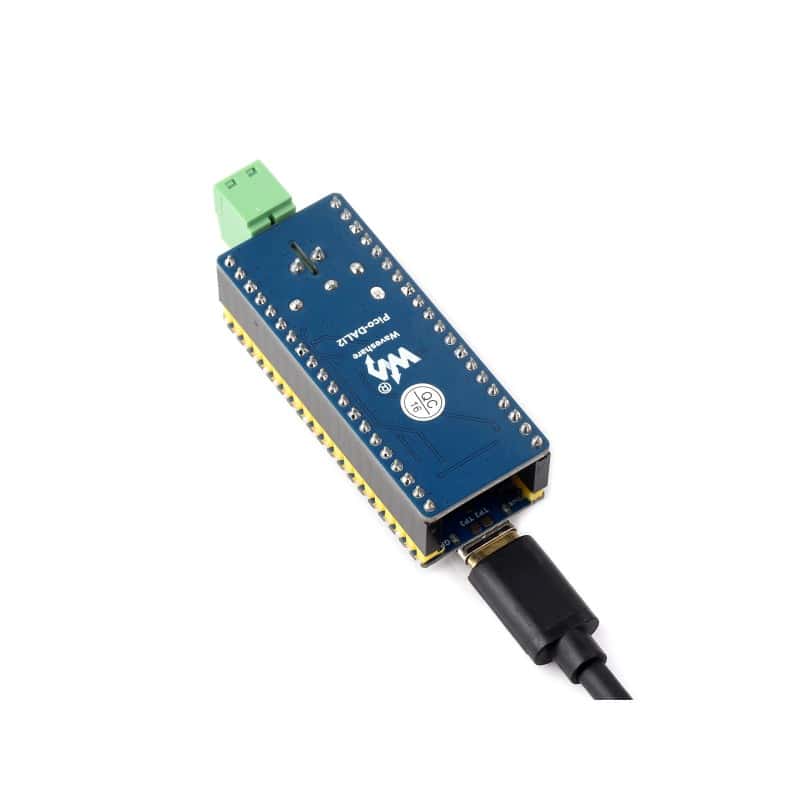

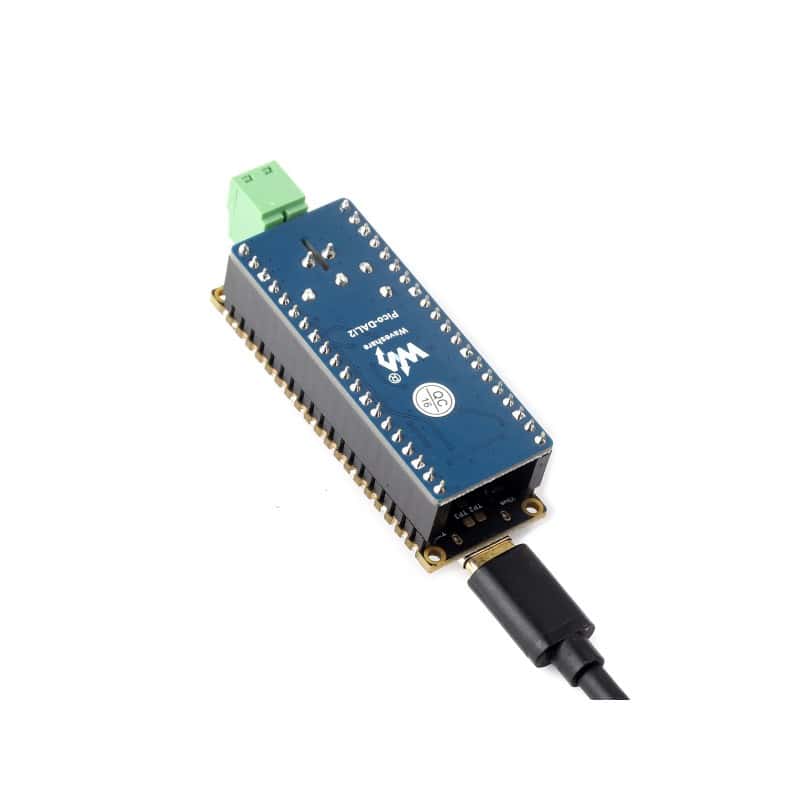

ESP32-C6-Pico header compatibility
ESP32-C6-Pico is NOT included. What's On Board
Pinout definition
Application Scenarios
* for reference only, please refer to the Package Content for detailed part list
Outline dimensions
Package content: Weight: 0.156 kg
Pico-DALI2 x1
