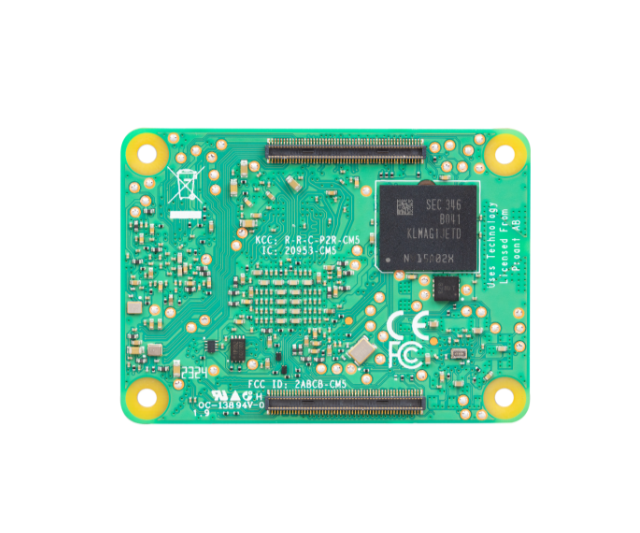

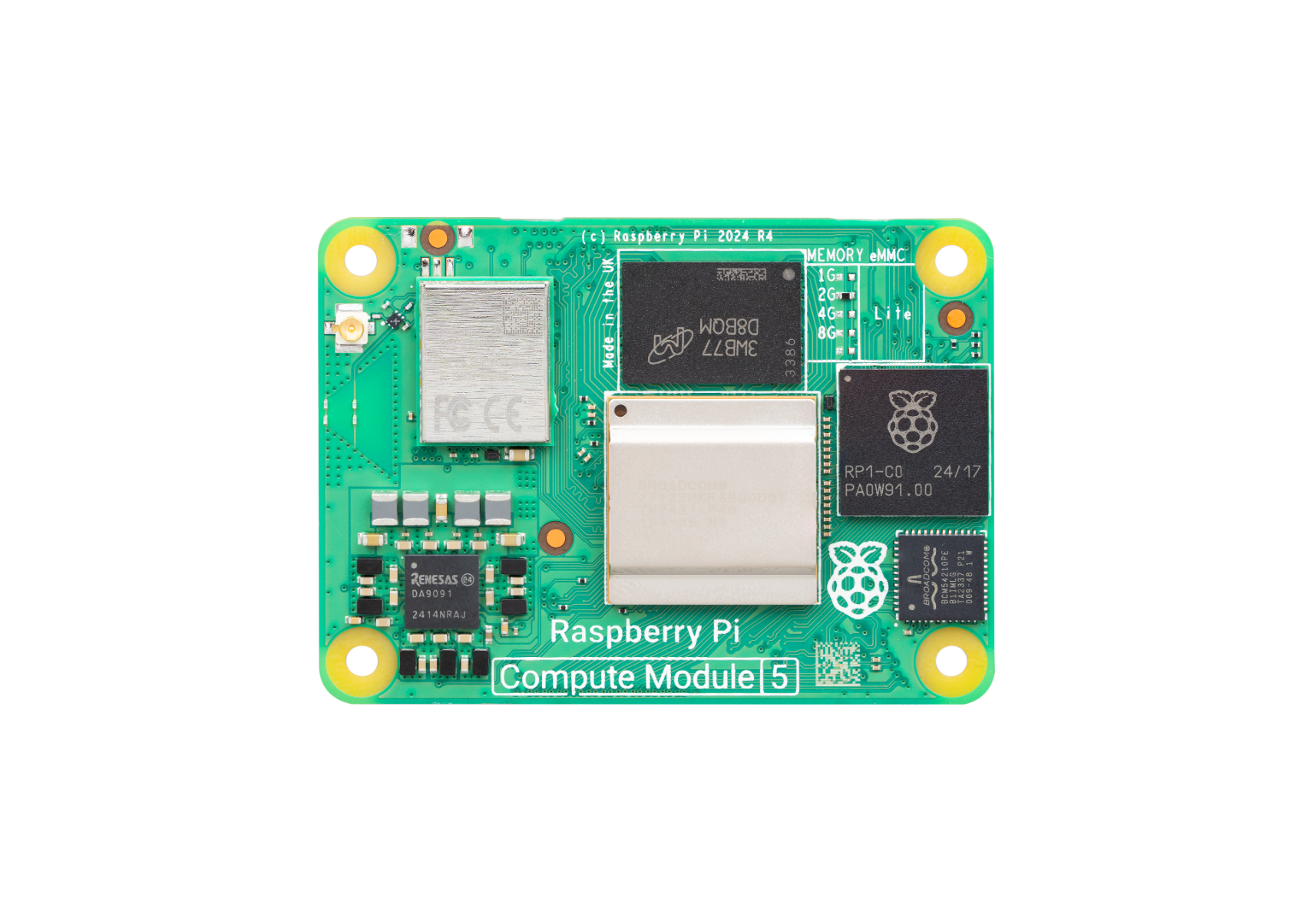

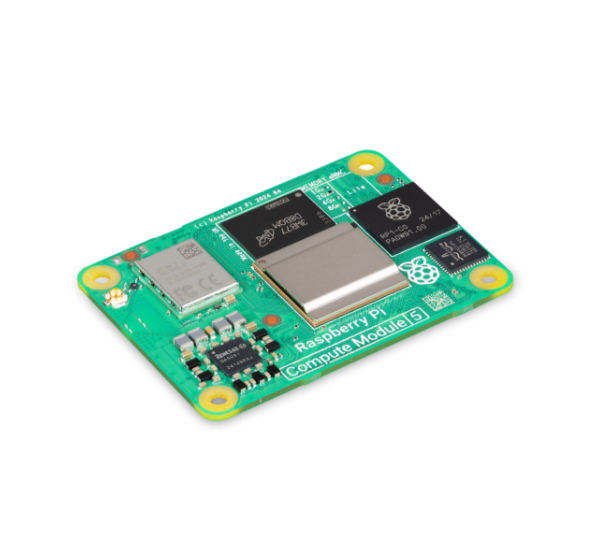

tures a quad-core Arm Cortex-A76 processor, dual 4Kp60 HDMI output, Gigabit Ethernet, optional fully-certified wireless module providing Wi-Fi® and Bluetooth connectivity. Compute Module 5 features additional I/O interfaces allowing even more flexibility and providing a greater breadth. It features up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options such as 5 × UART, 5 × I2C, 5 × SPI, 1 × SDIO interface, 1 × DPI, 1 × I2S, 4 × PWM ch, 3 × GPCLK O/P.
- 4GB RAM capacity and 32GB eMMC
- Form factor: 55mm x 40mm x 4.7mm module and 4 × M2.5 mounting holes
- Broadcom BCM2712 quad-core 64bit arm cortex-A76 (Armv8) SoC at 2.4GHz processor
- 2.4GHz/5.0GHz IEEE 802.11 b/g
/ac wireless, Bluetooth 5.0, BLE
- On-board electronic switch to select between PCB trace or external antenna
- Gigabit Ethernet PHY supporting IEEE 1588, 1 × PCIe x1 root complex, Gen 2 (5Gbps)
- 1 x USB 2.0 and 2 x USB 3.0 ports, supporting simultaneous 5Gbps operation
- Video: 2 x HDMI 2.0 ports and 2 x 4-lane MIPI ports and 4Kp60 HEVC decoder multimedia
- Single +5V PSU input supports USB PD for up to 5A at 5V input power
- Operating temperature range from -20°C to +85°C
Applications
Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things)
Technical Specifications
SOC Type Broadcom BCM2712
No. of Cores 4 Cores
GPU VideoCore VII
eMMC 32GB
Wi-Fi Connectivity 2.4GHz and 5GHz IEEE 802.11 b/g
/ac
Product Range Compute Module 5 Series
Core Type 64-bit ARM Cortex-A76 v8
RAM Memory 4GB LPDDR
CPU Speed 2.4GHz
Compute Module Interface CSI, DPI, DSI, HDMI, I2C, I2S, PCIe, PWM, SDIO, SPI, UART, USB
Bluetooth Connectivity Bluetooth 5.0 BLE
