A7670E Cat-1/GNSS HAT --

Šifra: w26631

3.690,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Odmah dostupno više od 5

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.144 Kg

Konektori, žice, protobord

SKU: 26631
Part Number: A7670E Cat-1/GNSS HAT
Brand: Waveshare

Korisne informacije: www.waveshare.com/wiki/A7670E_Cat-1/GNSS_HAT

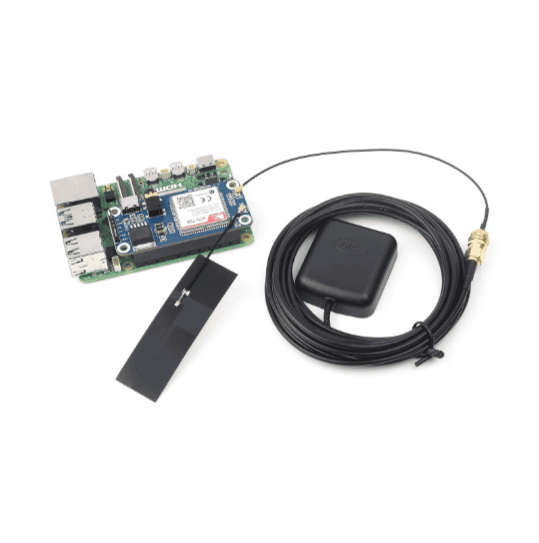

Cat-1/GSM/GPRS/GNSS HAT for Raspberry Pi, Based On A7670E module, LTE Cat-1 / 2G support, GNSS positioning

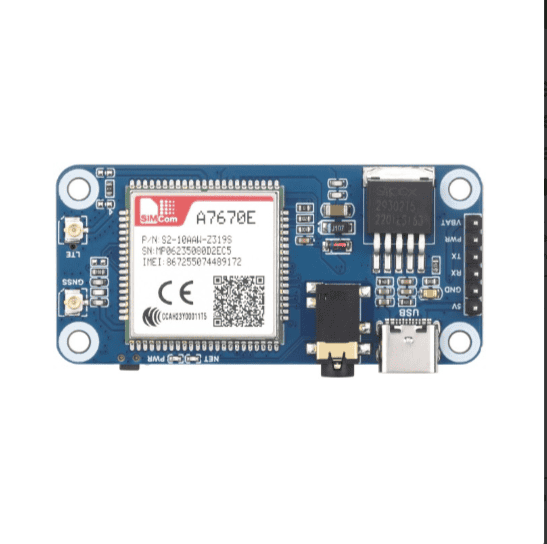

Cat-1/GSM/GPRS/GNSS HAT For Raspberry Pi

Based On A7670E, Enabling LTE Cat-1 / 2G Communication, Telephone Call, SMS, LBS Positioning And GNSS Positioning

Features At A Glance

The A7670E Cat-1/GNSS HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on.

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL

Supports dial-up, telephone call, SMS

Supports LBS base station positioning, it is able to get the approximate position info via mobile network

Supports GPS, BeiDou, GLONASS positioning

TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words

Onboard USB interface, for testing AT Commands, network communication, and so on

Onboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc.

Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like Arduino/STM32

SIM card slot, supports 1.8V/3V SIM card

2x LED indicators, easy to monitor the operating status

Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

FREQUENCY BAND
LTE Cat-1	LTE-FDD: B1, B3, B5, B7, B8, B20
2G	GSM/GPRS/EDGE: 900/1800 MHz
GNSS	GPS, BeiDou, GLONASS
SMS AND AUDIO
SMS	Supported types: MT, MO, CB, Text, PDU
SMS	Storage: USIM card (CB couldn't be stored on SIM card)
Audio feature	Standard 3.5mm audio jack for audio input/output
OTHER
Power supply	5V (via USB port or 5V pinheader), 3.7 ~ 4.2V (via VBAT pinheader, supports 3.7V Li-ion battery power input)
Operating voltage	3.3V
Dimensions	65 × 30.5mm

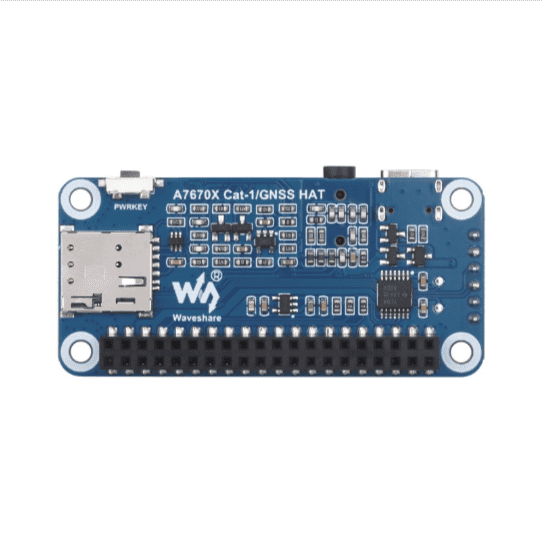

Standard Raspberry Pi 40PIN GPIO

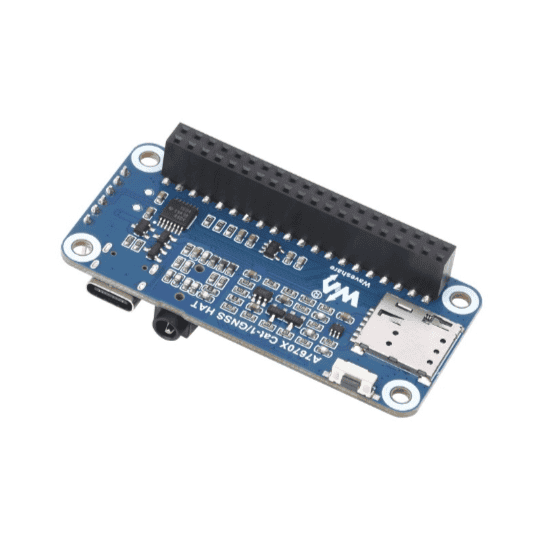

Compatible With Raspberry Pi Series Boards

Connecting With Raspberry Pi 5

Connecting With Zero 2 WH

* for reference only, please refer to the Package Content for detailed part list

Multi Band Support Of LTE Cat-1/2G

Multi Band And Multi Regions Support, Mainly Applicable In Europe, Southeast Asia, West Asia, Africa, China, South Korea

* Please confirm the supported bands according to your local service provider

Dial-Up On Windows/Linux

LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)
EDGE: Up To 236.8Kbps (Uplink / Downlink)
GPRS: Up To 85.6Kbps (Uplink / Downlink)

GNSS Positioning

Supports GPS, BeiDou, GLONASS Positioning

Cloud Communication

Supports Communication Protocols Including TCP/IP, HTTP(S), MQTT(S), FTP(S), And SSL

Telephone Call & SMS Support

Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack

Pinout Definition

Application Example

Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service

Waveshare.Cloud Support

Provides Tutorial And Demo For Quick Start Of Smart IoT Solutions, With Large-Screen Data Visualization Display To Meet Various Application Scenarios

Smart garden solutions:
The A7670E Cat-1/GNSS HAT can report various sensor data of the garden through MQTT to remotely control device ON/OFF, irrigation, fertilization, and so on.

Server Performance Cloud Monitoring:
The A7670E Cat-1/GNSS HAT can report various performance parameters of the Raspberry Pi server through MQTT, and monitor the operation status in real-time through the cloud platform.

IoT GPS Mobile Positioning:
The A7670E Cat-1/GNSS HAT can regularly report the data of the GPS positioning module through MQTT to realize mobile detection, animal or device positioning and tracking, etc.
