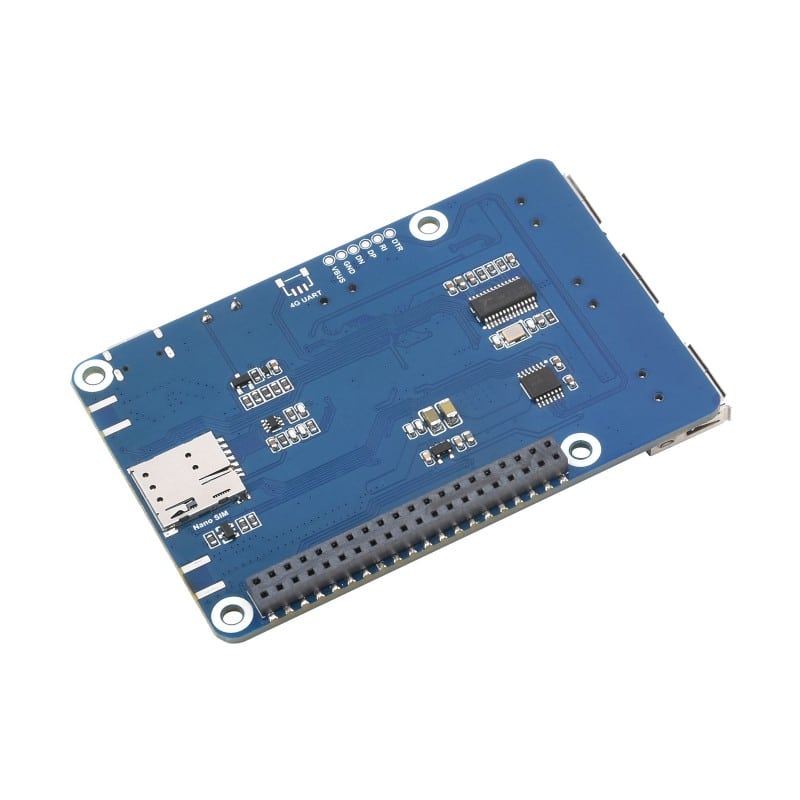

SIM7670G LTE Cat-1/GNSS HAT

Šifra: w26861

6.190,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Samo 1 na stanju

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.221 Kg

/accBoard/SIM7670G-LTE-Cat-1-GNSS-HAT/SIM7670G-LTE-Cat-1-GNSS-HAT-details-3.jpg"/>

Features At A Glance

The SIM7670G LTE Cat-1/GNSS HAT is an LTE Cat-1 module, supports wireless communication modes including LTE-TDD, LTE-FDD, with up to 10Mbps downlink rate and 5Mbps uplink rate. Supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070/A7670E series, and the AT commands are mostly compatible with SIM800 series. It is suitable for IoT applications like remote information processing, monitoring devices, industrial routers, remote diagnosis, satellite positioning, and so on.

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL

Supports RNDIS, NDIS and ECM dial-up

Supports GPS, GLONASS, Galileo, BeiDou positioning

Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on

Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC

Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards

SIM card slot, supports 1.8V/3V SIM card

6x LED indicators, easy to monitor the module operating status and USB connecting status

Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)

Specifications

COMMUNICATION PARAMETERS
Frequency band	LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66 LTE-TDD：B34, B38, B39, B40, B41
Data transmission	≤5Mbps(UL) ≤10Mbps(DL)
GNSS	GPS, GLONASS, Galileo, BeiDou
OPERATING PARAMETERS
Power supply	5V
Logic level	3.3V
Dimensions	85 × 56.7mm

Standard Raspberry Pi 40PIN GPIO

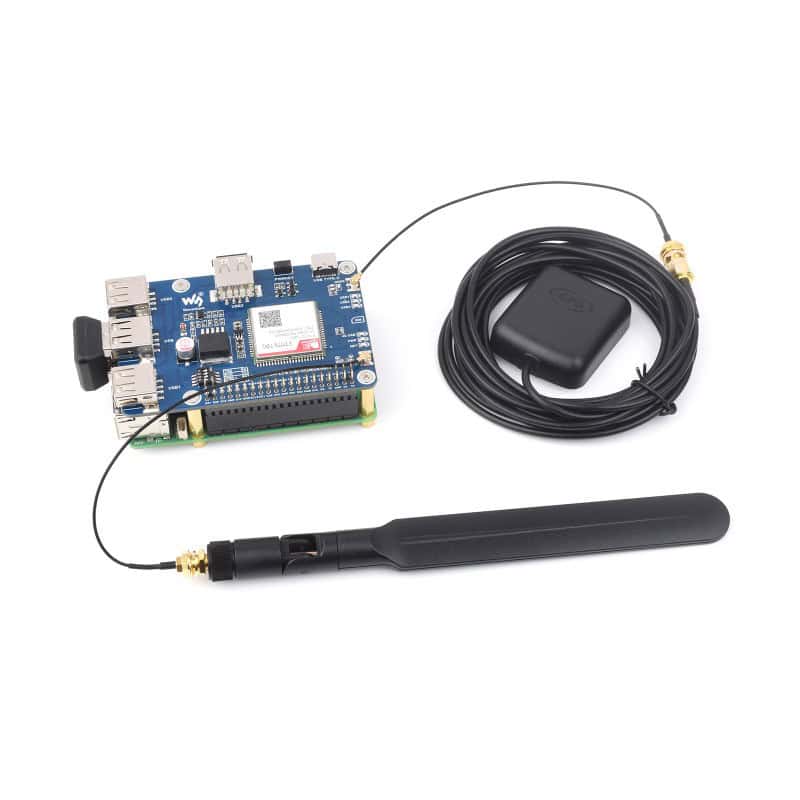

Compatible With Raspberry Pi Series Boards

Connecting With Raspberry Pi 5

Connecting With Raspberry Pi 4B

Connecting With CM4 IO Base Board

* for reference only, please refer to the Package Content for detailed part list

Global Multi Band Support Of LTE Cat-1

LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)

Dial-Up On Windows/Linux

Supports Connecting To Windows PC, Raspberry Pi, Or Other Linux Industrial Devices Via USB Interface For LTE Cat-1 Networking And Extending USB Ports

GNSS Positioning

Supports GPS, GLONASS, Galileo, BeiDou Positioning

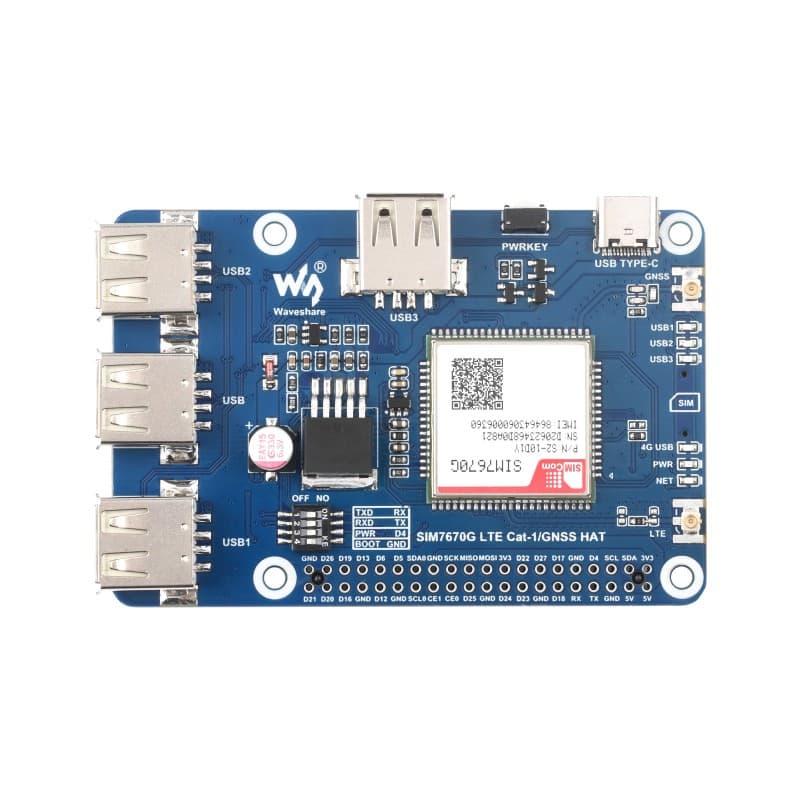

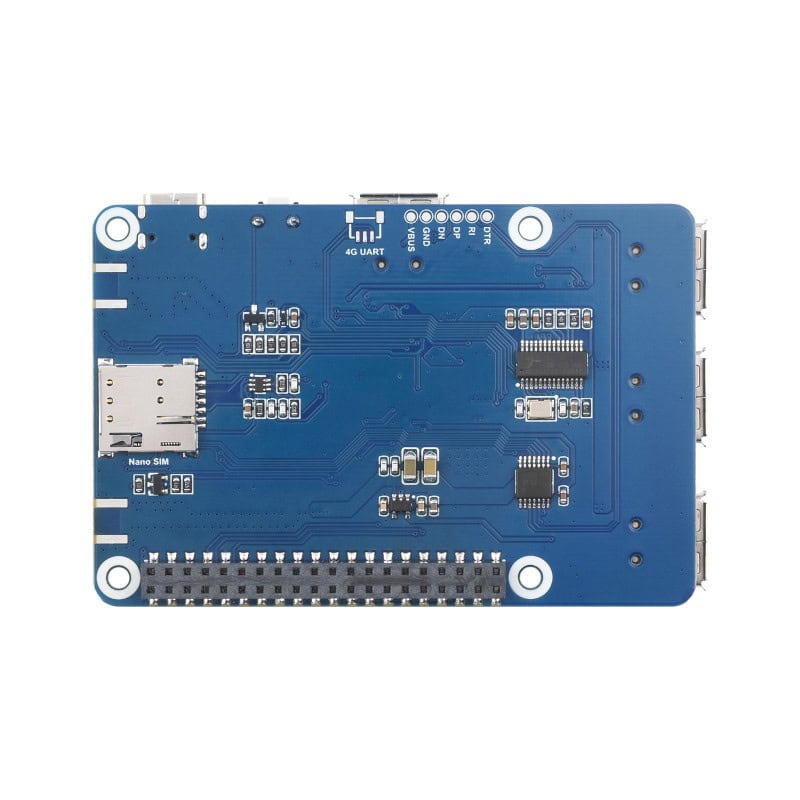

What's On Board

SIM7670G module

Raspberry Pi 40PIN GPIO header

DIP switches
for switching to connect the UART and power ON/OFF control of the module to the Raspberry Pi GPIO;
switches to BOOT for entering the burning mode

USB Type-A interface
for connecting to USB port of the host such as Raspberry Pi for 4G communication, power supply, and extending USB ports

3x USB extended ports

PWRKEY

USB Type-C port
for connecting to USB port of the host such as Raspberry Pi for 4G communication, power supply, and extending USB ports

GNSS IPEX 1 connector

LED indicators

LTE IPEX 1 connector

Nano SIM card slot

4G UART pads
compatible with Raspberry Pi 5 3PIN UART connector

Reserved test pads
for connecting with other host boards

FE1.1S USB 2.0 HUB
USB HUB chip

Pinout Definition

Application Example

Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service

Waveshare.Cloud Support

Provides Tutorial And Demo For Quick Start Of Smart IoT Solutions, With Large-Screen Data Visualization Display To Meet Various Application Scenarios

Smart garden solutions:
The SIM7670G LTE Cat-1/GNSS HAT can report various sensor data of the garden through MQTT to remotely control device ON/OFF, irrigation, fertilization, and so on.

Server Performance Cloud Monitoring:
The SIM7670G LTE Cat-1/GNSS HAT can report various performance parameters of the Raspberry Pi server through MQTT, and monitor the operation status in real-time through the cloud platform.

IoT GPS Mobile Positioning:
The SIM7670G LTE Cat-1/GNSS HAT can regularly report the data of the GPS positioning module through MQTT to realize mobile detection, animal or device positioning and tracking, etc.
