SKU: 14882
Part Number: RS485 CAN HAT
Brand: Waveshare
Korisne informacije:

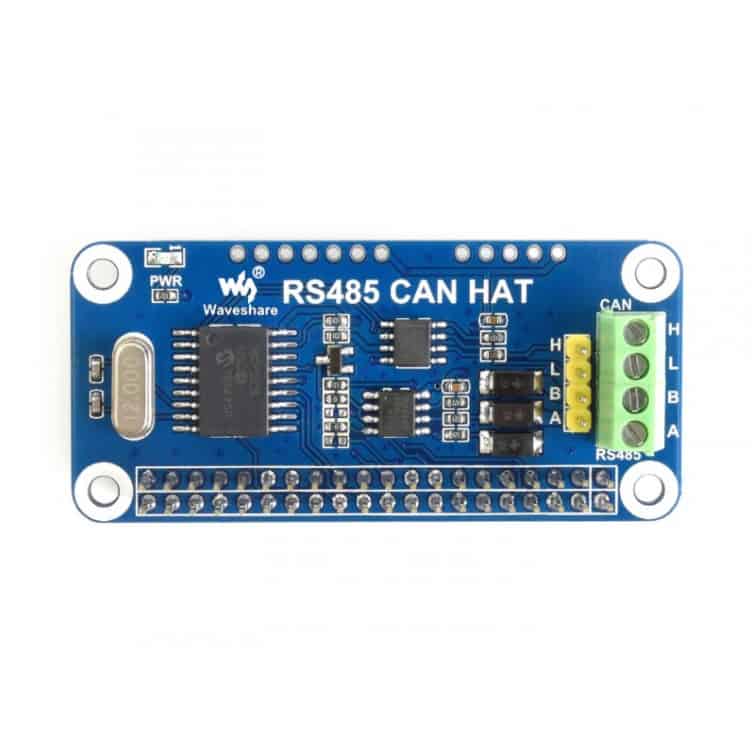

www.waveshare.com/wiki/RS485_CAN_HAT RS485 CAN HAT For Raspberry Pi Allows Stable Long-Distance Communication Between Raspberry Pi And Other Devices
Comes With Online Development Resources And Manual
Features At A Glance
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
- RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
- Onboard 120Ω terminal resistor for RS485 and CAN interfaces, enabled via DIP switch
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
- Reserved control header, allows working with other control boards
- Comes with online development resources and manual (examples in wiringPi/python)
Specifications
CAN CONTROLLER |
MCP2515 |
OPERATING VOLTAGE |
3.3V |
CAN TRANSCEIVER |
SIT65HVD230DR |
MOUNTING HOLE SIZE |
3.0mm |
485 TRANSCEIVER |
SP3485 |
DIMENSION |
65×30mm |
Designed For Raspberry Pi Series Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
Expand CAN And RS485 Functions CAN: Onboard CAN Controller MCP2515 Via SPI Interface, With Transceiver SIT65HVD230DR
RS485: Controlled Via UART, Half-Duplex Communication, Onboard Transceiver SP3485
Onboard Transient Voltage Suppressor Effectively Suppress Surge Voltage And Transient Spike Voltage In The Circuit For RS485 Transceiving

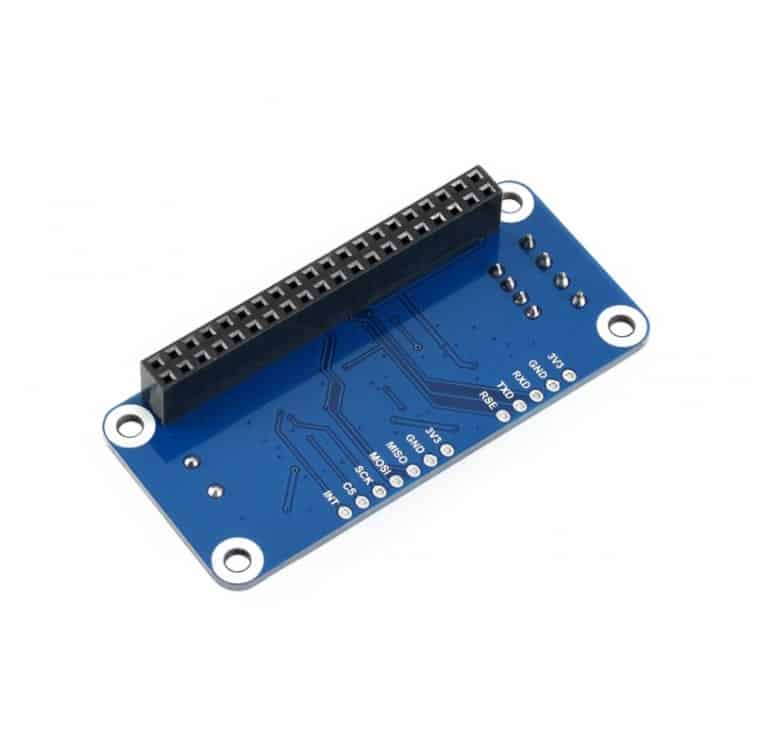

Pin Definition

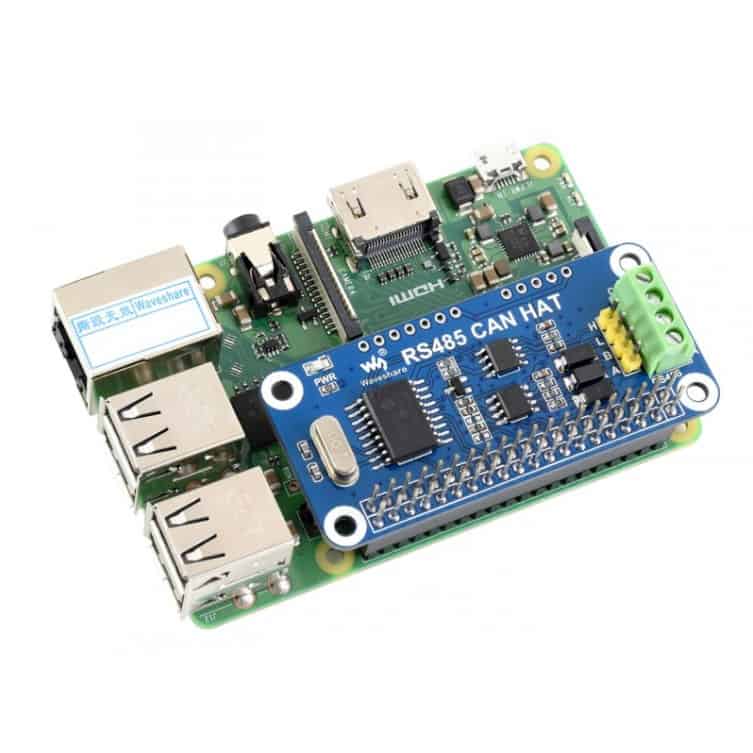

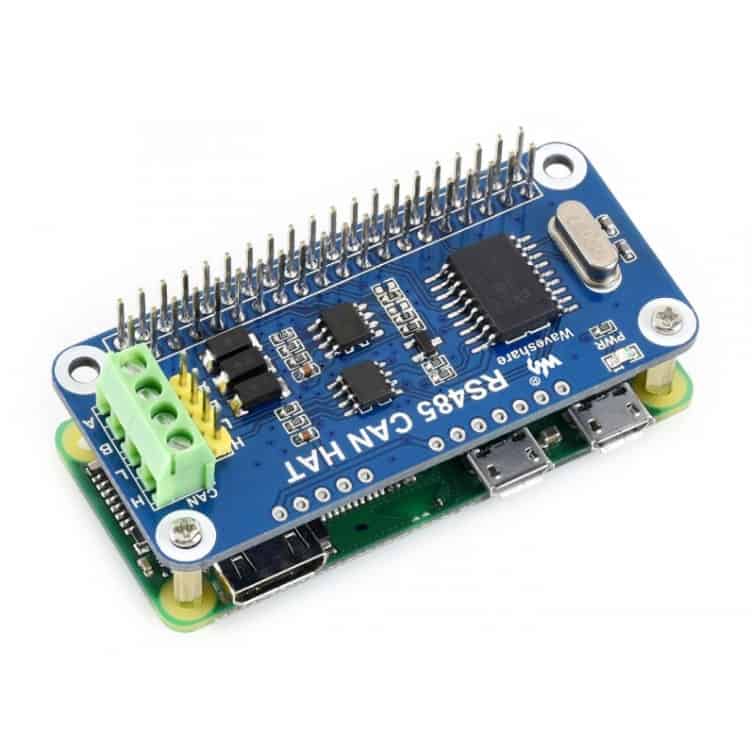

Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.018 kg
- RS485 CAN HAT x1
- RPi screws pack (2pcs) x1
