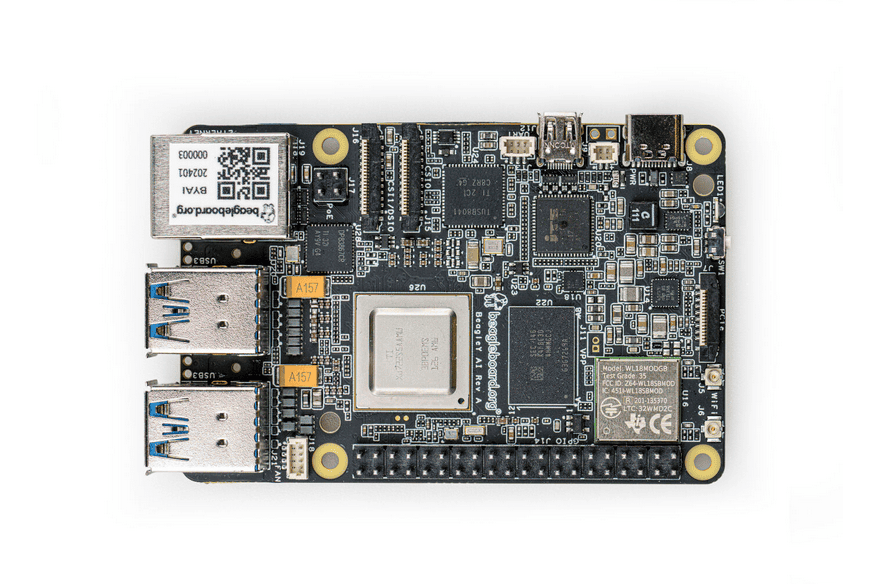

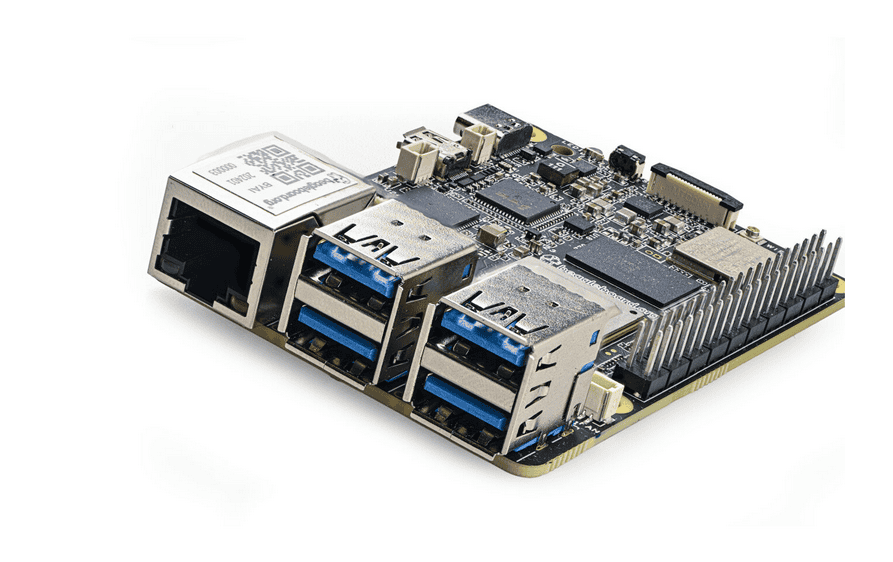

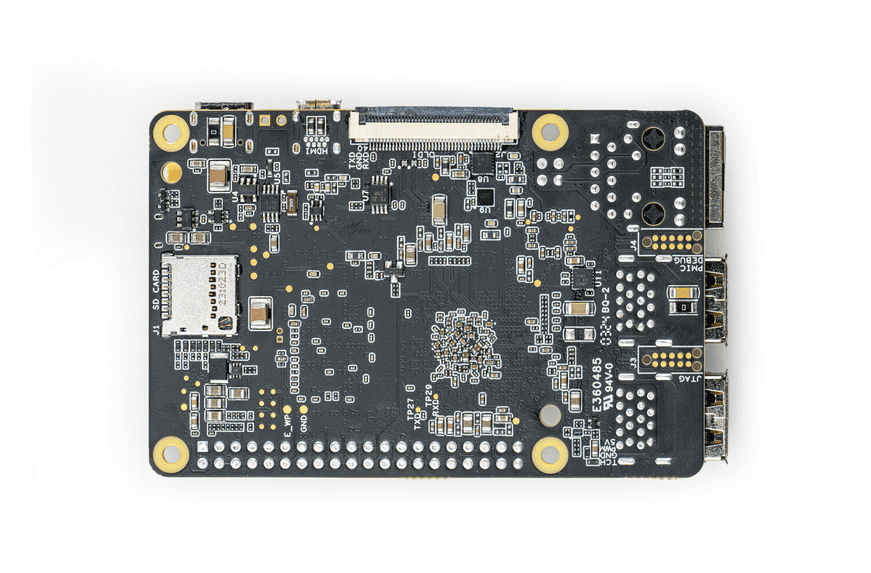

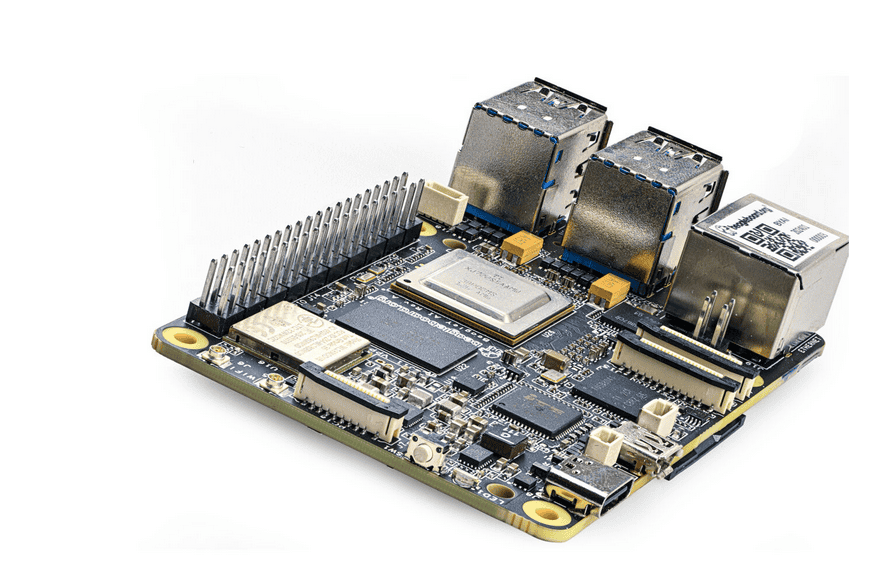

BeagleY-AI

Šifra: R0160

11.999,00 RSD

Cena sa PDV

Trenutno nedostupno za online naručivanje

Obavesti me kada proizvod bude dostupan!

Kategorija: mini PC
Težina po komadu: 0.108 Kg

-size: 26px;">Description
BeagleY-AI is based on the Texas Instruments AM67A Arm-based vision processor. It features a quad-core 64-bit Arm®Cortex®-A53 CPU subsystem at 1.4GHz, Dual general-purpose C7x DSP with Matrix Multiply Accelerator (MMA) capable of 4 TOPs each, Arm Cortex-R5 subsystem for low-latency I/O and control, a 50 GFlop GPU, video and vision accelerators, and other specialized processing capability.

About BeagleBoard.org® Foundation -Bringing open source hardware to an industry standard form-factor

Familiar form-factor that works with a broad ecosystem of accessories

Adds 4 TOPS of Edge AI acceleration to a fan-less computing platform

Based on industrial market preferred suppliers, Texas Instruments, BeagleBoard.org and Seeed Studio

Why BeagleBoard.org?

Long-term innovator and disruptive force in single board computers

Professionally-focused community engaged to help you solve real-world challenges at beagleboard.org

Always improving body of introductory and technically detailed documentation at beagleboard.org

Open source hardware better enables professional developers with detailed collaborative repository at org

Why open source hardware?

Gives you the opportunity to build derivatives that are cost, size, power and connectivity optimized

Gives you better understanding and ability to resolve issues at the lowest possible levels

Gives you ownership to decide manufacturing and supply chain options that work best for you

Features

High-Performance Processor: Powered by the Texas Instruments AM67A AI vision processor with four 64-bit Arm® Cortex®-A53 CPU cores up to 1.4 GHz, enabling robust AI, machine vision, and real-time automation capabilities.

AI Acceleration: Equipped with dual C7x DSPs and two Matrix Accelerators (MMAs) delivering up to 4 TOPS of deep learning performance, making it ideal for complex AI tasks.

Advanced Connectivity: Features high-speed PCIe, USB3 interfaces, and flexible multimedia I/Os, supporting cost-effective multi-camera and multi-display systems.

Rapid Prototyping: The 40-pin expansion header allows for solder-free system prototyping with countless compatible sensors, actuators, and connectivity add-ons, facilitating rapid development.

Customizable and Open-Source: Fully open-source design that allows professional and advanced users to modify hardware, optimizing supply chain management, manufacturing, and creating tailored derivatives.

Elevate your projects with BeagleY-AI® – where high performance meets open-source innovation.

Chipset Features

Texas Instruments AM67A Arm-based Vision Processor

Quad-core 64-bit Arm® Cortex®-A53 CPU subsystem at 1.4GHz

Dual general-purpose C7x DSP with Matrix Multiply Accelerator (MMA) capable of 4 TOPS

Arm Cortex-R5 subsystem for low-latency I/O and control

GPU, video, and vision accelerators, and other specialized processing capability

High-speed interfacesPCI-Express® Gen3 single lane controller

1-Gen1 Port

Gigabit Ethernet

Board Features

Memory

4GB LPDDR4

microSD card socket

Board identifier EEPROM

Networking

org BM3301 module
- Wi-Fi 6 (IEEE802.11ax)
- Bluetooth® 5.4 with Bluetooth Low-Energy (BLE)

Gigabit Ethernet with power-over-Ethernet (PoE+) support via add-on

Display Outputs (3 Simultaneous Displays)

microHDMI

OLDI (LVDS) with touchscreen support

MIPI-DSI with touchscreen support (muxed with MIPI-CSI)

Other I/O

PCI-Express® Gen3 x 1 interface (requires external adapter)

4x USB3 (5Gbps) type-A host ports

1x USB2 (480Mbps) type-C device port and power input

40-pin expansion header

Fan power and control connector

Debugging

3-pin JST-SH console UART

10-pin TAG-CONNECT JTAG header

Application

Robotics

Factory and Building Automation

Test & Measurement

Medical

Human-Machine Interfaces (HMIs)

Intelligent Vision

-Image Classification

-Object Detection

-Semantic Segmentation

Specification

Parameters	Description
Processor	TI AM67A, Quad 64-bit Arm® Cortex®-A53 microprocessor subsystem at up to 1.4 GHz, multiple cores including Arm/GPU processors, DSP, and vision/deep learning accelerators up to 4 TOPS
RAM	4GB LPDDR4
Wi-Fi	Beagleboard BM3301, 802.11ax Wi-Fi
Bluetooth	Bluetooth Low Energy 5.4 (BLE)
USB Ports	4 x USB 3.0 Type A ports, supports 5Gbps operation 1 x USB 2.0 Type C, supports USB 2.0 device
Ethernet	Gigabit Ethernet, with PoE support (requires separate PoE HAT)
Camera/Display	1 x 4-lane MIPI camera/display transceivers 1 x 4-lane MIPI camera
Display Output	1 x HDMI display 1 x OLDI display
Real-time Clock (RTC)	Supports external RTC battery for power failure time retention
Debug UART	1 x 3-pin debug UART
Power	5V/5A DC power via USB-C, with Power Delivery support
Power Button	On/Off included
PCIe Interface	PCI-Express® Gen3 x 1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
Expansion Connector	40-pin header
Fan connector	1 x 4-pin fan connector, supports PWM speed control and speed measurement
Storage	microSD card slot, supports up to ultra high-speed SDR104 mode
Tag-Connect	1 x JTAG 1 x Tag-Connect for PMIC NVM programming (test and debug purposes only)
Board Dimension	85 x 56 x 20mm
