PI5-CASE-ARGON-NEO-M.2 Case

Šifra: w27089
Waveshare
Naši proizvodi ne prate standardne veličine - pre poručivanja obavezno proverite tabelu veličina.
5.690,00 RSD
Cena sa PDV
u korpu
  • Kategorija: mini PC
  • Težina po komadu: 0.185 Kg
Kućište sa m.2 slotom koje je u ponudi na oglasu ima donju stranu u sivoj boji.

SKU: 27089
Part Number: PI5-CASE-ARGON-NEO-M.2
Brand: Argon

Korisne informacije: www.waveshare.com/wiki/PI5-CASE-ARGON-NEO
Argon NEO Aluminum Alloy Case For Raspberry Pi 5, Built-In Cooling Fan, Removable Top Cover, Optional For M.2 NVME Expansion Slot, Raspberry Pi 5 Case

Aluminum Alloy Case For Raspberry Pi 5


Built-in Cooling Fan, Designed For Raspberry Pi 5



PI5-CASE-ARGON-NEO-M.2
PI5-CASE-ARGON-NEO-M.2
Upgrade Version
(with NVMe M.2 Solid State Drive slot)

* for reference only, the Raspberry Pi 5 is NOT included



Decent Looking, Stunning Aesthetics


Adopts Red ABS Bottom Case With Black Aluminum Top Cover, Simple & Nice Looking


PI5-CASE-ARGON-NEO Aluminum Alloy Case, Simple & Nice Looking

Precise Opening Design


Reversed GPIO Slot And Openings For Sorts Of Connectors, With Clear Labels


PI5-CASE-ARGON-NEO, inside view, precise openings

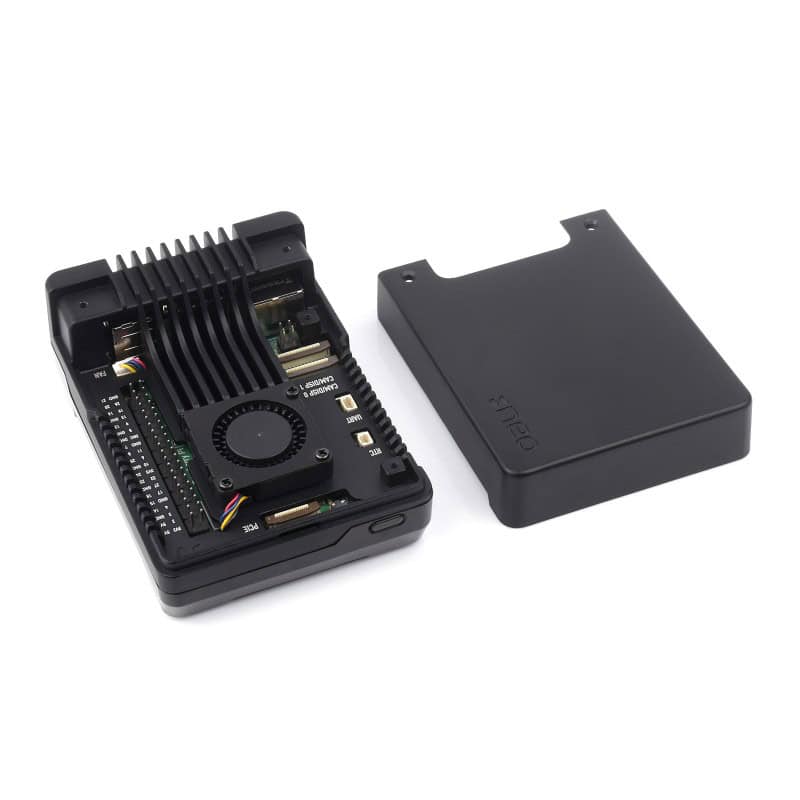

Built-In Cooling Fan


Built-In 30mm PWM Cooling Fan, With Removable Top Cover


PI5-CASE-ARGON-NEO with built-in cooling fan

Cooling Fan Cable Routing


Please Note That The 4PIN Cable Of The Cooling Fan Should Be Routed From The Underside Of The Case Middle Part Before Connecting To Pi 5


PI5-CASE-ARGON-NEO, Cooling Fan cable routing

With Nonskid Feet And Power ButtonPI5-CASE-ARGON-NEO with nonskid feet and power button

Dedicated PCIe To M.2 Expansion Board


Reserved M.2 NVME Solid State Drive Slot, With Built-In Heatsink


(* this function is only available on PI5-CASE-ARGON-NEO-M.2 version)


PI5-CASE-ARGON-NEO-M.2 with dedicated PCIe To M.2 expansion board

Easy To Install


Fix The Raspberry Pi 5 And The 3 Parts Of The Case With Screws


PI5-CASE-ARGON-NEO-M.2


PI5-CASE-ARGON-NEO-M.2 Installation introduction

* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.



Outline Dimensions

PI5-CASE-ARGON-NEO-M.2


PI5-CASE-ARGON-NEO-M.2 Outline Dimensions

Package content:



PI5-CASE-ARGON-NEO-M.2



  1. Metal case (with built-in cooling fan) x1

  2. PCIe cable 2PCS x1

  3. Thermal pad 2PCS x1

  4. Nonskid feet 4PCS x1

  5. Spare PCIe connector cover x1

  6. Screws pack x1


PI5-CASE-ARGON-NEO-M.2
