ORD-CM4-ANTENNA

Šifra: w18944

290,00 RSD

Cena sa PDV

Lista želja ?

Unesi količinu Odmah dostupno više od 5

Dodaj u korpu

Kategorija: mini PC
Težina po komadu: 0.013 Kg

SKU: 18944
Part Number: ORD-CM4-ANTENNA

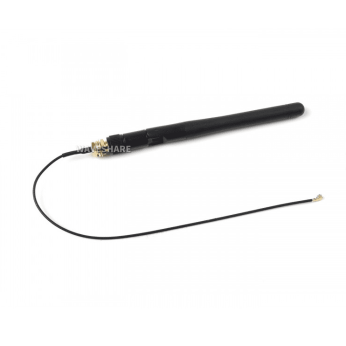

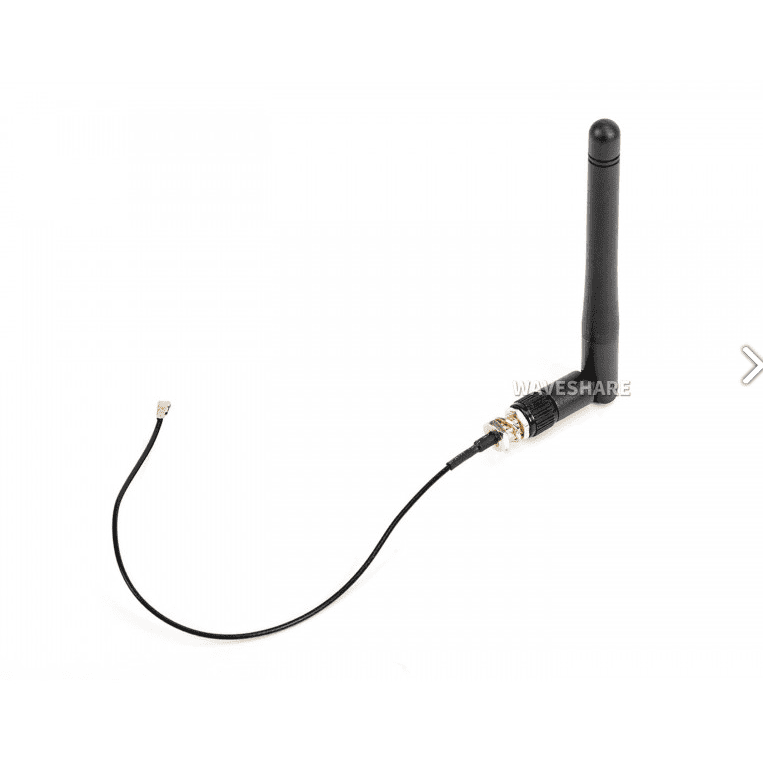

Pigtail:
Konektor je IPEX1
Antena:
Konektor je muški (ima iglicu)

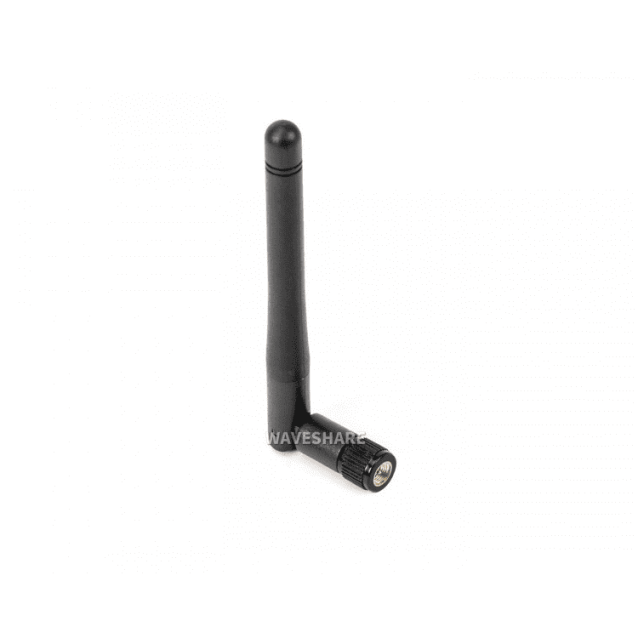

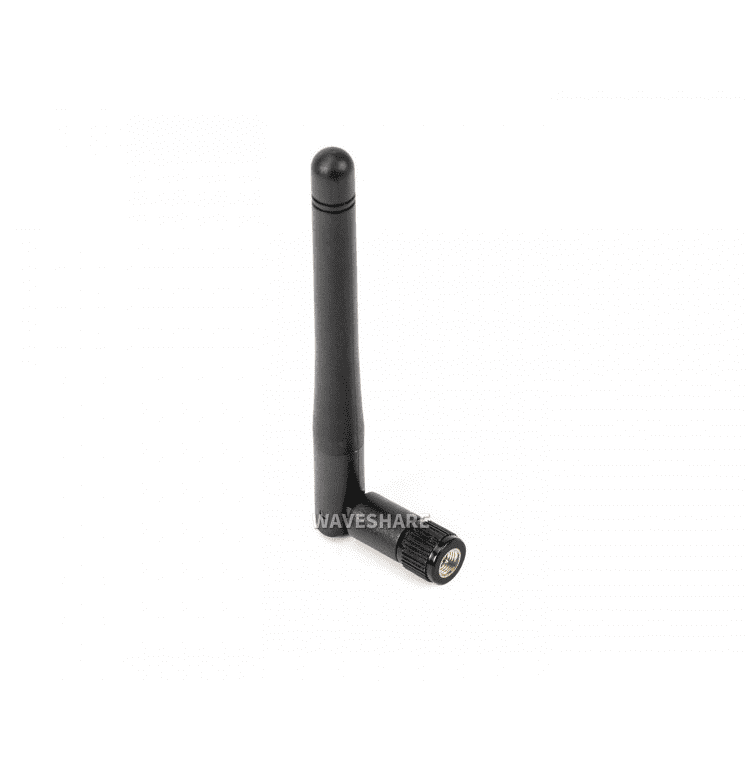

Compatible Antenna For Raspberry Pi Compute Module 4, Supports 2.4G/5G WiFi Frequency Band

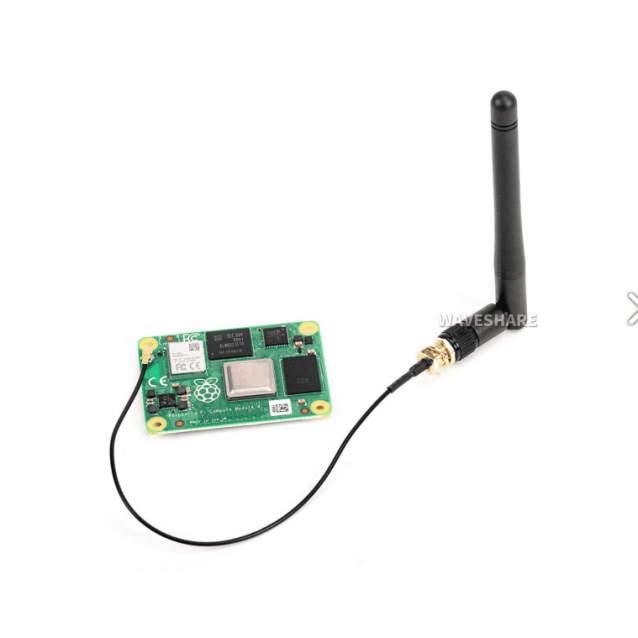

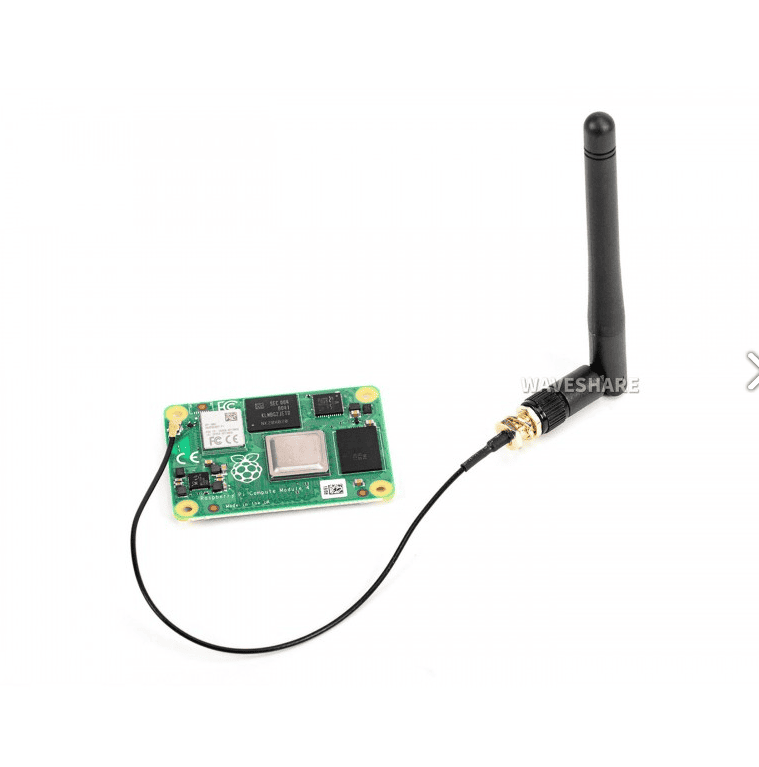

Compatible Antenna For Compute Module 4

The Compute Module 4 is NOT included.

Antenna Specification

FREQUENCY RANGE	2400-2500/5150-5850 MHz	MAXIMUM POWER	10 W
BANDWIDTH	100–700 MHz	DIMENSIONS	109 × 10 mm
VSWR	≤1.92	CONNECTOR	SMA male central pin
PEAK GAIN	2±0.5 dBi	BODY MATERIAL	TPEE
OUTPUT IMPEDANCE	50 Ω	OPERATING VOLTAGE	-20˚C ~ + 70˚C
POLARISATION	Vertical	RADIATION	Omnidirectional

Outline Dimensions

PACKAGE CONTENT

Weight: 0.011 kg

ORD-CM4-ANTENNA x1

Masa po jedinici mere:	0.013 Kg / Kom
Kategorija:	mini PC
Brend:	Waveshare
Naziv:	ORD-CM4-ANTENNA
Šifra:	w18944
Uvoznik:	MALINA 314 doo, Beograd
Telefon:	061-640-2013
