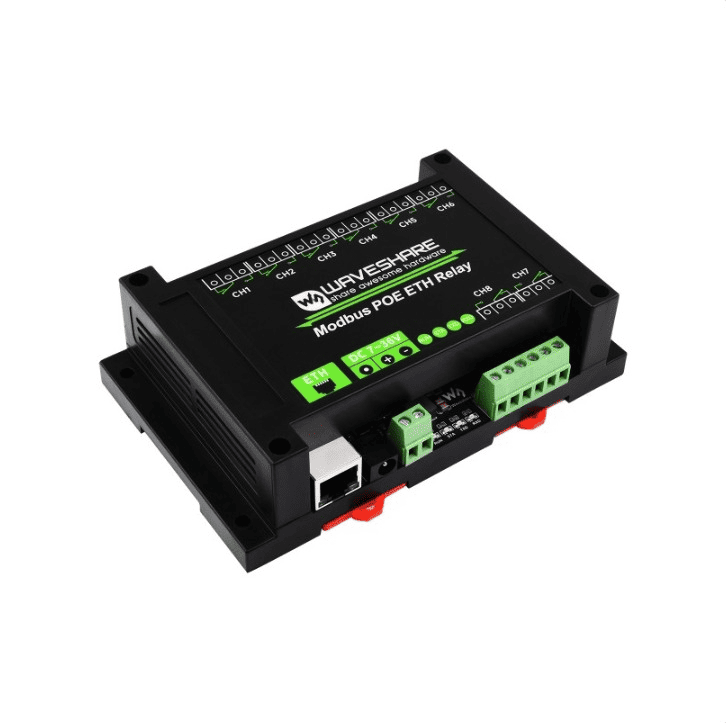

Modbus POE ETH Relay
Brand: Waveshare
Korisne informacije:
www.waveshare.com/wiki/Modbus_POE_ETH_Relay 8-Ch Ethernet Relay Module
Ethernet Port Communication, Modbus Protocol, PoE Power Supply
Features At A Glance
This product is an industrial 8-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.
The Modbus POE ETH Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.
- Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
- Supports DC 7~36V wide range power input and PoE power supply
- Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
- Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
- Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
- High-quality relay, contact rating: ≤10A 250VAC/30VDC
- Rail-mounted ABS case, easy to install, safe to use
- 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status
Specifications
POWER SUPPLY |
PoE port, DC 5.5*2.1 power port, or Screw terminal (7~36V) |
COMMUNICATION INTERFACE |
PoE port, IEEE 802.3af compliant |
RELAY CHANNELS |
8 |
CONTACT FORM |
1NO 1NC |
CONTACT RATING |
≤10A 250VAC/30VDC |
MODBUS PROTOCOL |
Modbus RTU Protocol or Modbus TCP Protocol |
LED INDICATORS |
RUN: Ethernet port indicator, blinking in 2-second cycles when Ethernet port normally working
STA: MCU indicator, blinking when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data |
Basic Function
Supports Sending Modbus RTU/TCP Protocol Commands Via Ethernet Port To Control Relay And Various Devices
Supports Multiple Communication Modes, Adopts Modbus Protocol
Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTT
Supports Modbus RTU Protocol/Modbus TCP Protocol
Multi Configuration Methods
Supports Software And Web Browser Configuration, Obtaining Dynamic IP Via DHCP, Connecting To Domain Name Server Via DNS Protocol

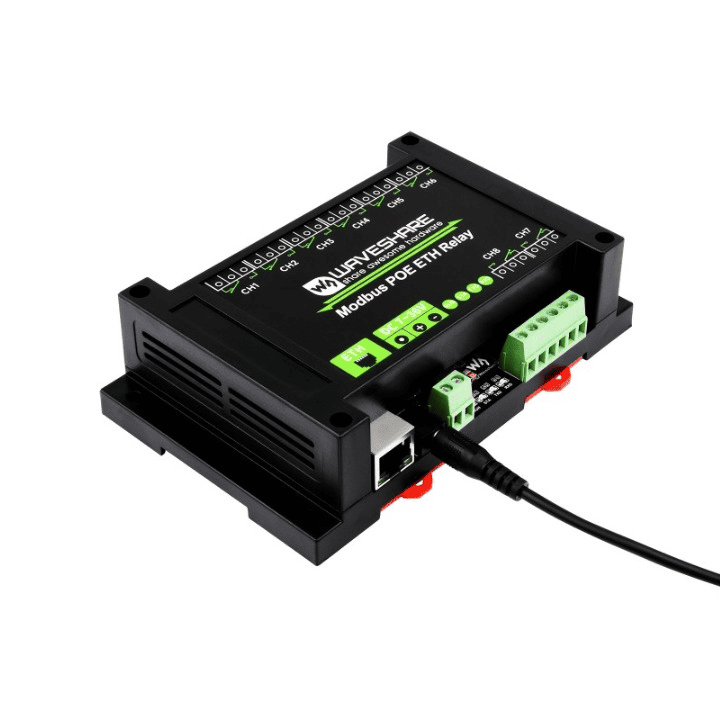

Multi Power Supply Options, Wide Range Power Input
DC Power Port: Directly Uses A Power Plug For Power Supply;
Screw Terminal: DC 7~36V Wide Range Power Input; PoE Port: IEEE 802.3af PoE Compliant

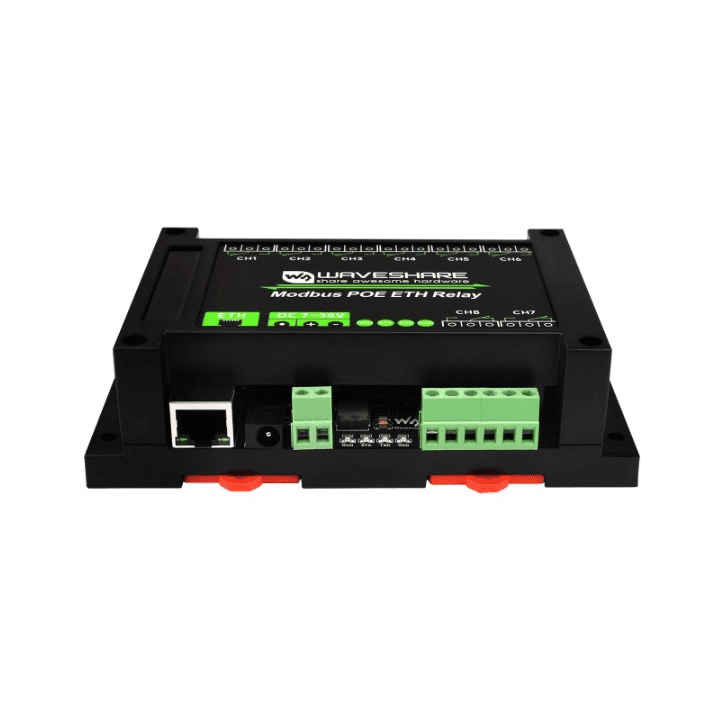

* The external power supply adapter is NOT included by default Interfaces & Indicators
With Multiple LED Indicators, Easy To Monitor The Operating Status

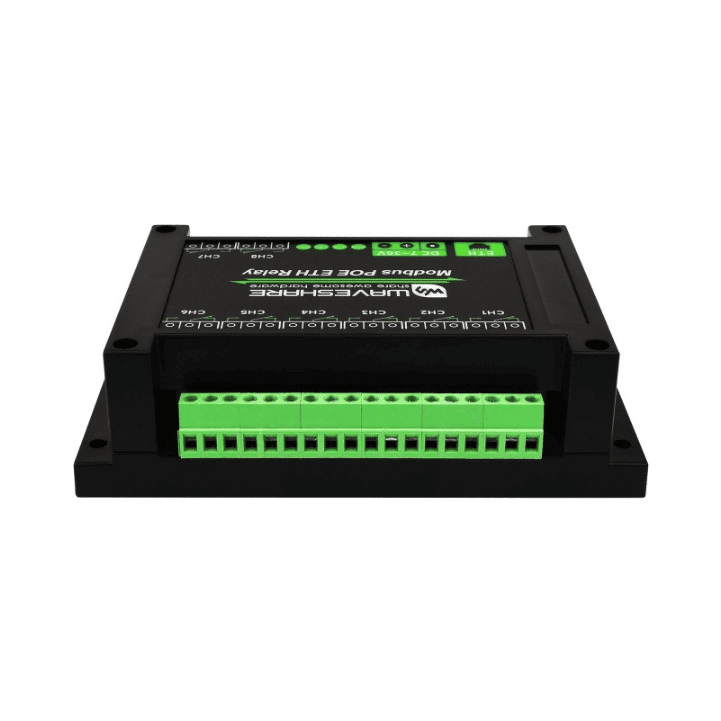

Relay Connection
Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC
Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC

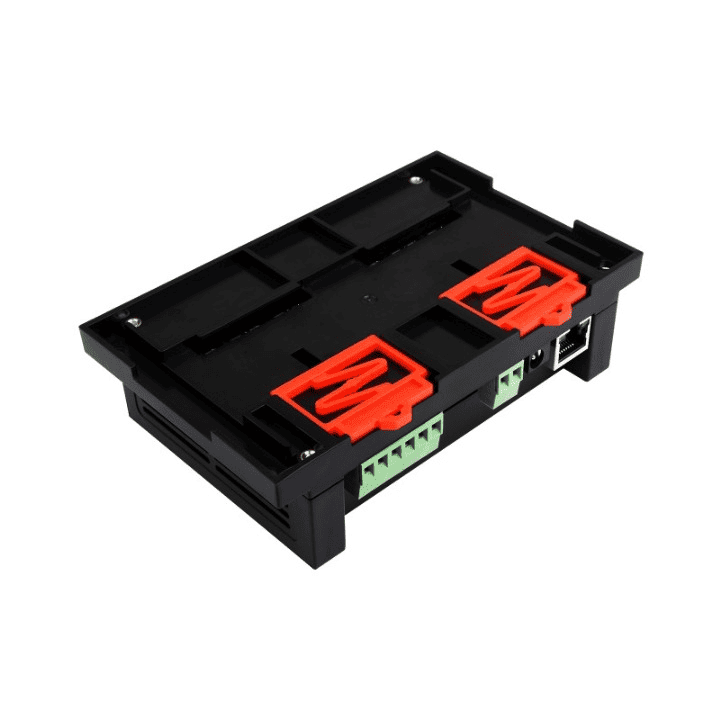

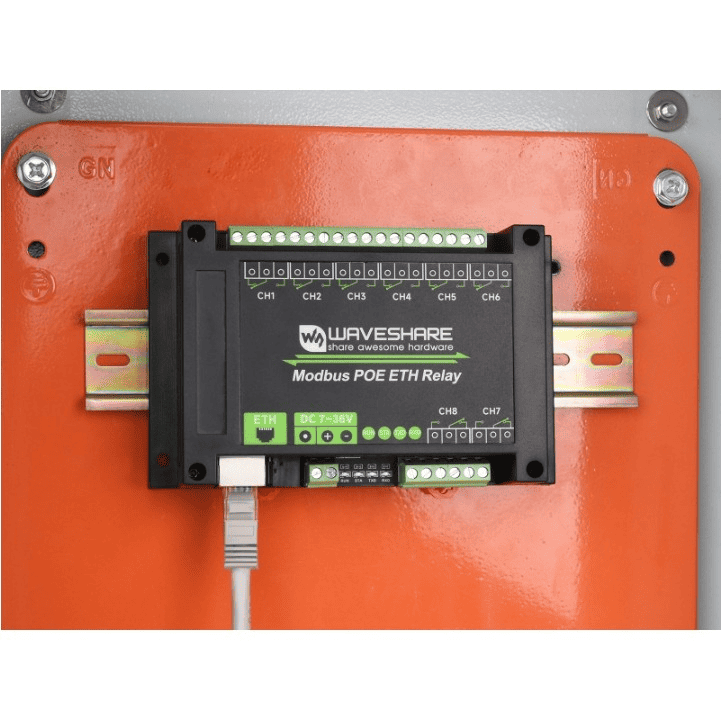

Rail-Mount Case Design
Rail-Mounted ABS Protective Enclosure, Easy To Install, Safe To Use
Application Scenarios
Smart Home Solutions
Control The On/Off Operation Of Household Devices Such As Air Conditioners, Routers, Lighting, Computers, And Door Curtain Motors, Etc.
Smart Agriculture Solutions
Control The On/Off Operation Of Agricultural Equipments Such As Solenoid Valves, Motors, Water Pumps, Etc.
Product Show
Outline Dimensions
- PACKAGE CONTENT
Weight: 0.251 kg
This product supports PoE for power supply and the external power supply adapter is NOT included by default
- Modbus POE ETH Relay x1
