Kućište za ovaj ekran je ovde:
https://malina314.com/proizvod/raspberry-pi-4-kuciste-za-oficijelni-displej-2/ SKU: 25269
Part Number: 7inch DSI LCD (B)
Brand: Waveshare
Wiki: http://www.waveshare.com/wiki/7inch_DSI_LCD_(B) 7" DSI Touch Display
7inch Capacitive Touch Display, DSI Interface, IPS Screen, 800×480, 5-Point Touch, With Case(Optional)
Posetite
Wiki zbog pomoći oko načina povezivanja, instalacije, primera i drugih korisnih informacija pre kupovine. Možete nas i konsultovati na email
office@malina314.com
Size |
Resolution |
Display Port |
Display Panel |
Viewing Angle |
 |
 |
 |
 |
 |
7" |
800x480 |
DSI |
IPS |
170° |
Touch Type |
Touch Points |
Touch Port |
Touch Panel |
Consumption |
 |
 |
 |
 |
 |
Capacitive |
5-Points |
I2C |
Toughened Glass |
Low Power |
Certification 1 |
Certification 2 |
Enslosure (Optional) |
|
|
 |
 |
 |
|
|
RoHS2.0 |
CE |
ABS |
|
|
█ Version Options
The Display Only
█ Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie / RoPieee, driver free
Supports Pi 5/4B/3B+/3A+/3B/2B/B+/A+, CM3/3+/4* (the case supports Pi 4B only, due to connector layout)
* some CM3/3+/4 base boards require extra adapter cable
VisionFive2
Supports Debian, single point touch, driver free
Core3566
Supports Debian / Ubuntu, 5-point touch, driver free
█ Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
for reference only, the above controller boards are NOT included
█ Display
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
High Quality Picture , Clear And Bright
New Generation IPS LCD Screen With More Natural Gradual Color Change
Display Color Is More Vivid
Better Visual Experience With More Color Details On The Screen
Capacitive 5-Point Touch
- up to 5-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
Adjustable Brightness Via Software
█ Interface Introduction
The Display Only
█ How To Install

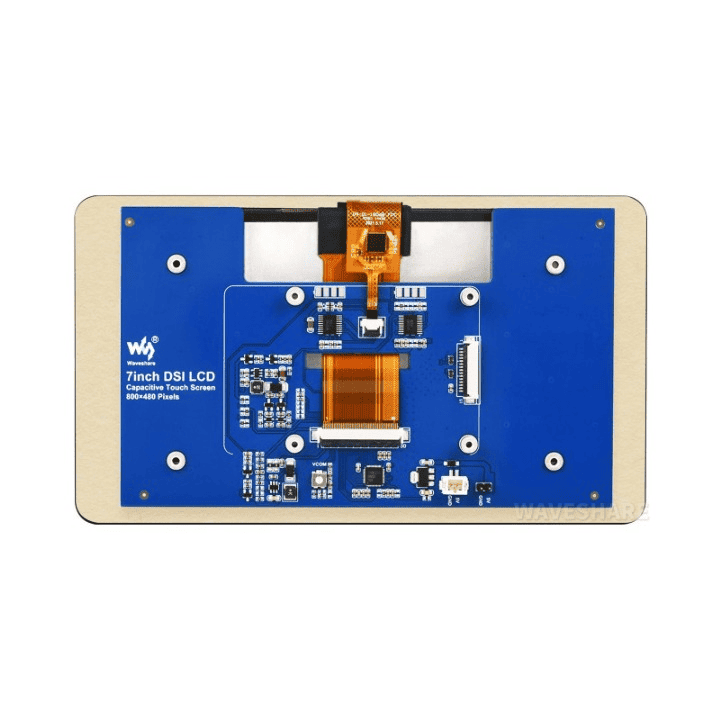

█ Product Show
The Display Only
█ Dimensions
-
█ Package Content
- 7inch DSI LCD (B) x1
- FPC 15PIN 1.0 pitch 50mm (opposite sides) x1
- 2PIN to PH2.0 2PIN cable 6cm x1
- FPC 15PIN 1.0 pitch 160mm (opposite sides) x1
- Screws pack x1
Weight: 0.246 kg
