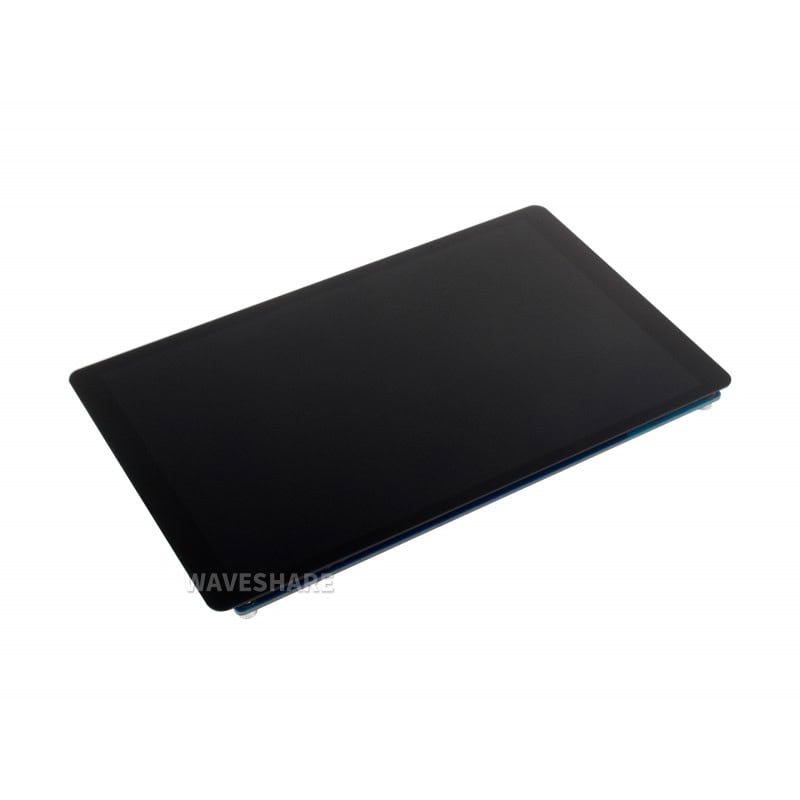

www.waveshare.com/wiki/7EP-CAPLCD 7inch Wide Color Gamut Capacitive Touch Display, 1280×800, Optical Bonding Toughened Glass Panel, HDMI Display Interface, IPS Display, 10-Point Touch
7″ Wide Color Gamut Touch Display High Resolution | Multi-Point Touch | Full Color
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Series
Supports Ubuntu, single point touch, driver free
Supports Jetson Nano / TX2 / Xavier NX / Orin series boards
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples Working with Raspberry Pi 5 / 4B
Working with Raspberry Pi 3B+
Working with Jetson Series Board
Working with PC
* for reference only, the above controller boards or hosts are NOT included
How to Install
Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example
Step 1:
Connect the cable ①, ④, and ⑤ to the corresponding positions as shown in the picture above.
Step 2:
Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable ① (select HDMI adapter ② or ③ according to your Raspberry Pi model) and then connect it to the Raspberry Pi Micro HDMI port.
Step 3:
Connect the cable ④ to the USB port of the Pi and connect the cable ⑤ to the GPIO 5V and GND pins as shown above.
Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.
* for reference only, the Raspberry Pi 5 is NOT included
Technology upgrade, better image quality 1280 × 800 resolution, provides clear image and vivid color display effect
IPS Display Panel Excellent Display Performance With 178° Wide Viewing Angle
Wide Color Gamut LED technology Wider Color Gamut, More Pure Chroma
Color Gamut Of This Display Is Up To NTSC 68%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid
Capacitive 10-Point Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, provides clear image, dustproof
Supports DDC/CI brightness adjustment Dual-Track Speaker Ferrite Hi-Fi Speaker, Stereo Sound Effect, Wider Sound Range, Better Sound Quality

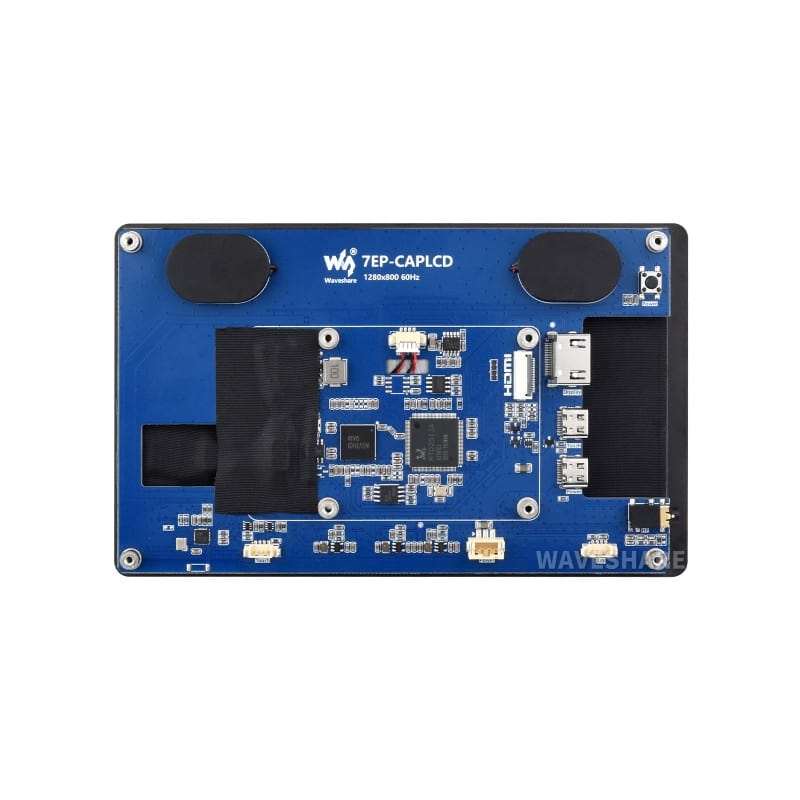

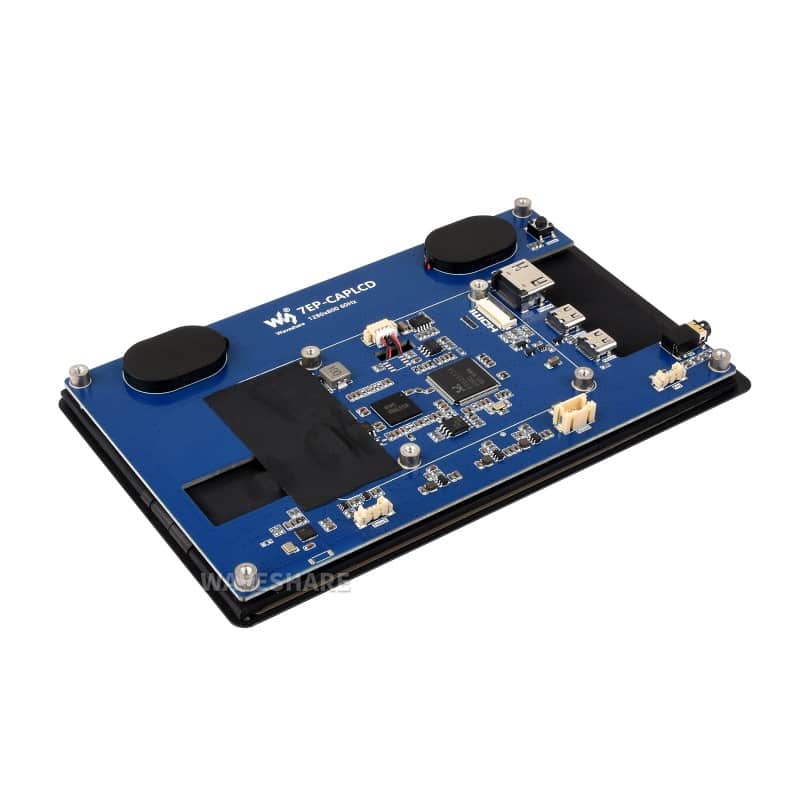

Interface Introduction
- Backlight ON/OFF
- HDMI Standard Interface
- HDMI FFC Connector
- Type-C Touch Port
- Type-C Power Supply Port
- 3.5mm Audio Jack
- Button Board Haeder
- 3PIN PH2.0 Power Supply Header
- 4PIN PH1.25 Touch Header
- M2.5 Mounting Standoff
Product Show
* for reference only, the Raspberry Pi is NOT included
Dimensions
Package content: Weight: 0.37 kg
Package Contains
- 7EP-CAPLCD ×1
- HDMI flat cable ~1m ×1
- USB Type-A to Type-C cable ~1m ×1
- Cleaning cloth x1
- Micro HDMI Adapter ×1
- HDMI Adapter ×1
- Button board ×1
- 3PIN cable ×1
- HDMI to Micro HDMI Adapter ×1
- FFC 20PIN cable 2pcs ×1
- 1.27H 4PIN cable ×1
- PH1.25 4PIN to Type-A cable ×1
- Screws pack x1
