Kućište za ovaj displej na linku 7inch DSI Capacitive Touch Display, 720×1280 Pixels, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process, With Case(Optional)
SKU:30323
Part No.:7-DSI-TOUCH-A
Brand:Waveshare
Korisne informacije: http://www.waveshare.com/wiki/7-DSI-TOUCH-A

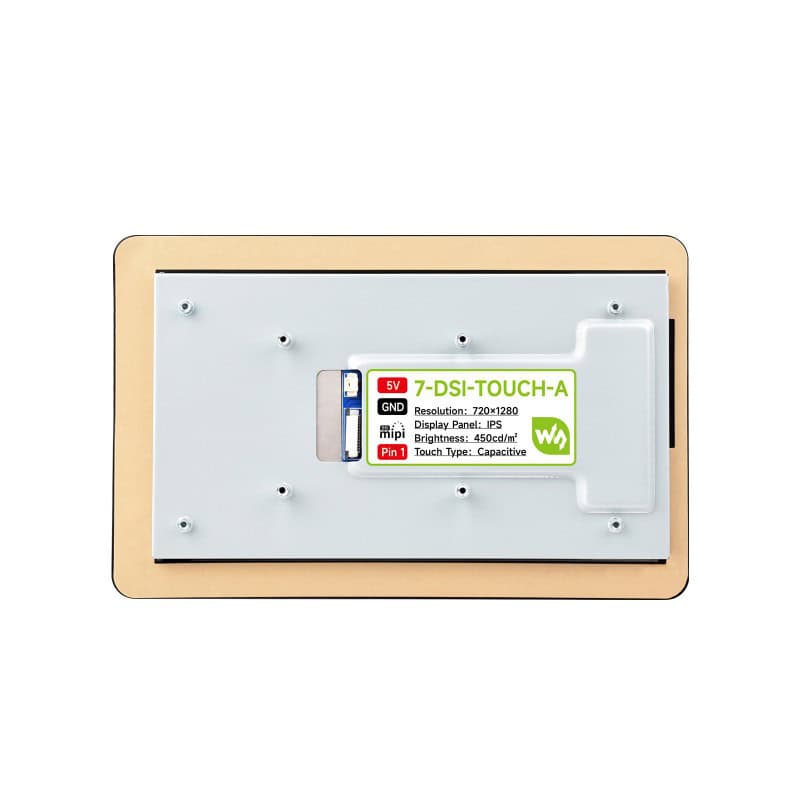

7″ DSI Capacitive Touch Display
The display orientation is portrait by default, 720×1280 resolution (H×V). Change the software config for landscape display.
7-DSI-TOUCH-A Standard version
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch
ESP32-P4
Supports LVGL GUI programs, up to 10-point touch
RK3506
Supports Buildroot / Ubuntu, etc. 10-point touch
RK3576
Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch
* (the case supports Raspberry Pi 5 only, due to connector layout)
Connection examples Working with Raspberry Pi 5
Please connect the FPC cable as shown above, and power the LCD through the GPIO 5V pin
Working with Raspberry Pi 4B
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
Working with ESP32-P4-NANO
Working with Luckfox Lyra
Working with Luckfox Omni3576
* for reference only, the above controller boards or hosts are NOT included
IPS Display Panel Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, provides clear image, dustproof
- Adopts anti-fingerprint panel coating, easy to clean
Supports backlight adjustment via software
Thinner and more space-saving Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 9.3mm
Interface definition
Outline dimensions Standard version
Package Content 7-DSI-TOUCH-A
- 7-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC 22PIN cable ~200mm (opposite sides) x2
- MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
- Standoffs x1
